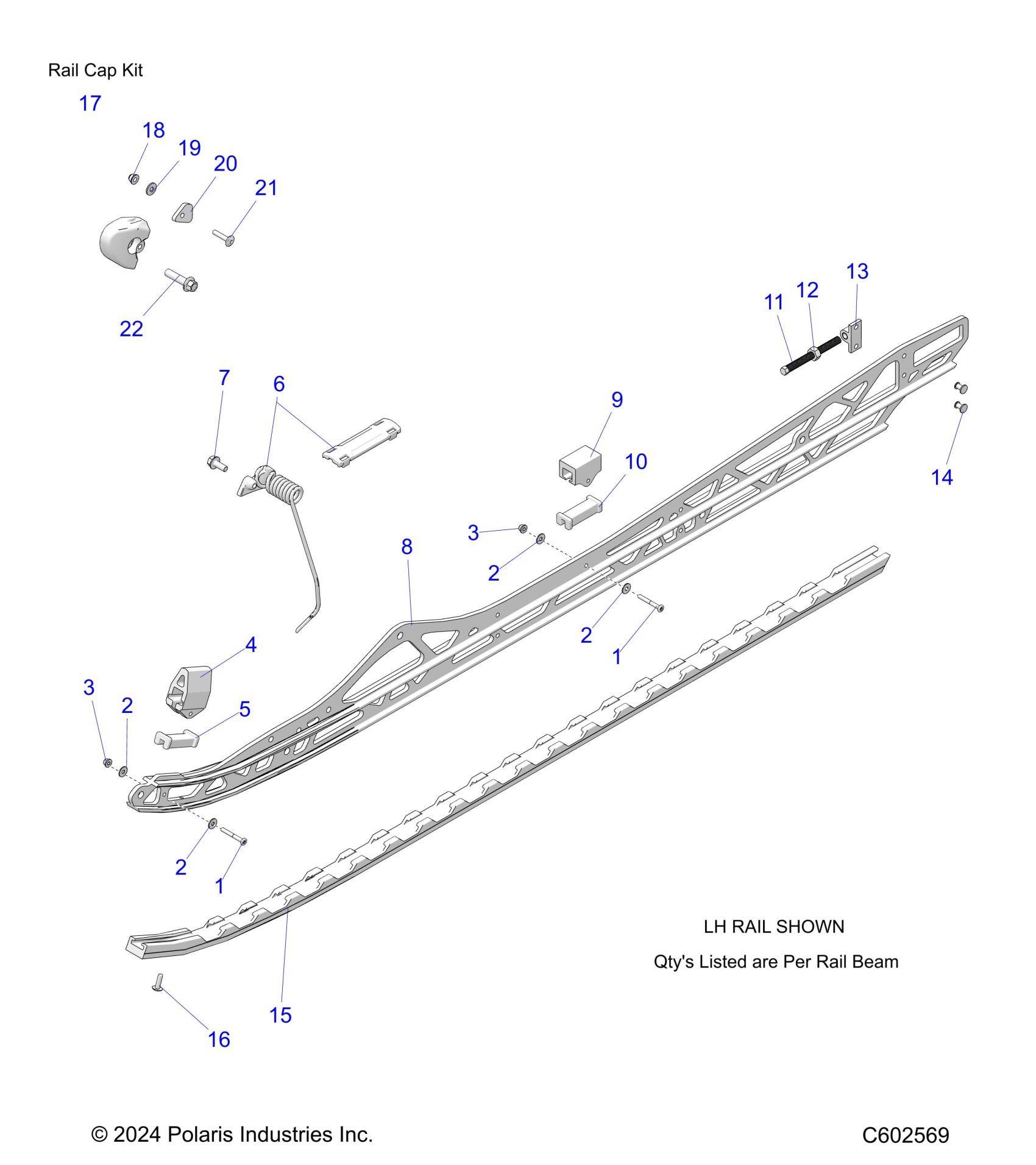

Polaris 850 RMK PRO 155 ALL OPTIONS (R01) - S24TFK8RS SUSPENSION, RAIL BEAM ASM, LH/RH - S24TFK8RS (C602569) Diagram

#

Description
Price

1

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.19

1

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.19

2

WASHER-M5.3X15X1.2 ZOD

7556470

$2.39

2

WASHER-M5.3X15X1.2 ZOD

7556470

$2.39

2

WASHER-M5.3X15X1.2 ZOD

7556470

$2.39

2

WASHER-M5.3X15X1.2 ZOD

7556470

$2.39

3

SCR-M5X0.8X40 8.8 TR/TX ZOD

7518951

$3.19

3

SCR-M5X0.8X40 8.8 TR/TX ZOD

7518951

$3.19

4

BUMPER, HOLLOW, TALL

5415327

$19.99

5

LINER, BUMPER,LOW PROFILE

5451787

$6.99

6

K-SCRATCHER RMK [PAIR] INCL. SPRINGS, MOUNTS, CAPS, AND SCREWS

2890644

$109.99

7

SCREW-HXFL-M8X1.25X20 8.8 ZOD P3

7519133

$1.59

8

ASM-RAIL 155 SVC LH NAT [COLOR OPTION][INCL. 13,14]

1545011-309

$604.99

8

ASM-RAIL 155 SVC RH NAT [COLOR OPTION][INCL. 13,14]

1545012-309

$604.99

8

ASM-RAIL 155 SVC LH BLK [COLOR OPTION][INCL. 13,14]

1545011-067

$664.99

8

ASM-RAIL 155 SVC RH BLK [COLOR OPTION][INCL. 13,14]

1545012-067

Unavailable

8

ASM-RAIL 155 SVC LH RED [COLOR OPTION][INCL. 13,14]

1545011-293

$664.99

8

ASM-RAIL 155 SVC RH RED [COLOR OPTION][INCL. 13,14]

1545012-293

$664.99

8

ASM-RAIL 155 SVC LH ISB [COLOR OPTION][INCL. 13,14]

1545011-737

$664.99

8

ASM-RAIL 155 SVC RH ISB [COLOR OPTION][INCL. 13,14]

1545012-737

$664.99

9

BUMPER, JOUNCE, REAR, COIL-OVER

5522056

$15.99

10

LINER-BUMPER

5432946

$9.70

11

SCR-HX-M10X1.5X100,8.8,ZOD

7520083

$12.79

12

NUT-HEX-M10X1.5 8 ZOD

7547707

$4.99

13

BLOCK, IDLER BOLT ADJUSTABLE, METRIC

5139435

$15.99

14

RIVET

7621501

$2.39

15

HYFAX-155 LWT BLK [1 PER BEAM]

5526512-070

$44.51

16

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$3.19

17

K-SVC, RMK RAIL CAP INCL. RAIL CAP,18-22, INSTRUCTIONS

2212349

$35.19

18

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

19

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

20

SPACER-RAIL

-------

Unavailable

21

SCR-TXTH-M6X1.0X30,8.8,ZPB

7520133

$3.19

22

SCR-HXFL-M10X1.5X40 10.9ZODP80

7519216

$4.79
