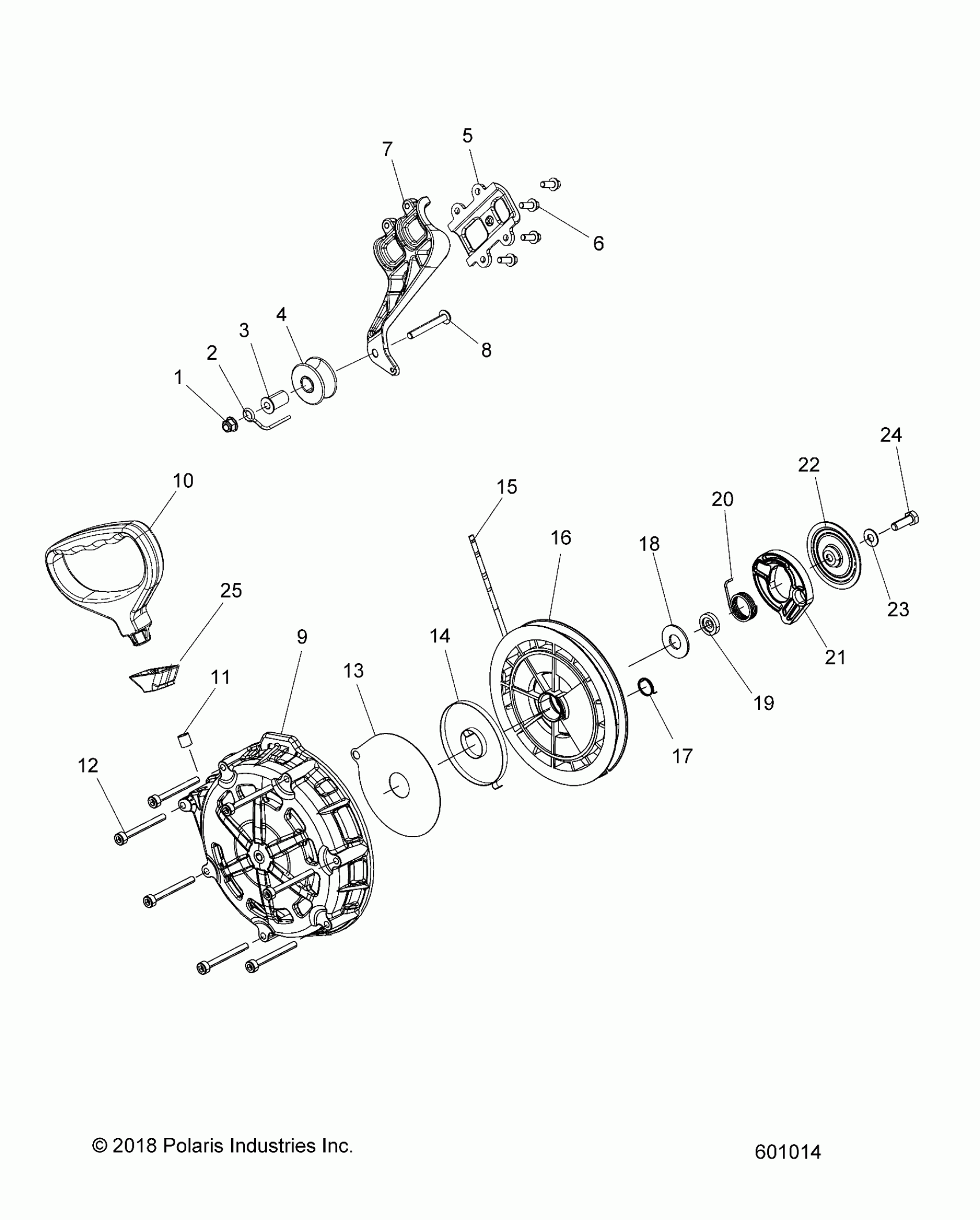

Polaris 850 RMK PRO 155 2.75" / 155 3" ALL OPTIONS (R02) - S22EFA8RS/EFB8RS ENGINE, RECOIL STARTER - S22EFA8RS/EFB8RS ALL OPTIONS (601014) Diagram

#

Description
Price

1

NUT-M8X1.25,FLG,NYLOC-OLIVE D

7547454

Unavailable

2

GUIDE-ROPE

5341187

$6.46

3

BUSHING-ROLLER

5142311

$8.08

4

ROLLER, RECOIL

5435390

$16.44

5

SUPPORT-PULLEY RMK MACH

5142306

$13.75

6

SCREW-M6X1.0X16.0MM HEX-FL-Y/D

7518637

$3.99

7

SUPPORT-PULLEY TUBE RMK MACH

5142307

$36.41

8

SCR-TXTH-M8X1.25X60,ZB

7520367

$4.79

9

ASM-RECOIL,PC [INCL. HOUSING,11,13,14,16-24]

1208703

$214.51

10

HANDLE, RECOIL, BLACK

5435154-070

$8.89

11

BUSHING, ROPE SLIDE

3083107

Unavailable

12

SCR-SOCFL-M6X1.0X60

7520586

$3.19

13

PLATE-SLIDE

3023597

$12.94

14

SPRING-SPIRAL,RECOIL

3023299

$53.32

15

ROPE, STARTER

3040169

$24.27

16

REEL-RECOIL

3023303

$76.89

17

SPRING-RETURN, RECOIL

3023304

$3.22

18

WASHER-RECOIL

7557025

$3.19

19

SPACER-RECOIL

3023302

$12.94

20

SPRING-FRICTION,RECOIL

3023300

$4.84

21

RATCHET-RECOIL

5453993

$6.46

22

PLATE, FRICTION

3021650

$28.32

23

WASHER-FLAT

7557158

$4.99

24

SCREW-RECOIL

7527929

$4.79

25

ISOLATOR, RECOIL HANDLE

5414288

$4.84
