- 850 RMK PRO 155 2.75" / 155 3" ALL OPTIONS (R02) - S22EFA8RS/EFB8RS
CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S22EFA8RS/EFB8RS ALL OPTIONS (601006C)

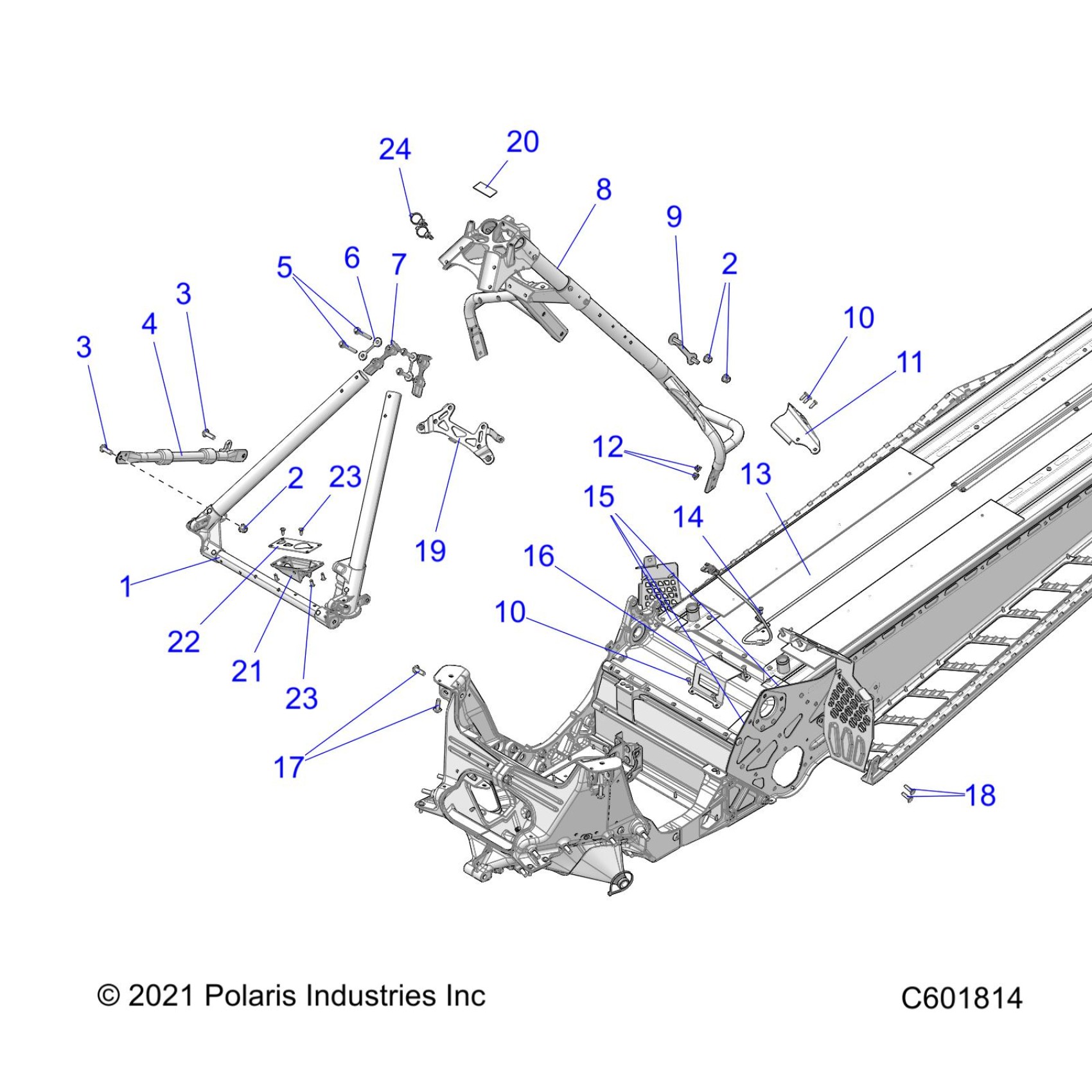

Polaris 850 RMK PRO 155 2.75" / 155 3" ALL OPTIONS (R02) - S22EFA8RS/EFB8RS CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S22EFA8RS/EFB8RS ALL OPTIONS (601006C) Diagram
#
Description
Price
1
ASM-FRAME TUBE FRONT RMK ALUM
1023851
$234.75
2
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
2
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
3
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
3
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
4
WELD-CROSS BRACE BLK
1026865
$74.99
5
SCR-HXFL-M6X1.0X55 10.9 ZODP30
7520721
$3.99
6
SHIM, TUBE
5633083
$6.99
7
SPACER-TUBE CAST 27.00 DIA
5633122
$9.59
8
ASM., FRAME, TUBULAR, REAR, RMK
1023201
$579.99
9
ASM., STUD PLATE
1019337
$12.99
10
RIVET-3/16-.090-.290
7661637
$1.49
10
RIVET-3/16-.090-.290
7661637
$1.49
11
BRKT., SUPPORT, TOE STOP
5262012
$13.75
12
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$3.99
13
ASM-CHASSIS 850 155 QD BSC NAT [QUICK DRIVE COLOR OPTION][INCL. BULKHEAD AND QD BACKER PLATE]
1025678-309
$2,059.99
13
ASM-TUNNEL 850 155 NAT [COLOR OPTION]
1023158-309
$1,329.99
13
ASM-CHASSIS 850 155 QD BSC BLK [QUICK DRIVE COLOR OPTION][INCL. BULKHEAD AND QD BACKER PLATE]
1025678-067
$2,059.99
13
ASM-TUNNEL 850 155 GLBLK [COLOR OPTION]
1023158-067
$1,329.99
13
ASM-CHASSIS 850 155 QD IRED [QUICK DRIVE COLOR OPTION][INCL. BULKHEAD AND QD BACKER PLATE]
1025678-293
$2,059.99
13
ASM-TUNNEL 850 155 IRED [COLOR OPTION]
1023158-293
$1,329.99
13
ASM-CHASSIS 850 155 QD STHGY [QUICK DRIVE COLOR OPTION][INCL. BULKHEAD AND QD BACKER PLATE]
1025678-804
$2,059.99
13
ASM-TUNNEL 850 155 STHGRAY [COLOR OPTION]
1023158-804
Unavailable
13
ASM-CHASSIS 850 155 QD POLRBLU [QUICK DRIVE COLOR OPTION][INCL. BULKHEAD AND QD BACKER PLATE]
1025678-751
$2,059.99
13
ASM-TUNNEL 850 155 BSC POLBLUE [COLOR OPTION]
1023158-751
$1,329.99
13
ASM-CHASSIS 850 155 QD TITNMET [QUICK DRIVE COLOR OPTION][INCL. BULKHEAD AND QD BACKER PLATE]
1025678-705
$2,059.99
13
ASM-TUNNEL 850 155 TITNMET [COLOR OPTION]
1023158-705
Unavailable
14
CLAMP-NYLON, CABLE, 1/4"
7080539
$4.79
14
RIVET
7662251
$2.49
15
PAD
5814353
$9.70
16
BRKT., AIR BOX SUPPPORT
5258618
$12.99
17
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$6.39
18
SCR-RHCAR-M6X1.0X22 8.8 ZPC
7519338
$3.19
19
ASM-REGULATOR MOUNT RMK
1023231
$32.37
20
PAD-51X22
5814828
$2.41
21
MOUNT-LOAD CENTER
5454789
$9.70
22
BRKT-LOAD CENTER
5265340
$4.84
23
RIVET-4.8MM DIA-1.5-6.0 GRIP
7661973
$1.49
23
RIVET-4.8MM DIA-1.5-6.0 GRIP
7661973
$1.49
24
CLIP FIR-TREE,DIA6-33MM
7081496
$4.79
