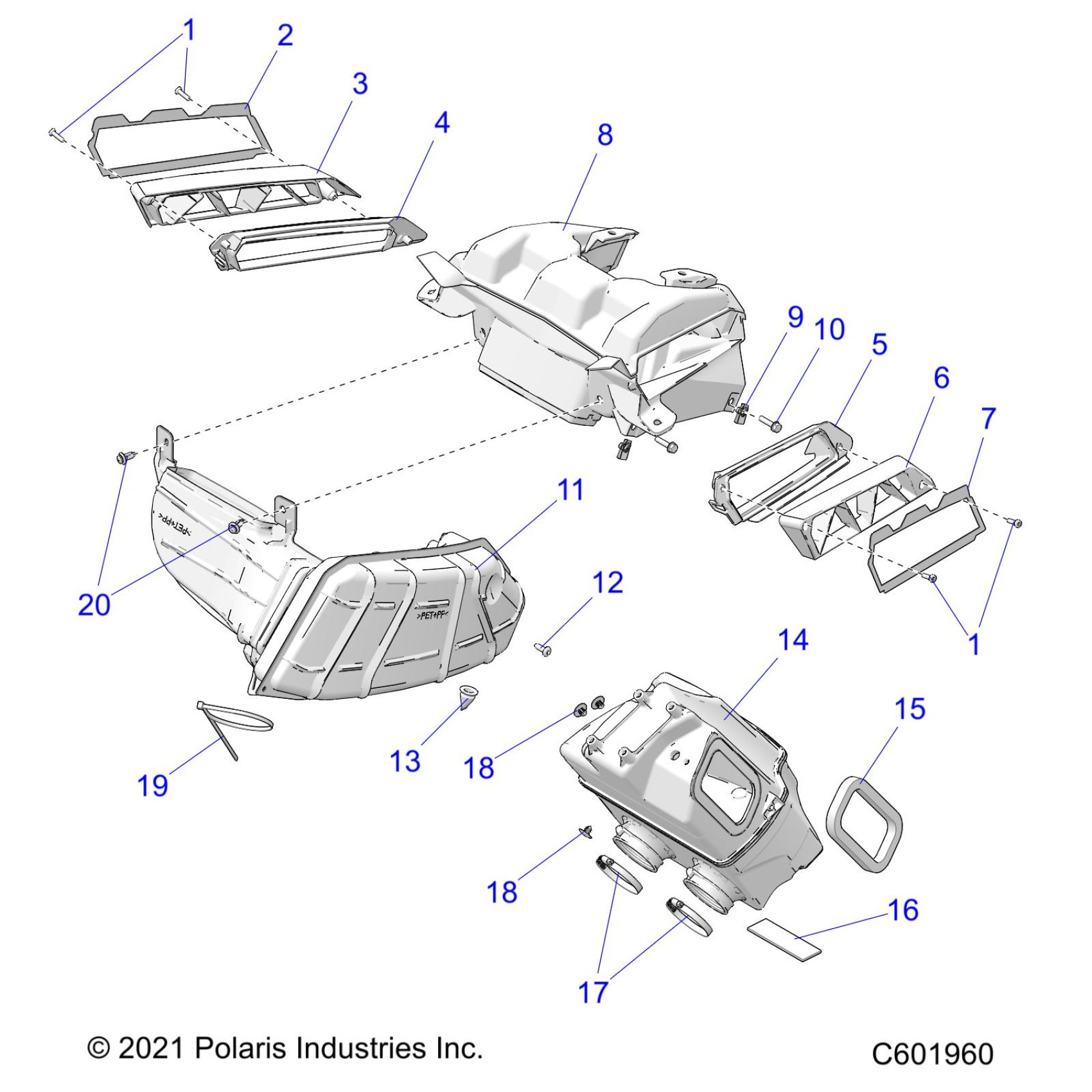

Polaris 850 RMK KHAOS MATRYX SLASH 165/163 (R02) - S22TGG8RS/TGY8RS ENGINE, AIR INTAKE SYSTEM - S22TGG8RS/TGY8RS ALL OPTIONS (C601960C) Diagram

#

Description
Price

1

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

1

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

2

SCREEN-INTAKE RH

5814971

$27.99

3

VENT-INTAKE RH

5456411

$32.37

4

MOUNT-INTAKE RH

5458757

$13.75

5

MOUNT-INTAKE LH

5458756

$13.75

6

VENT-INTAKE LH

5456410

$32.37

7

SCREEN-INTAKE LH

5814970

$27.99

8

ASM-INTAKE

1206200

$145.22

9

CLIP-"U",M6.0X1.0

7547366

$5.99

10

SCR-M6X1.0X25-HX/FL-Y/D

7516823

$3.19

11

ASM-TUBE INTAKE

1206198

$116.17

12

SCR-TX TRUSS-#14X3/4,HI/LO ZBK

7519045

$3.19

13

PLUG-DRAIN

5414472

$5.59

14

ASM-AIR SILENCER

1208640

$121.02

15

FOAM, INTAKE, LOWER

5813962

$12.94

16

FOAM-SEAL,REAR COOLER

5810947

$4.03

17

CLAMP, NARROW BAND

7080909

$7.99

18

CLIP-DART (NYLON)

7670067

$3.99

18

CLIP-DART (NYLON)

7670067

$3.99

19

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

20

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49
