- 850 RMK KHAOS MATRYX SLASH 165/163 (R02) - S22TGG8RS/TGY8RS
CHASSIS, CLUTCH GUARD, FOOTRESTS, AND RUNNING BOARDS - S22TGG8RS/TGY8RS ALL OPTIONS (601008C)

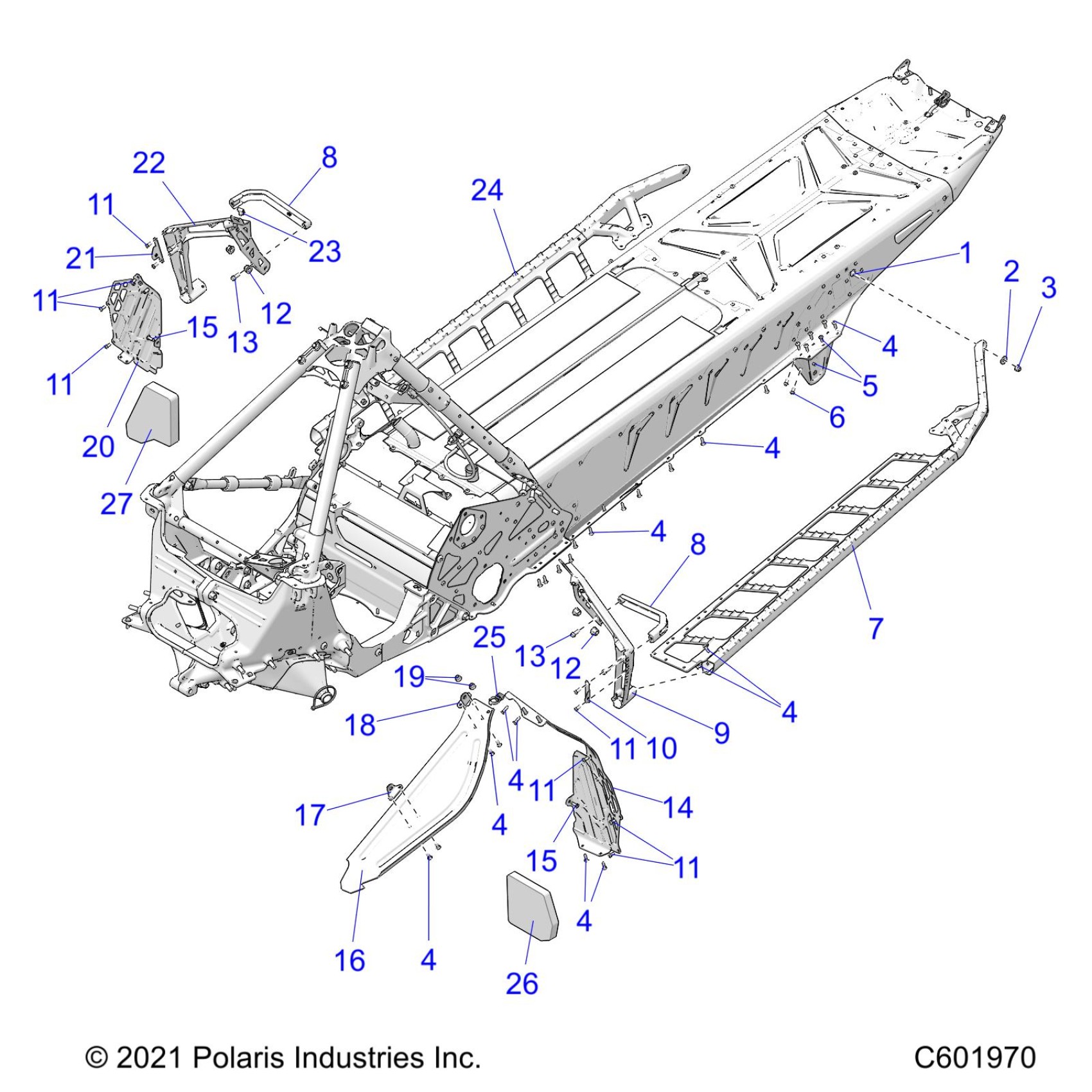

Polaris 850 RMK KHAOS MATRYX SLASH 165/163 (R02) - S22TGG8RS/TGY8RS CHASSIS, CLUTCH GUARD, FOOTRESTS, AND RUNNING BOARDS - S22TGG8RS/TGY8RS ALL OPTIONS (601008C) Diagram
#
1
SCR-RHCARM6X1.0X20 8.8 ZOD
7518994
$3.22
2
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
3
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$3.99
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
5
RIVET-POP 3/16(.126-.250)-ST-B
7661973
$1.49
6
SCR-M5X.8X10 TX BTN PIN-IN HD
7518457
Unavailable
7
ASM-RUNNINGBOARD LH NATURAL COLOR OPTION
1026039
$279.99
7
ASM-RUNNINGBOARD LH GLBLK BLACK COLOR OPTION
1026039-067
$309.99
7
ASM-RUNNINGBOARD LH ORG ORANGE COLOR OPTION
1026039-647
$309.99
7
ASM-RUNNINGBOARD LH SGRY STEALTH GRAY COLOR OPTION
1026039-804
$309.99
8
CLIP-TOE MACH NATURAL COLOR OPTION
5143789
$55.99
8
CLIP-TOE MACH, BLACK BLACK COLOR OPTION
5143789-067
$55.99
8
CLIP-TOE MACH, ORANGE ORANGE COLOR OPTION
5143789-647
$55.99
8
CLIP-TOE MACH, STLTH GRAY STEALTH GRAY COLOR OPTION
5143789-804
$59.99
8
CLIP-TOE MACH NATURAL COLOR OPTION
5143789
$55.99
8
CLIP-TOE MACH, BLACK BLACK COLOR OPTION
5143789-067
$55.99
8
CLIP-TOE MACH, ORANGE ORANGE COLOR OPTION
5143789-647
$55.99
8
CLIP-TOE MACH, STLTH GRAY STEALTH GRAY COLOR OPTION
5143789-804
$59.99
9
SUPPORT-FOOTREST MACH LH NATURAL COLOR OPTION
5143787
$52.60
9
SUPPORT-FOOTREST MACH LH GBLK BLACK COLOR OPTION
5143787-067
$119.99
9
SUPPORT-FOOTREST MACH LH ORGB ORANGE COLOR OPTION
5143787-647
$119.99
9
SUPPORT-FOOTREST MACH LH SGRY STEALTH GRAY COLOR OPTiON
5143787-804
$119.99
10
ASM-FENDER MOUNT LH
1027422
$59.99
11
SCR-TXBH-M5x0.8x12 10.9ZPC P30
7520967
$3.99
11
SCR-TXBH-M5x0.8x12 10.9ZPC P30
7520967
$3.99
11
SCR-TXBH-M5x0.8x12 10.9ZPC P30
7520967
$3.99
11
SCR-TXBH-M5x0.8x12 10.9ZPC P30
7520967
$3.99
11
SCR-TXBH-M5x0.8x12 10.9ZPC P30
7520967
$3.99
11
SCR-TXBH-M5x0.8x12 10.9ZPC P30
7520967
$3.99
12
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
12
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
13
SCR-HXFL,M6X1.0X16 8.8ZY3DL204
7519329
$3.99
14
ASM-TOE STOP,LH
1026558
$64.75
15
RIVET-POP 3/16(.251-.375)-ST-Z
7621402
$1.49
15
RIVET-POP 3/16(.251-.375)-ST-Z
7621402
$1.49
16
ASM-GUARD CLUTCH [INCL. 4,17,18]
1025167
$82.29
17
ASM-BRKT OIL BOTTLE FRONT
1025803
Unavailable
18
ASM-BRKT OIL BOTTLE REAR
1025804
Unavailable
19
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$3.99
20
ASM-TOE STOP RH
1026559
$64.75
21
ASM-FENDER MOUNT RH
1027423
$59.99
22
SUPPORT-FOOTREST MACH RH NATURAL COLOR OPTION
5143788
$52.60
22
SUPPORT-FOOTREST MACH RH GBLK BLACK COLOR OPTION
5143788-067
$119.99
22
SUPPORT-FOOTREST MACH RH ORGB ORANGE COLOR OPTION
5143788-647
$119.99
22
SUPPORT-FOOTREST MACH RH SGRY STEALTH GRAY COLOR OPTION
5143788-804
$119.99
23
CLIP-"U",M6.0X1.0
7547366
$5.99
24
ASM-RUNNINGBOARD RH NATURAL COLOR OPTION
1026040
$279.99
24
ASM-RUNNINGBOARD RH GLBLK BLACK COLOR OPTION
1026040-067
$289.99
24
ASM-RUNNINGBOARD RH ORG ORANGE COLOR OPTION
1026040-647
$309.99
24
ASM-RUNNINGBOARD RH SGRY STEALTH GRAY COLOR OPTION
1026040-804
$309.99
25
CLIP-EDGE,1-3MM THICKNESS
7082428
$4.79
26
FOAM-TOE STOP LH
5815240
$5.65
27
FOAM-TOE STOP RH
5815242
$5.65
