- 850 RMK KHAOS 163/165 ALL OPTIONS (R02) - S22EGE8RS/D8RS
CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S22EGE8RS/D8RS ALL OPTIONS (C601851)

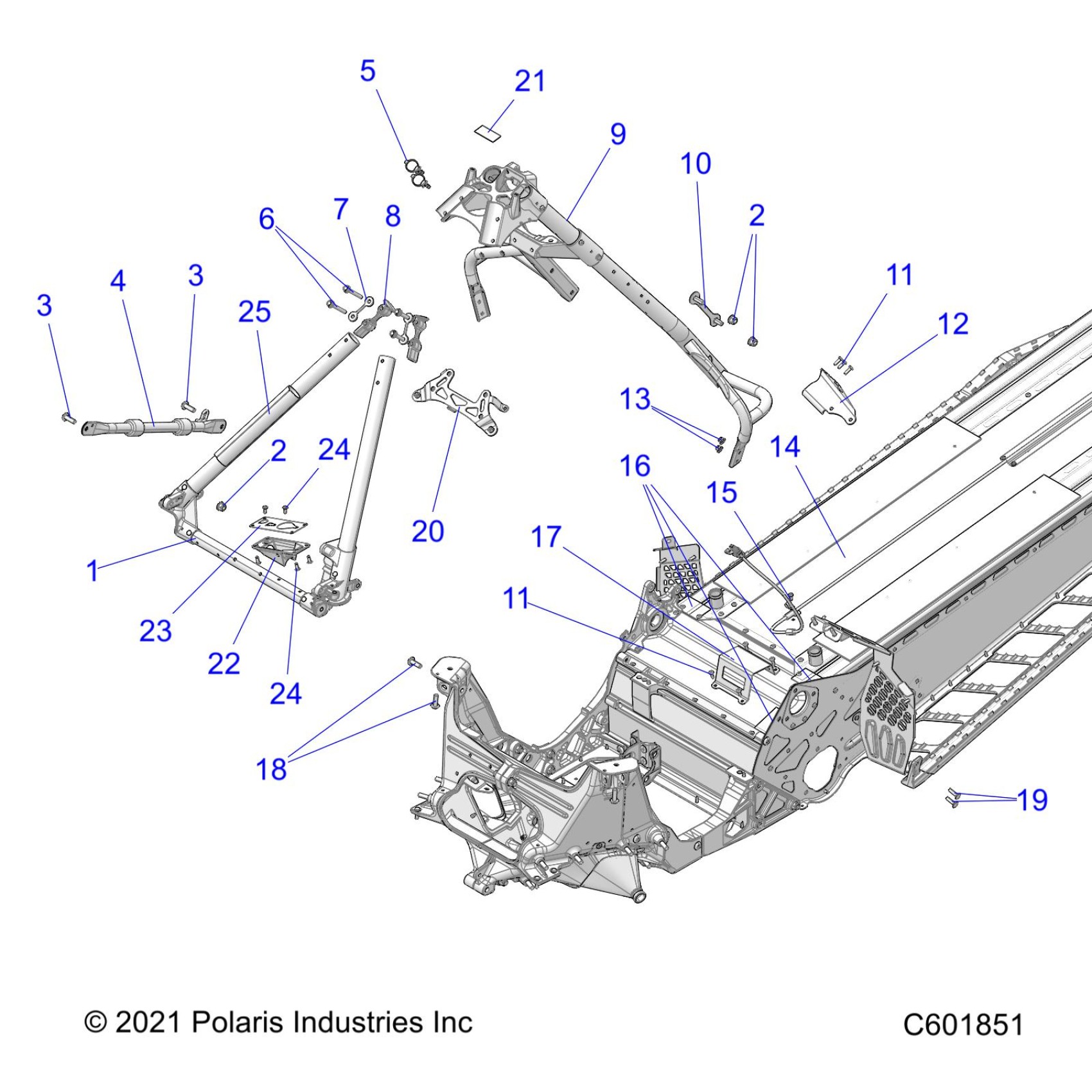

Polaris 850 RMK KHAOS 163/165 ALL OPTIONS (R02) - S22EGE8RS/D8RS CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S22EGE8RS/D8RS ALL OPTIONS (C601851) Diagram
#
Description
Price
1
ASM., FRAME, TUBE, FRONT RMK CF
1023850
$419.99
2
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
3
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
3
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
4
WELD-CROSS BRACE BLK
1026865
$74.99
5
CLIP FIR-TREE,DIA6-33MM
7081496
$4.79
6
SCR-HXFL-M6X1.0X55 10.9 ZODP30
7520721
$3.99
7
SHIM, TUBE
5633083
$6.99
8
SPACER, TUBE CAST
5632923
$9.99
9
ASM., FRAME, TUBULAR, REAR, RMK
1023201
$579.99
10
ASM., STUD PLATE
1019337
$12.99
11
RIVET-3/16-.090-.290
7661637
$1.49
11
RIVET-3/16-.090-.290
7661637
$1.49
12
BRKT., SUPPORT, TOE STOP
5262012
$13.75
12
BRKT., SUPPORT, TOE STOP
5262012
$13.75
13
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$3.99
14
ASM-CHASSIS 850 163 QD BSC NAT [COLOR OPTION][INCL. BULKHEAD AND QD BACKER PLATE]
1025679-309
$2,059.99
14
ASM-TUNNEL 850 163 NAT [COLOR OPTION]
1023313-309
Unavailable
14
ASM-CHASSIS 850 163 QD BSC BLK [COLOR OPTION][INCL. BULKHEAD AND QD BACKER PLATE]
1025679-067
$2,059.99
14
ASM-TUNNEL 850 163 GLBLK [COLOR OPTION]
1023313-067
$2,059.99
14
ASM-CHASS850 163QD BSC PLUMCRZ [COLOR OPTION][INCL. BULKHEAD AND QD BACKER PLATE]
1025679-784
$2,059.99
14
ASM-TUNNEL 850 163 BSC PLMCZY [COLOR OPTION]
1023313-784
Unavailable
14
ASM-CHASSIS 850 163 QD BSC SGY [COLOR OPTION][INCL. BULKHEAD AND QD BACKER PLATE]
1025679-804
$2,059.99
14
ASM-TUNNEL 850 163 STHGRY [COLOR OPTION]
1023313-804
Unavailable
14
ASM-CHASSIS 850 163 QD BSC ORG [COLOR OPTION][INCL. BULKHEAD AND QD BACKER PLATE]
1025679-647
$2,059.99
14
ASM-TUNNEL 850 163 ORGBRST [COLOR OPTION]
1023313-647
Unavailable
15
CLAMP-NYLON, CABLE, 1/4"
7080539
$4.79
15
RIVET
7662251
$2.49
16
PAD
5814353
$9.70
17
BRKT., AIR BOX SUPPPORT
5258618
$12.99
18
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$6.39
19
SCR-RHCAR-M6X1.0X22 8.8 ZPC
7519338
$3.19
20
ASM-REGULATOR MOUNT RMK
1023231
$32.37
21
PAD-51X22
5814828
$2.41
22
MOUNT-LOAD CENTER
5454789
$9.70
23
BRKT-LOAD CENTER
5265340
$4.84
24
RIVET-4.8MM DIA-1.5-6.0 GRIP
7661973
$1.49
24
RIVET-4.8MM DIA-1.5-6.0 GRIP
7661973
$1.49
25
FOIL-100MM X 200MM
5814124
$8.99
