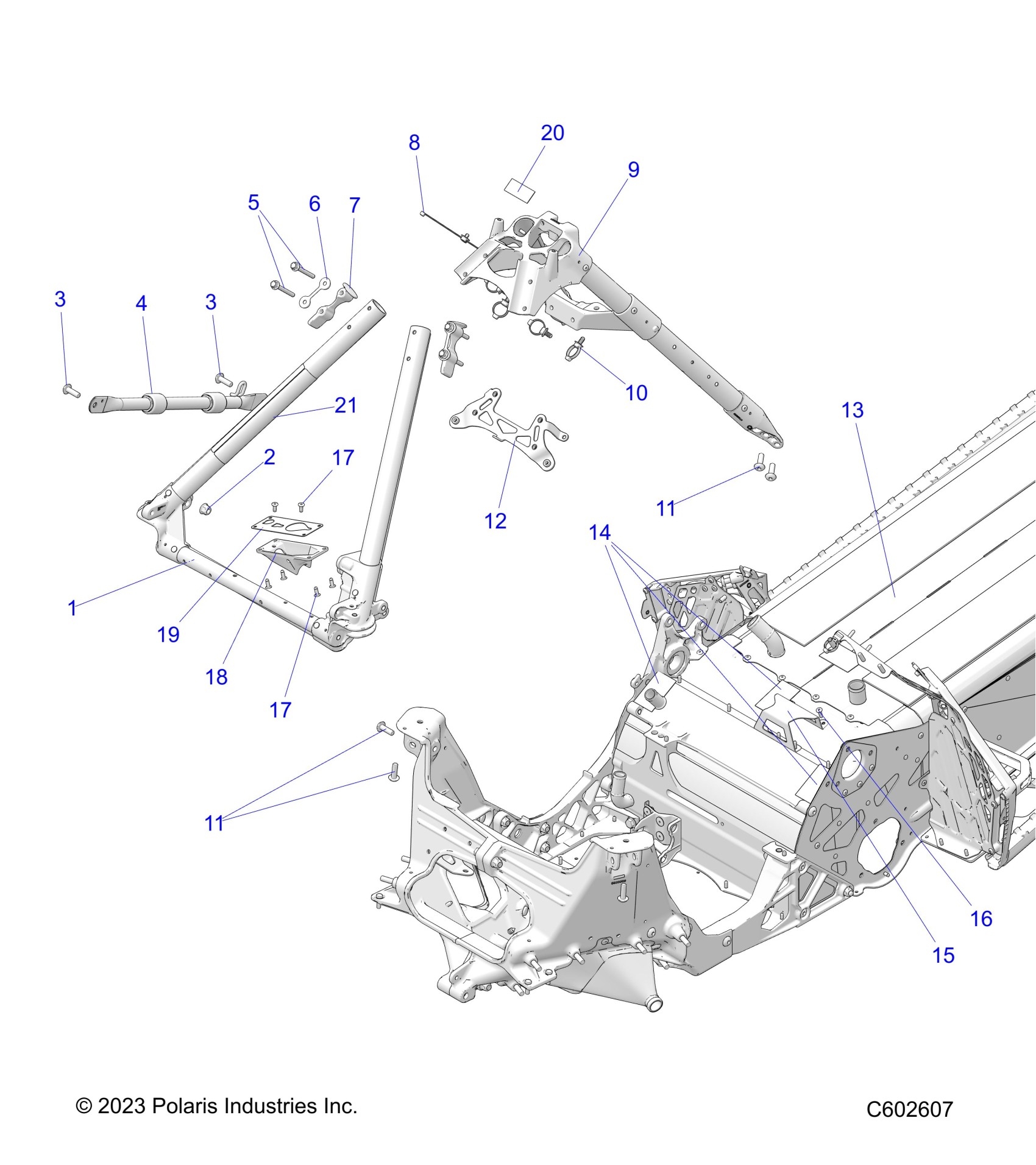

Polaris 850 PRO RMK 165 ALL OPTIONS (R01) - S26TGM8RS CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S26TGM8RS (C602607) Diagram

ASM., FRAME, TUBE, FRONT RMK CF INCL. FOIL

1023850

$419.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

WELD-CROSS BRACE RH

1027787

$74.99

SCR-HXFL-M6X1.0X55 10.9 ZODP30

7520721

$3.99

SHIM, TUBE

5633083

$6.99

SPACER, TUBE CAST

5632923

$9.99

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

ASM-FRAME TUBULAR REAR RMK

1026175

$584.99

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

ASM-REGULATOR MOUNT RMK

1023231

$32.37

ASM-CHASSIS 165 BLK [INCL. BULKHEAD AND QD BACKER PLATE]

1028923-067

$2,059.99

PAD

5814353

$9.70

BRKT-AIRBOX SUPPORT

5271212

$11.32

RIVET-3/16-.090-.290

7661637

$1.49

RIVET-POP 3/16(.126-.250)-ST-B

7661973

$1.49

RIVET-POP 3/16(.126-.250)-ST-B

7661973

$1.49

MOUNT-LOAD CENTER

5454789

$9.70

BRKT-LOAD CENTER

5265340

$4.84

PAD-51X22

5814828

$2.41

FOIL-100MM X 200MM

5814124

$8.99
