- 850 INDY XC 137 ALL OPTIONS (R01) - S24TDP8RS
CHASSIS, CLUTCH GUARD, FOOTRESTS, and RUNNINGBOARDS - S24TDP8RS (C602497)

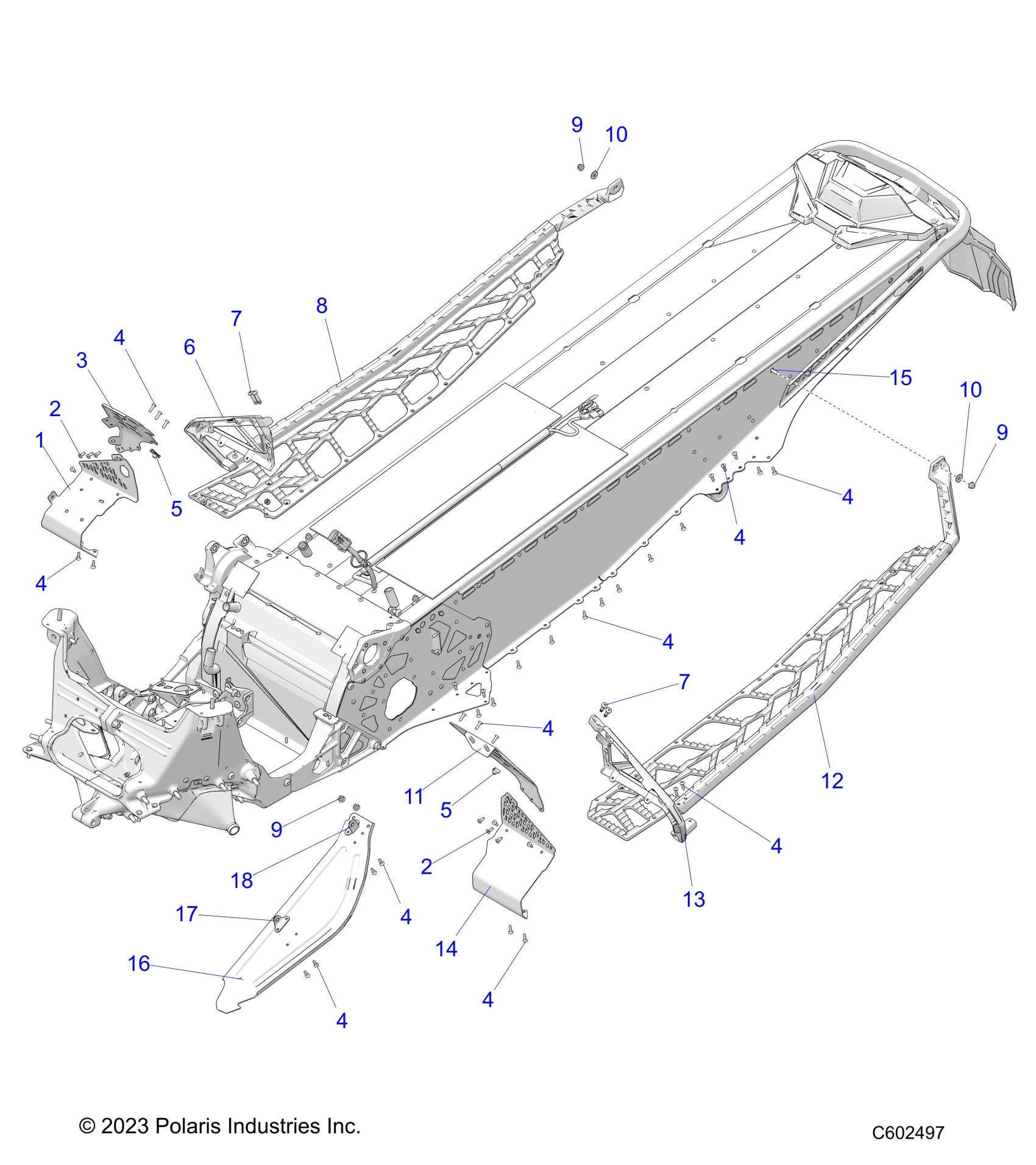

Polaris 850 INDY XC 137 ALL OPTIONS (R01) - S24TDP8RS CHASSIS, CLUTCH GUARD, FOOTRESTS, and RUNNINGBOARDS - S24TDP8RS (C602497) Diagram
#
1
CLOSEOFF-FOOTREST RH
5272699
$104.99
2
RIVET-POP 3/16(.126-.250)-ST-B
7661973
$1.49
2
RIVET-POP 3/16(.126-.250)-ST-B
7661973
$1.49
3
ASM-CONSOLE SUPPORT [INCL. 5]
1028623
$32.37
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
4
RIVET-3/16-.090-.290
7661637
Unavailable
5
CLIP-"U",M6.0X1.0
7547366
$5.99
5
CLIP-"U",M6.0X1.0
7547366
$5.99
6
SUPPORT-FOOTREST RH MACH [NATURAL]
5143267
$44.51
6
SUPPORT-FOOTREST RH MACH BLK [COLOR OPTION]
5143267-067
$68.79
6
SUPPORT-FOOTREST RH MACH RED [COLOR OPTION]
5143267-293
$68.79
6
SUPPORT-FOOTREST RH MACH ISKYBLUE [COLOR OPTION]
5143267-737
$68.79
7
SCR-TXPH-M6X1.0X25 P80 ZC
7521292
$2.39
7
SCR-TXPH-M6X1.0X25 P80 ZC
7521292
$2.39
8
ASM-RUNNINGBOARD 137 RH [NATURAL]
1027427
$280.78
8
ASM-RUNNINGBOARD 137 RH ISKYBL [COLOR OPTION]
1027427-737
$309.83
8
ASM-RUNNINGBOARD 137 RH BLK [COLOR OPTION]
1027427-067
$324.35
8
ASM-RUNNINGBOARD 137 RH RED [COLOR OPTION]
1027427-293
$324.35
9
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$3.99
9
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$3.99
9
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$3.99
10
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
10
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
11
ASM-CLUTCH GUARD SUPPORT [INCL. 5]
1025155
$40.46
12
ASM-RUNNINGBOARD 137 LH [NATURAL]
1027426
$280.78
12
ASM-RUNNINGBOARD 137 LH ISKYBL [COLOR OPTION]
1027426-737
$309.83
12
ASM-RUNNINGBOARD 137 LH BLK [COLOR OPTION]
1027426-067
$324.35
12
ASM-RUNNINGBOARD 137 LH RED [COLOR OPTION]
1027426-293
$324.35
13
SUPPORT-FOOTREST LH MACH [NATURAL]
5143266
$44.51
13
SUPPORT-FOOTREST LH MACH BLK [COLOR OPTION]
5143266-067
$68.79
13
SUPPORT-FOOTREST LH MACH RED [COLOR OPTION]
5143266-293
$68.79
13
SUPPORT-FOOTREST RH MACH ISKYBLUE [COLOR OPTION]
5143267-737
$68.79
14
CLOSEOFF-FOOTREST LH
5269374
$104.99
15
SCR-RHCARM6X1.0X20 8.8 ZOD
7518994
$3.22
16
ASM-GUARD CLUTCH [INCL. 4,17,18]
1025167
$82.29
17
ASM-BRKT OIL BOTTLE FRONT
1025803
Unavailable
18
ASM-BRKT OIL BOTTLE REAR
1025804
Unavailable
