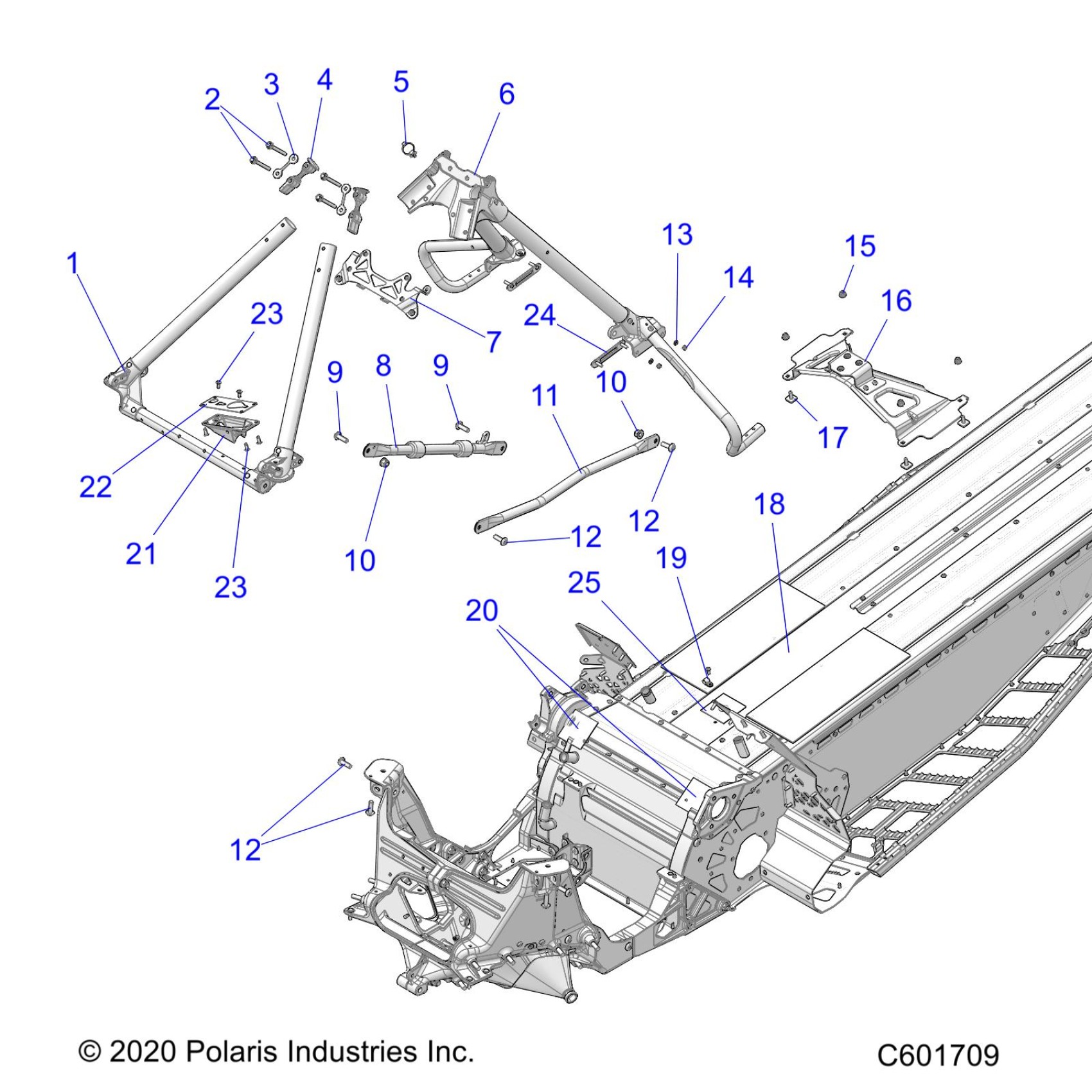

Polaris 850 INDY ADVENTURE 137 ALL OPTIONS (R02) - S21EDE8RS CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S21EDE8RS (C601709) Diagram

#

Description
Price

1

ASM-FRAME TUBULAR FRONT ALUM

1024164

$149.99

2

SCR-HXFL-M6X1X60 10.9 ZOD P30

7520723

$4.99

3

SHIM-TUBE, CAST

5633083

$6.99

4

SPACER, TUBE CAST

5632923

$9.99

5

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

6

ASM., TUBE FRAME, REAR

1023206

$319.99

7

ASM-REGULATOR MOUNT

1024479

$36.41

8

WELD-CROSS BRACE BLK

1025507

Unavailable

9

SCREW-TXTR

7518906

$3.19

9

SCREW-TXTR

7518906

$3.19

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

11

TUBE-BRACE LH BLK

5337391-329

$34.99

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

13

WSHR-5.3X10X1 ZB

7556071

$4.79

14

NUT-M5X.8,HX NYL-Y

7546601

$1.49

15

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

16

BRACKET, FUEL TANK, MBLK

1021376-458

$111.33

17

SCR-SPCL M6X1.0X16 8.8 ZC

7520514

$3.99

18

ASM-CHASSIS 850 137 NAT [COLOR OPTION][INCL. BULKHEAD]

1024801-309

$2,059.99

18

ASM-TUNNEL CONV 137 NAT [COLOR OPTION][INCL. TUNNEL COOLER]

1022432-309

Unavailable

18

ASM-CHASSIS 850 137 BLK [COLOR OPTION][INCL. BULKHEAD]

1024801-067

$2,059.99

18

ASM-TUNNEL CONV 137 BLK [COLOR OPTION][INCL. TUNNEL COOLER]

1022432-067

Unavailable

18

ASM-CHASSIS 850 137 RED [COLOR OPTION][INCL. BULKHEAD]

1024801-293

$2,059.99

18

ASM-TUNNEL CONV 137 RED [COLOR OPTION][INCL. TUNNEL COOLER]

1022432-293

Unavailable

18

ASM-CHASSIS 850 137 GRAY [COLOR OPTION][INCL. BULKHEAD]

1024801-728

$2,059.99

18

ASM-TUNNEL CONV 137 CONV GRAY [COLOR OPTION][INCL. TUNNEL COOLER]

1022432-728

Unavailable

18

ASM-CHASSIS 850 137 POLBLUE [COLOR OPTION][INCL. BULKHEAD]

1024801-751

$2,059.99

18

ASM-TUNNEL CONV 137 POL BLUE [COLOR OPTION][INCL. TUNNEL COOLER]

1022432-751

Unavailable

19

CLAMP-CABLE,NYLON,5/16"

7080960

$4.79

19

RIVET-4.8MM DIA-1.5-6.0GRIP BK

7662251

$2.49

20

PAD, 2.5"X2.5"

5814187

$4.03

21

MOUNT-LOAD CENTER

5454789

$9.70

22

BRKT-LOAD CENTER

5265340

$4.84

23

RIVET-4.8MM DIA-1.5-6.0 GRIP

7661973

$1.49

23

RIVET-4.8MM DIA-1.5-6.0 GRIP

7661973

$1.49

24

ASM-STUD PLATE 5MM

1023672

$12.79

25

PAD-40X63.5

5814353

$9.70
