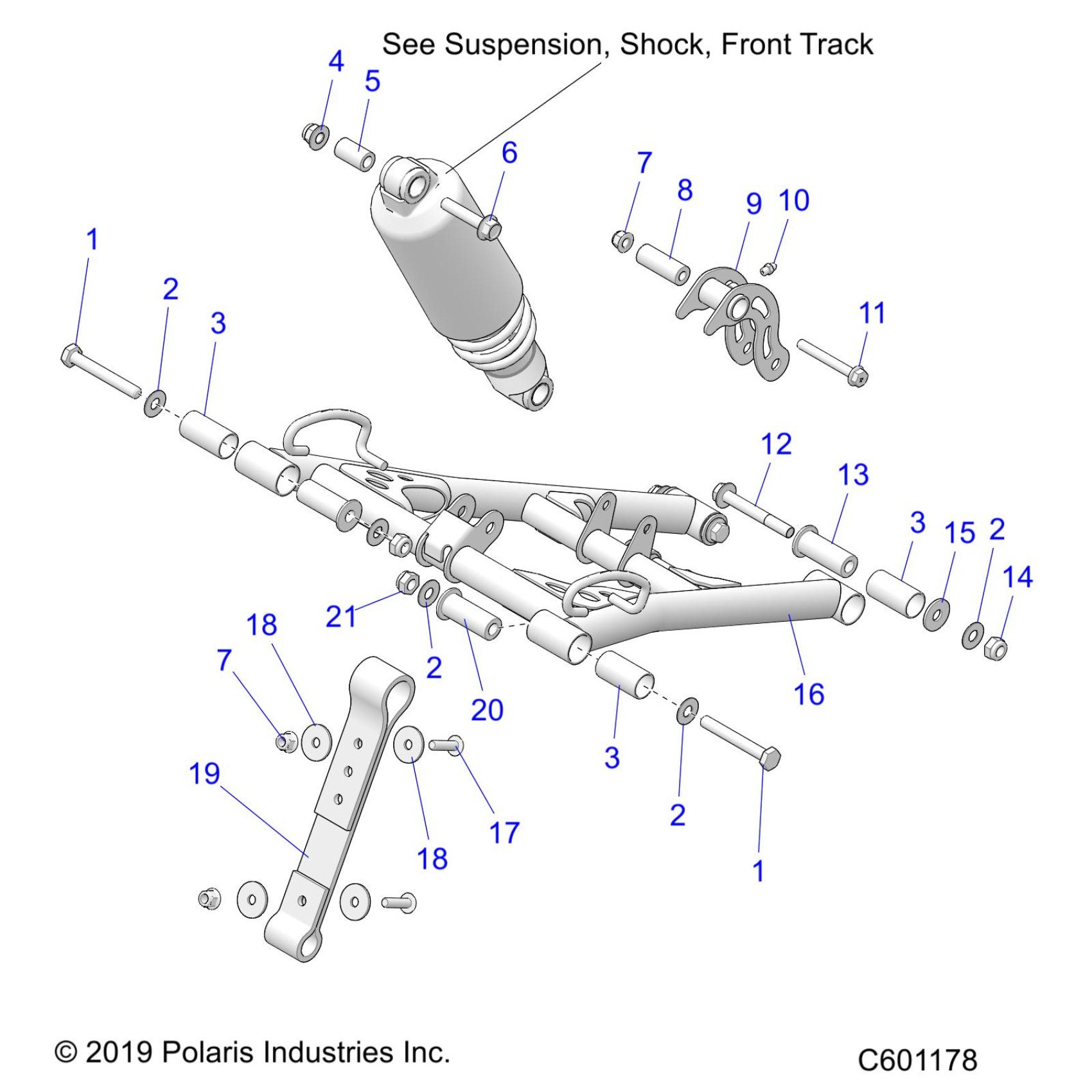

Polaris 850 AXYS SWITCHBACK ASSAULT 144 ALL OPTIONS (R01) - S21EEC8RS SUSPENSION, TORQUE ARM, FRONT - S21EEC8RS ALL OPTIONS (C601178) Diagram

#

Description
Price

1

SCREW, M10x75 HCS

7519015

$5.59

1

SCREW, M10x75 HCS

7519015

$5.59

2

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

2

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

2

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

2

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

3

BUSHING-PIVOT

5438875

$11.99

3

BUSHING-PIVOT

5438875

$11.99

3

BUSHING-PIVOT

5438875

$11.99

4

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

5

BUSHING

5137360

$3.99

6

SCREW, M10x50

7518971

$6.39

7

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

7

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

8

BUSHING, RTS PIVOT

5140030

$7.99

9

PIVOT, SHOCK, E-COAT

1543515-329

$28.32

10

FITTING-LUBRICATION 1/4-28

7080424

$4.79

11

SCREW, M8x65

7519212

$4.79

12

SCREW, M10x75 HXFL

7519286

$7.19

13

SHAFT-PIVOT

5137367

$28.32

14

NUT-HEX-M10X1.25 10 ZOD NYL

7547793

$3.99

15

WSHR-10.4X28.58X2.4 ZOD

7556563

$3.19

16

ASM-FTA ECOAT [INCL. 3]

1543509-329

$309.99

17

SCR-M8X1.25X30 8.8 TR/TX ZOD

7518953

$1.59

18

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

18

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

19

STRAP-LIMITER

5414733

$24.27

20

SHAFT, PIVOT

5138648

$14.21

21

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99
