- 850 AXYS PRO-RMK 174" ALL OPTIONS (R02) - S21EHK8RC
SUSPENSION, CONTROL ARMS, SHOCK MNTG, and SPINDLE - S21EHK8RC ALL OPTIONS (600908)

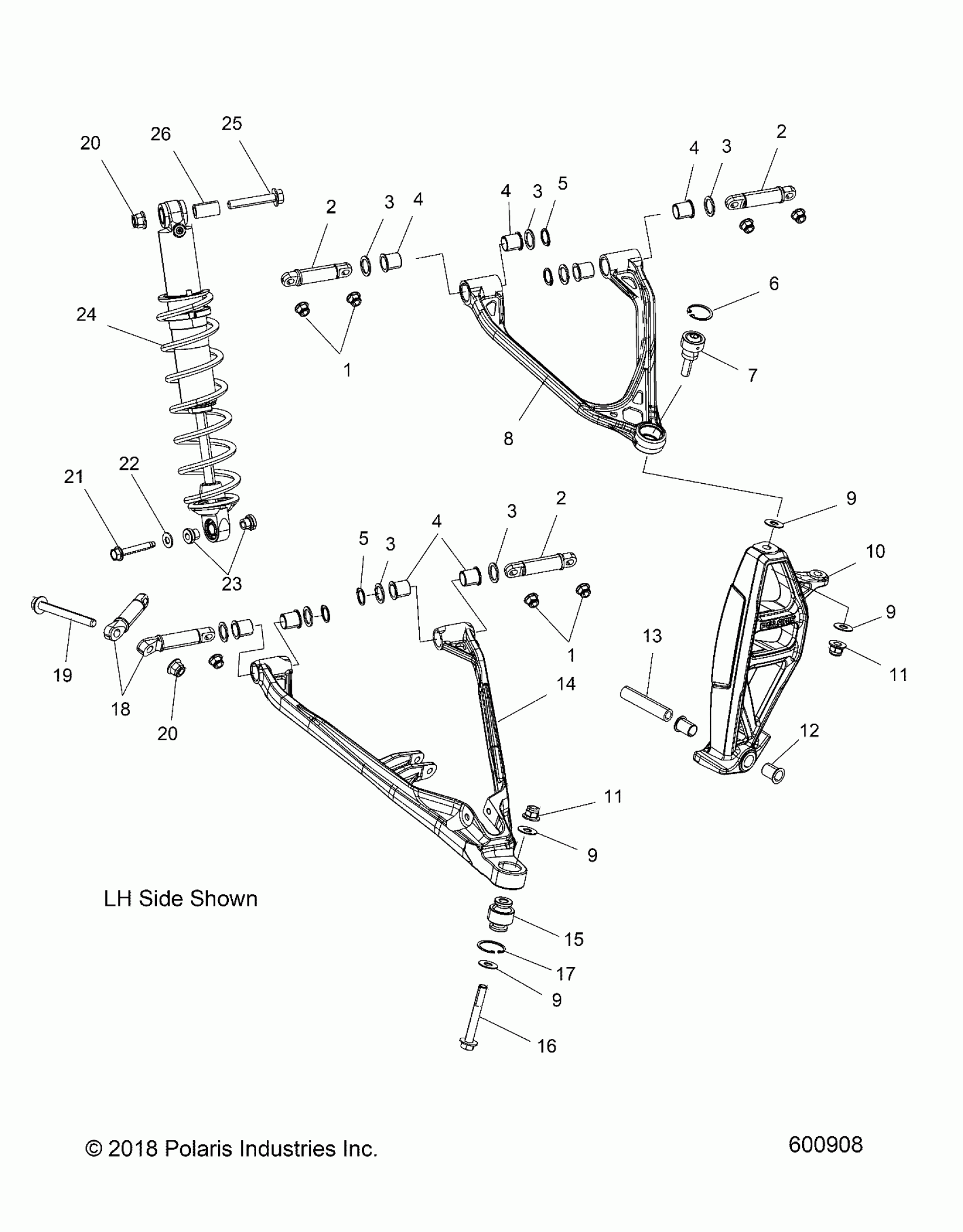

Polaris 850 AXYS PRO-RMK 174" ALL OPTIONS (R02) - S21EHK8RC SUSPENSION, CONTROL ARMS, SHOCK MNTG, and SPINDLE - S21EHK8RC ALL OPTIONS (600908) Diagram
#
1
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
1
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
2
SHAFT-PIVOT GROOVED
5140556
$34.99
2
SHAFT-PIVOT GROOVED
5140556
$34.99
2
SHAFT-PIVOT GROOVED
5140556
$34.99
3
WASHER
7556959
$1.49
3
WASHER
7556959
$1.49
3
WASHER
7556959
$1.49
3
WASHER
7556959
$1.49
3
WASHER
7556959
$1.49
4
BUSHING-PIVOT SHORT
5454428
$3.99
4
BUSHING-PIVOT SHORT
5454428
$3.99
4
BUSHING-PIVOT SHORT
5454428
$3.99
4
BUSHING-PIVOT SHORT
5454428
$3.99
5
RING, RETAINING, 18MM
7710786
$1.60
5
RING, RETAINING, 18MM
7710786
$1.60
6
RING-RET INT 1.125"
7710642
$2.39
7
BALL JOINT-M10X1.25X31 30 DEG
7061219
$69.99
8
ASM-UPPER CONTROL ARM, NRW LH, NATURAL [INCL. 2-7][COLOR OPTION]
1824654-309
$224.99
8
ASM-UPPER CONTROL ARM, NRW RH, NATURAL [INCL. 2-7][COLOR OPTION]
1824655-309
$224.99
8
ASM-UPPER CONTROL ARM, NRW LH, BLK [INCL. 2-7][COLOR OPTION]
1824654-067
$224.99
8
ASM-UPPER CONTROL ARM, NRW RH, BLK [INCL. 2-7][COLOR OPTION]
1824655-067
$224.99
9
WASHER
7556545
$3.19
9
WASHER
7556545
$3.19
9
WASHER
7556545
$3.19
9
WASHER
7556545
$3.19
10
ASM-SPINDLE RMK FORG LH [INCL. 12][COLOR OPTION]
1824649
$256.57
10
ASM-SPINDLE RMK FORG RH [INCL. 12][COLOR OPTION]
1824650
$256.57
10
ASM-SPINDLE RMK FORG LH BLK [INCL. 12][COLOR OPTION]
1824649-067
$256.57
10
ASM-SPINDLE RMK FORG RH BLK [INCL. 12][COLOR OPTION]
1824650-067
$256.57
10
ASM-SPINDLE RMK FORG LH RED [INCL. 12][COLOR OPTION]
1824649-293
$256.57
10
ASM-SPINDLE RMK FORG RH RED [INCL. 12][COLOR OPTION]
1824650-293
$256.57
10
ASM-SPINDLE RMK FORG LH LIME SQZE [INCL. 12][COLOR OPTION]
1824649-630
$256.57
10
ASM-SPINDLE RMK FORG RH LIME SQZE [INCL. 12][COLOR OPTION]
1824650-630
$256.57
10
ASM-SPINDLE RMK FORG LH GHOST GRAY [INCL. 12][COLOR OPTION]
1824649-728
$264.99
10
ASM-SPINDLE RMK FORG RH GHOST GRAY [INCL. 12][COLOR OPTION]
1824650-728
$264.99
10
ASM-SPINDLE RMK FORG LH POLBLU [INCL. 12][COLOR OPTION]
1824649-751
$280.78
10
ASM-SPINDLE RMK FORG RH POLBLU [INCL. 12][COLOR OPTION]
1824650-751
$280.78
10
ASM-SPINDLE RMK FORG LH PLMCRZ [INCL. 12][COLOR OPTION]
1824649-784
$280.78
10
ASM-SPINDLE RMK FORG RH PLMCRZ [INCL. 12][COLOR OPTION]
1824650-784
$280.78
11
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
11
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
12
BUSHING-SKI PIVOT
5438460
$15.99
13
BUSHING
5136910
$7.99
14
ASM-LOWER CONTROL ARM, NRW LH, NATURAL [INCL. 2-6,15,18][COLOR OPTION]
1824652-309
$227.52
14
ASM-LOWER CONTROL ARM, NRW RH, NATURAL [INCL. 2-6,15,18][COLOR OPTION]
1824653-309
$227.52
14
ASM-LOWER CONTROL ARM, NRW LH, BLK [INCL. 2-6,15,18][COLOR OPTION]
1824652-067
$299.99
14
ASM-LOWER CONTROL ARM, NRW RH, BLK [INCL. 2-6,15,18][COLOR OPTION]
1824653-067
$299.99
15
KIT-BEARING SPHERICAL LWR 10MM
2204229
$31.99
16
BOLT-M10X1.25X85MM,HXFLG,OLV D
7520152
$3.73
17
RING, RETAINING
7710539
$2.39
18
SHAFT-PIVOT LCA FRT GROOVED
5140557
$34.99
19
SCR-M10X1.5X95 HX FLG 10.9 ZOD
7518917
$4.79
20
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
20
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
21
SCR-HXFL-M8X1.25X50 DP ZODP30
7519245
$3.99
22
WASHER
7556524
$1.49
23
SPACER, ALUM.
5138124
$4.79
24
SHOCK, IFS [SEE SHOCK, IFS PAGE]
-------
Unavailable
25
SCR-M10X1.5X60-8.8 HFS ZOD
7518941
$3.99
26
BUSHING-M10X17.5X30
5137360
$3.99
