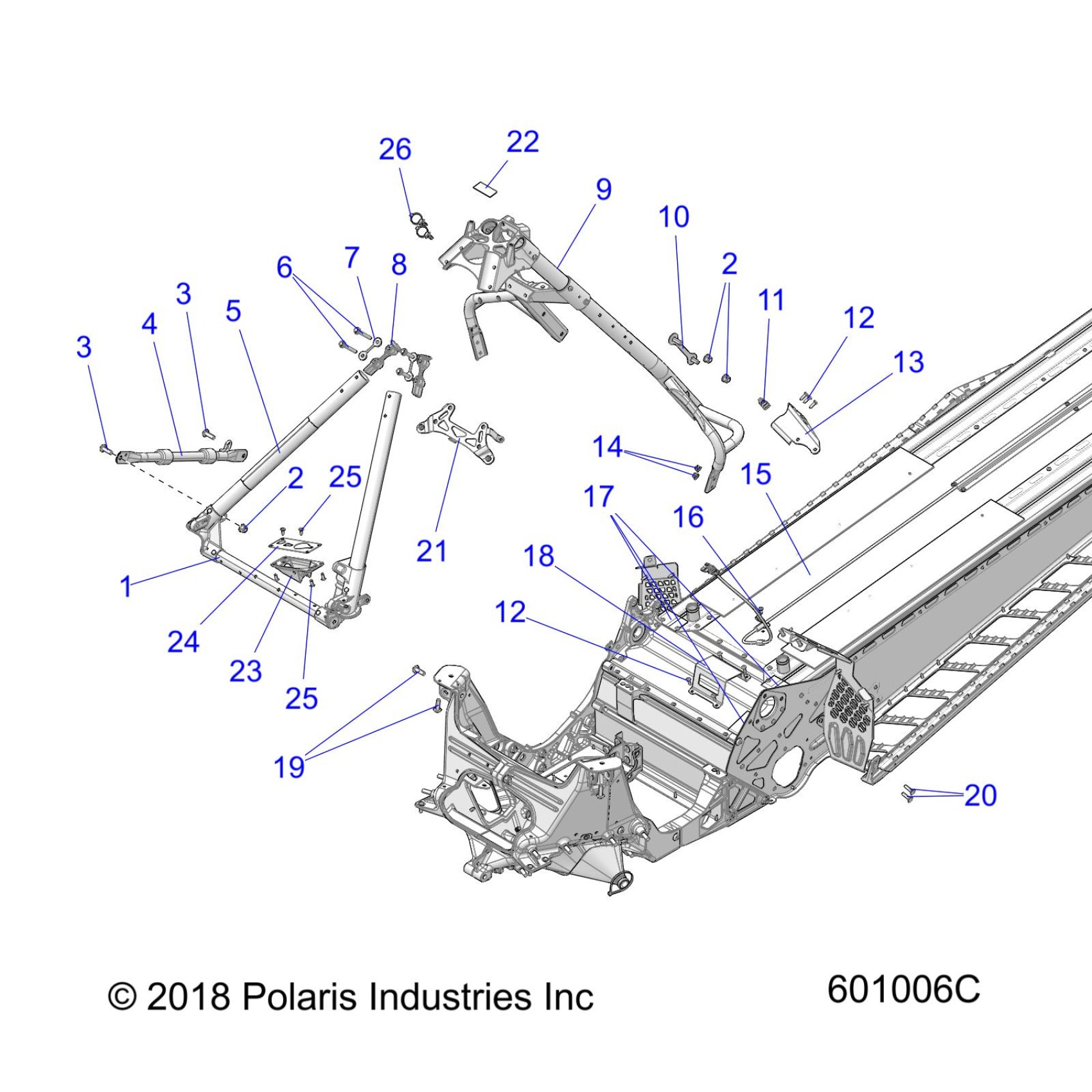

Polaris 850 AXYS PRO-RMK 174" ALL OPTIONS (R02) - S21EHK8RC CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S21EHK8RC ALL OPTIONS (601006C) Diagram

#

Description
Price

1

ASM., FRAME, TUBE, FRONT RMK CF [INCL. FOIL] [CARBON FIBER]

1023850

$419.99

2

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

2

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

3

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

3

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

4

WELD-CROSS BRACE BLK

1025507

Unavailable

5

FOIL-100MM X 200MM

5814124

$8.99

6

SCR-HXFL-M6X1.0X55 10.9 ZODP30

7520721

$3.99

7

SHIM, TUBE

5633083

$6.99

8

SPACER, TUBE CAST

5632923

$9.99

9

ASM., FRAME, TUBULAR, REAR, RMK

1023201

$579.99

10

ASM., STUD PLATE

1019337

$12.99

11

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

12

RIVET-3/16-.090-.290

7661637

$1.49

12

RIVET-3/16-.090-.290

7661637

$1.49

13

BRKT., SUPPORT, TOE STOP

5262012

$13.75

14

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

15

ASM-CHASSIS 850 174 QD NAT [COLOR OPTION][INCL. BULKHEAD AND QUICK DRIVE BACKER PLATE]

1025616-309

$2,059.99

15

ASM-TUNNEL 850 174 NAT [COLOR OPTION]

1026188-309

$1,769.99

15

ASM-CHASSIS 850 174 QD BBLK [COLOR OPTION][INCL. BULKHEAD AND QUICK DRIVE BACKER PLATE]

1025616-067

$2,059.99

15

ASM-TUNNEL 850 174 GBLK [COLOR OPTION]

1026188-067

Unavailable

15

ASM-CHASSIS 850 174 QD IRED [COLOR OPTION][INCL. BULKHEAD AND QUICK DRIVE BACKER PLATE]

1025616-293

$2,059.99

15

ASM-TUNNEL 850 174 IRED [COLOR OPTION]

1026188-293

Unavailable

15

ASM-CHASSIS 850 174 QD GSTGRY [COLOR OPTION][INCL. BULKHEAD AND QUICK DRIVE BACKER PLATE]

1025616-728

$2,059.99

15

ASM-TUNNEL 850 174 GHSTGREY [COLOR OPTION]

1026188-728

Unavailable

15

ASM-CHASSIS 850 174 QD POLBLUE [COLOR OPTION][INCL. BULKHEAD AND QUICK DRIVE BACKER PLATE]

1025616-751

$2,059.99

15

ASM-TUNNEL 850 174 POLBLU [COLOR OPTION]

1026188-751

Unavailable

16

CLAMP-NYLON, CABLE, 1/4"

7080539

$4.79

16

RIVET

7662251

$2.49

17

PAD

5814353

$9.70

18

BRKT., AIR BOX SUPPPORT

5258618

$12.99

19

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

20

SCR-RHCAR-M6X1.0X22 8.8 ZPC

7519338

$3.19

21

ASM-REGULATOR MOUNT RMK

1023231

$32.37

22

PAD-51X22

5814828

$2.41

23

MOUNT-LOAD CENTER

5454789

$9.70

24

BRKT-LOAD CENTER

5265340

$4.84

25

RIVET-4.8MM DIA-1.5-6.0 GRIP

7661973

$1.49

25

RIVET-4.8MM DIA-1.5-6.0 GRIP

7661973

$1.49

26

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79
