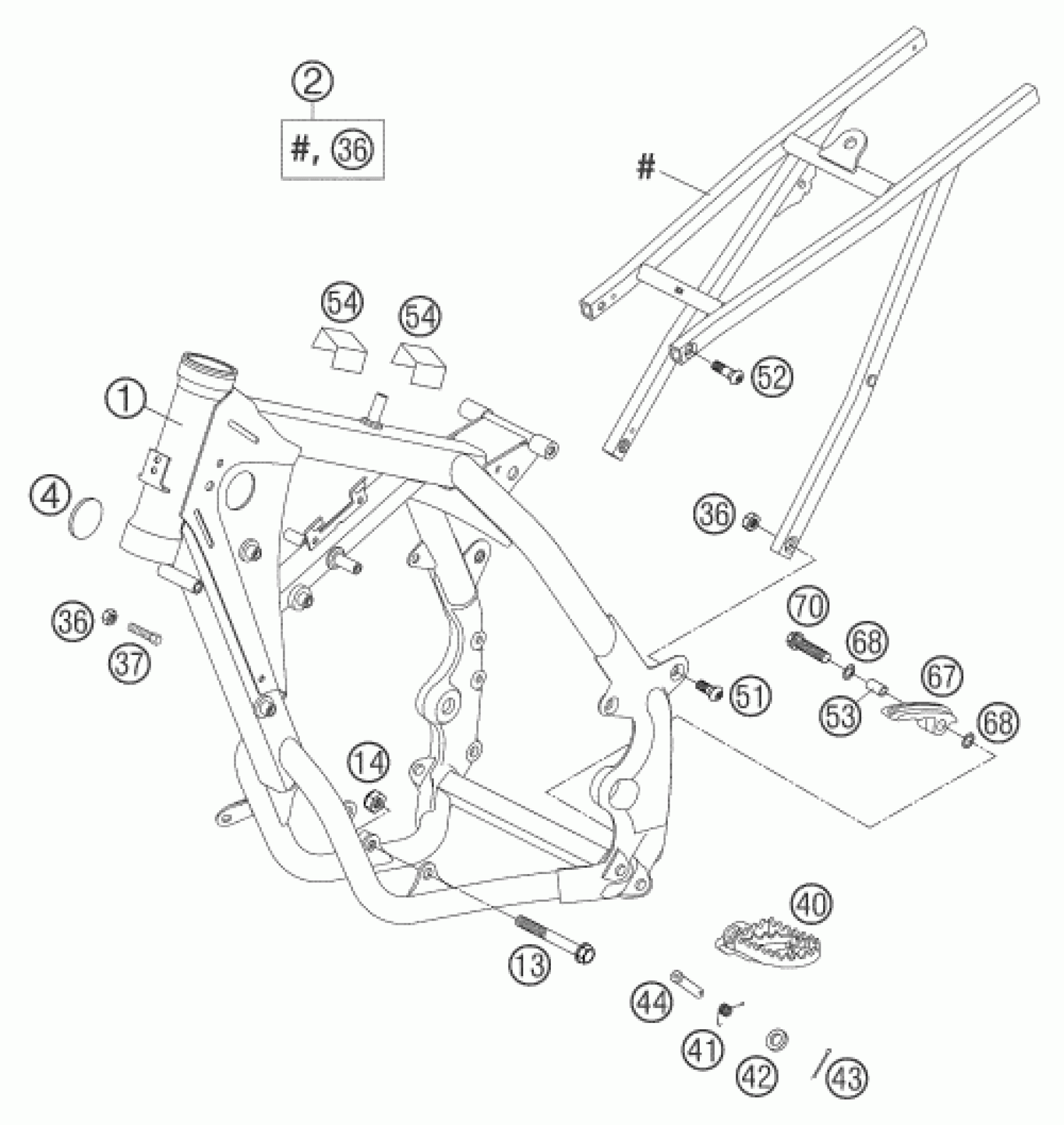

KTM 85 SX 2003 FRAME Diagram

FRAME 85 SX 20

47003001000

Unavailable

SUB FRAME 85 SX (B3) 03

47003002044

$211.09

PLUG 37MM

54606004000

$2.05

ENGINE BRACKET SCREW 85 SX

47003013000

$8.41

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

Hexagon nut DIN934 M8

0934080003

$2.05

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

FOOT PED L/S EXC SILVER 00

59003040050

$43.84

FOOT PED R/S EXC SILVER 2000

59003041050

$42.72

FOOTREST SPRING L/S & R/S

54603041000

$5.23

washer DIN 125 A 10.5

0125100003

$2.05

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

SPROCKET SCREW-AH M8X20 WS=6

54610052000

$2.05

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

BUSHING 8,2X10X20

51103053051

$4.11

METAMOLL FOR BATTERY BRACKET

58711054050

$2.05

CHAIN SLIDING PIECE 03

54804067000

$5.23

LOCK WASHER 8MM

36003014000

$2.05

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08
