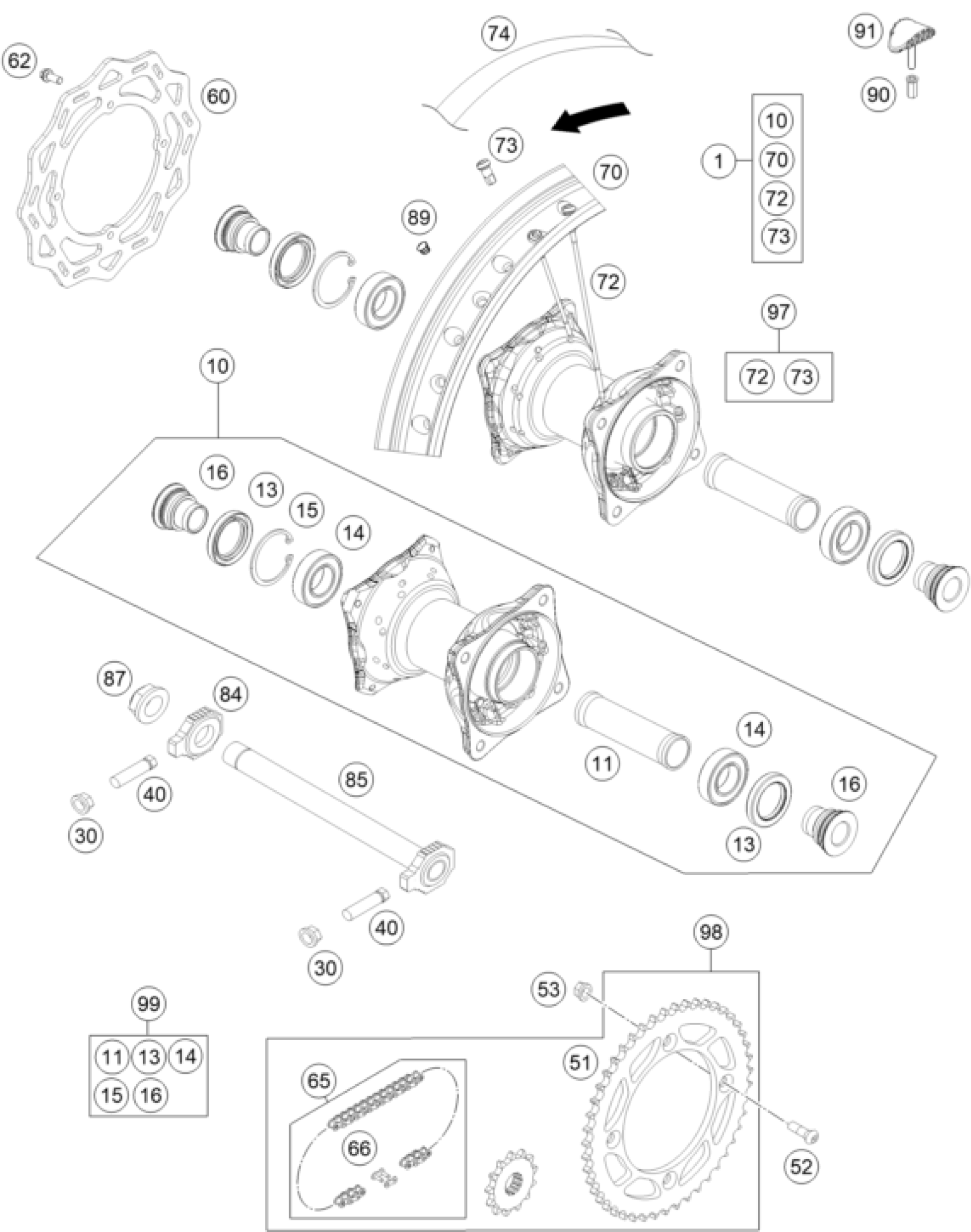

KTM 85 SX 19/16 2018 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL CPL. 16'' BLACK

4711000174430

$779.78

10

REAR WHEEL HUB CPL. 12

70010010044

$670.01

11

BEAR.SPACER TUBE ´12

70010011000

$26.17

13

Radial shaft seal 32X47X7 BSL

0760324771

$13.36

14

Grooved ball bear.6005 DDU2CG2

0625060058

$18.32

15

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

16

BUSHING FOR HUB 08

78010016000

$32.90

30

flanged nut M8 WS10

46030045000

$7.85

40

HH SCREW M8X40 WS=10

50203030090

$4.11

51

Sprocket 44-t

47210051044

Unavailable

51

Sprocket 45-t

47210051045

Unavailable

51

Sprocket 46-t

47210051046

Unavailable

51

Sprocket 47-t

47210051047

Unavailable

51

Sprocket 48-t

47210051048

Unavailable

51

Sprocket 49-t

47210051049

$68.06

51

Sprocket 50-t

47210051050

Unavailable

51

Sprocket 51-t

47210051051

Unavailable

52

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

53

Hex. nut DIN EN 1661 M8 WS13

06923080003

$2.05

60

REAR DISC D=210MM

23610060000

$184.09

62

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

65

CHAIN 124 ROLLS 85 SX

47010165124

$96.11

66

CONNECTING LINK 85 SX

47010166000

$7.00

70

RIM REAR 16X1,85 BLACK

2351007030030

Unavailable

72

Spoke M4.5X168-16" black

4711007116830

$4.11

73

Spoke nipple M4.5 AL

77109072000

$3.08

74

Tube protector 85 SX 16"

47010073200

$7.38

84

Chain tensioner right 12

70010084000

$16.07

85

WHEEL SPINDLE REAR CPL. 12

70010085044

$75.17

87

Hexagon nut M20x1.5

50310099000

$11.30

89

PLUG FOR RIM

55003135000

Unavailable

90

NUT FOR WHEEL HOLDER

77110090050

$5.23

91

Rim lock 1.85"

70010090000

$21.03

97

SPOKE KIT REAR ''16'' 85 SX 13

00050000968

Unavailable

98

Drivetrain kit 13t/49t

00050002092

Unavailable

99

REAR WHEEL REP. KIT

70010015000

Unavailable
