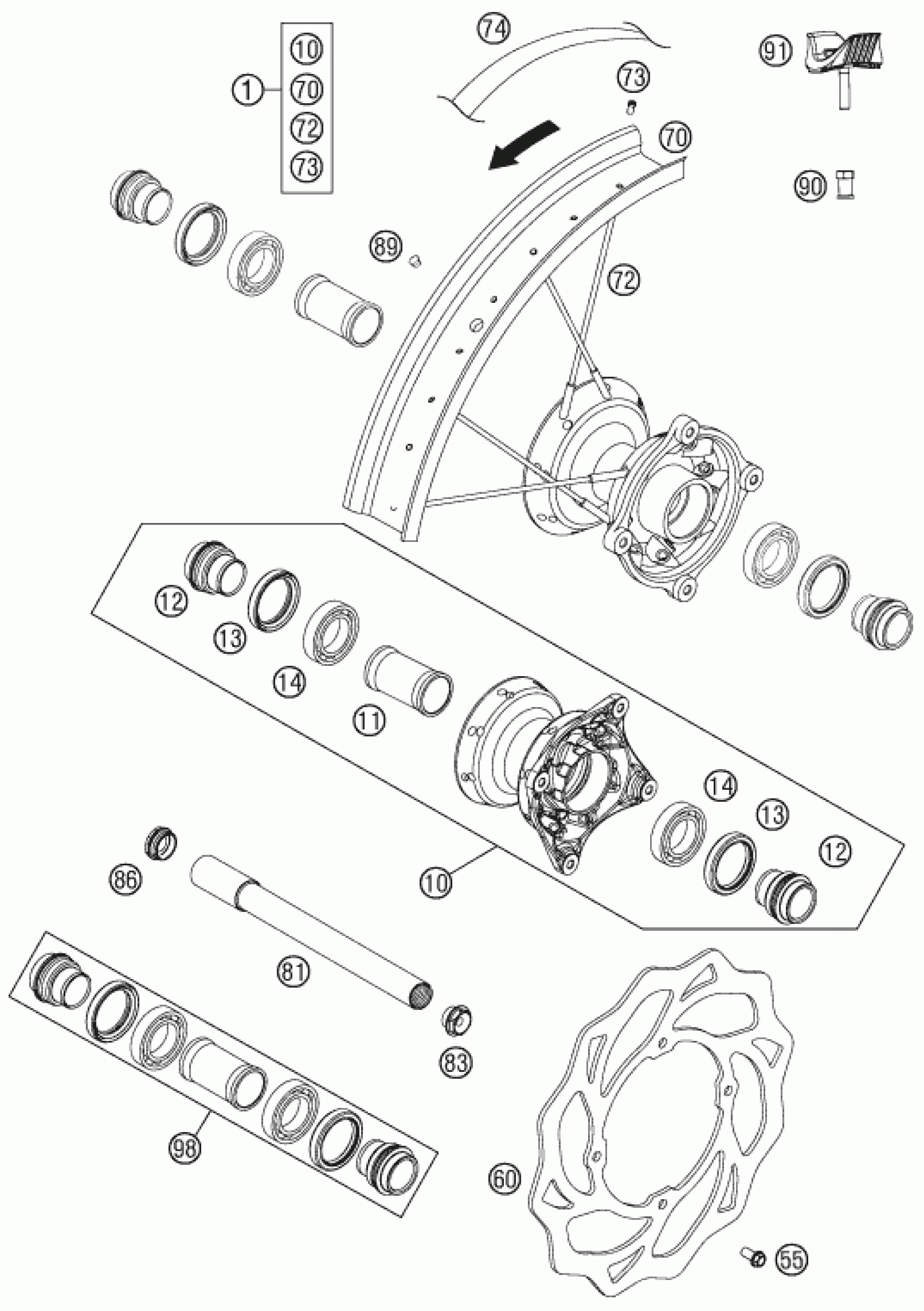

KTM 85 SX 19/16 2014 FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL CPL. 19'' 201

47109001144

Unavailable

10

FRONT WHEEL HUB CPL. 12

70009010044

$349.68

11

BEAR.SPACER TUBE FRONT D22MM

70009011000

$18.60

12

SPACER BUSHING D=22MM

70009012000

$31.03

13

SHAFT SEAL RING 32X42X7 BSL

0760324271

$17.10

14

BALL BEARING 6905 J1LLUC3

0625069050

$37.20

55

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

60

BRAKE DISC FRONT

70009060000

Unavailable

70

RIM FRONT AL4 19X1,60-32

47109070100

Unavailable

72

SPOKE M4,5X206-19'' BLACK

4710907120630

$4.11

73

Spoke nipple M4.5 AL

77109072000

$3.08

74

Tube protector 85 SX 19"

47009073100

$8.97

81

AXLE FRONT D=22 '12

70009081000

$78.91

83

AXLESCREW M20X1.5 SW17

70009082000

$9.44

86

PLUG BUSHING SW17 '12

70009081050

$9.34

89

PLUG FOR RIM

55003135000

Unavailable

90

NUT FOR WHEEL HOLDER

77110090050

Unavailable

91

RIM LOCK 1,60''

78109090000

Unavailable

98

FRONT WHEEL REP. KIT

70009015000

Unavailable

97

SPOKE KIT FRONT ''19'' 85 SX 1

00050000967

Unavailable
