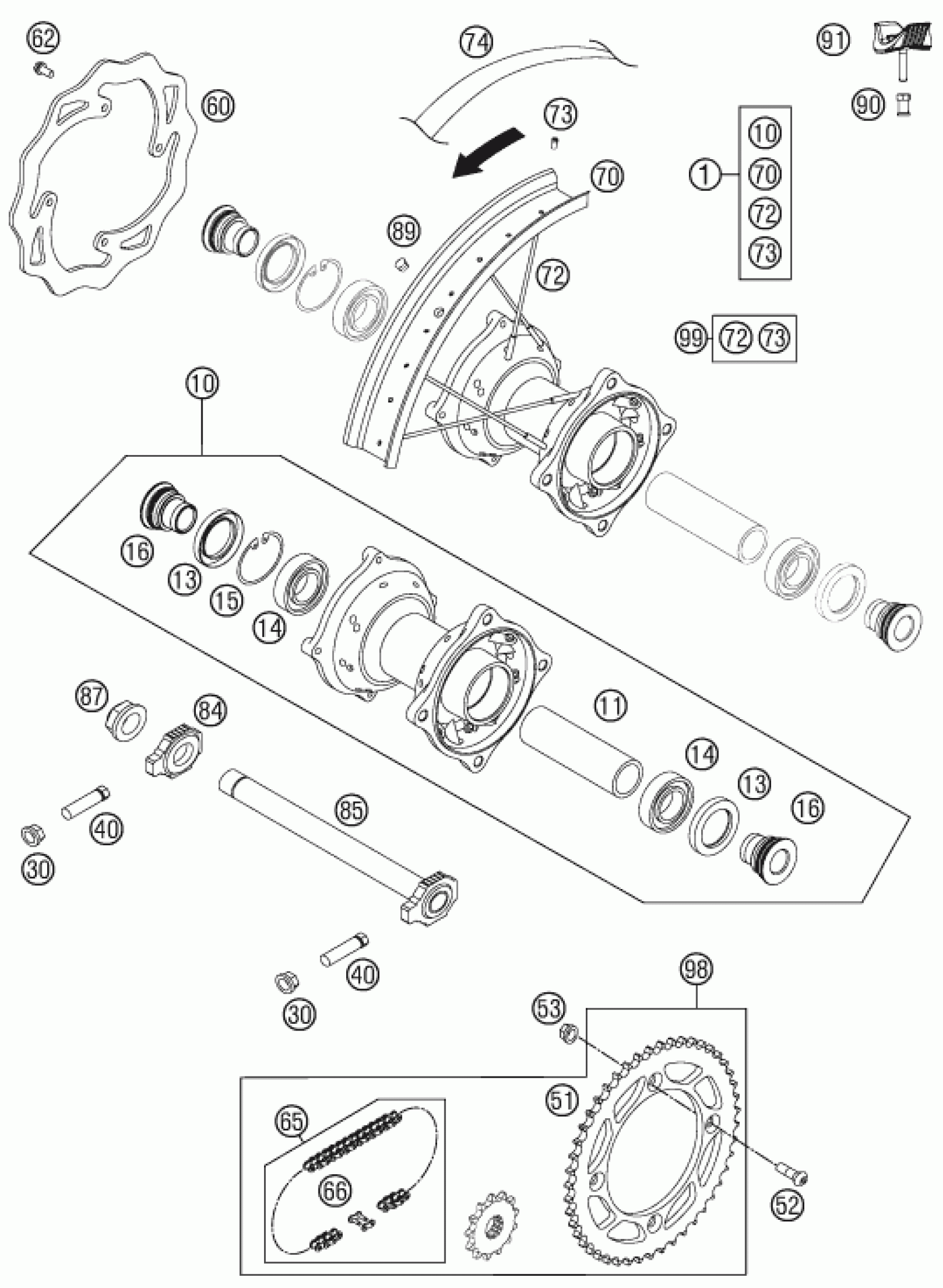

KTM 85 SX 19/16 2012 REAR WHEEL Diagram

#

Description
Price

10

REAR WHEEL HUB CPL. 12

70010010044

$670.01

11

BEAR.SPACER TUBE ´12

70010011000

$26.17

13

Radial shaft seal 32X47X7 BSL

0760324771

$13.36

14

Grooved ball bear.6005 DDU2CG2

0625060058

$18.32

15

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

16

BUSHING FOR HUB 08

78010016000

$32.90

30

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

40

screw M10x1.25x50 WS10

50304040100

$5.23

51

REAR SPROCKET 44-T 85 SX 03

47010051044

Unavailable

51

REAR SPROCKET 45-T 85 SX 03

47010051045

Unavailable

51

REAR SPROCKET 46-T 85 SX 03

47010051046

Unavailable

51

REAR SPROCKET 47-T 85 SX 03

47010051047

Unavailable

51

REAR SPROCKET 48-T 85 SX 03

47010051048

Unavailable

51

REAR SPROCKET 49-T 85 SX 03

47010051049

$68.06

51

REAR SPROCKET 50-T 85 SX 03

47010051050

Unavailable

51

REAR SPROCKET 51-T 85 SX 06

47010051051

Unavailable

52

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

53

Self locking nut M8 10.9

54310086200

$3.08

60

REAR BRAKE DISC

47010060500

$131.17

62

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

65

CHAIN 124 ROLLS 85 SX

47010165124

$96.11

66

CONNECTING LINK 85 SX

47010166000

$7.00

70

RIM REAR AL4 16X1,85-32 03

47010070200

Unavailable

72

SPOKE M4,5 FOR 16''

47010071100

Unavailable

73

Spoke nipple M4.5 AL

77109072000

$3.08

74

Tube protector 85 SX 16"

47010073200

$7.38

84

Chain tension adjuster, right

50310084000

$20.66

85

AXLE REAR CPL. 85 SX 2003

47010085044

$63.38

87

Hexagon nut M20x1.5

50310099000

$11.30

89

PLUG FOR RIM

55003135000

Unavailable

90

NUT FOR WHEEL HOLDER

77110090050

$5.23

91

RIM LOCK VM2 (1,85'') MX

51010100100

$21.03

98

DRIVETRAIN KIT 105 SX 14T/49T

00050002003

$172.97

1

REAR WHEEL CPL. 16'' 201

47010201144

Unavailable

99

SPOKE KIT REAR ''16'' 85 SX

00050000960

Unavailable
