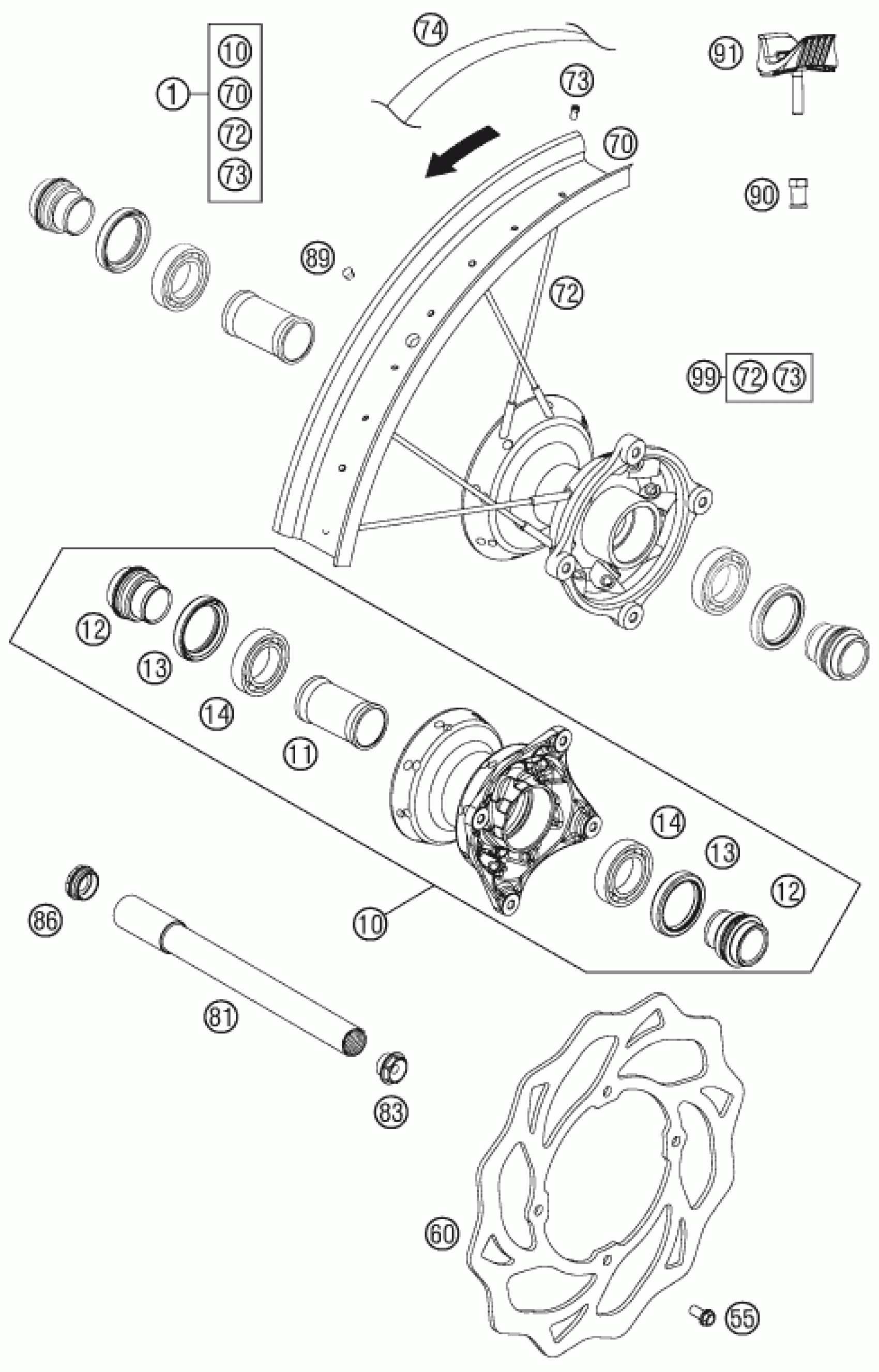

KTM 85 SX 19/16 2012 FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL CPL. 19''

47009101144

Unavailable

99

SPOKE KIT FRONT ''19'' 85 SX

00050000959

Unavailable

10

FRONT WHEEL HUB CPL. 12

70009010044

$349.68

11

BEAR.SPACER TUBE FRONT D22MM

70009011000

$18.60

12

SPACER BUSHING D=22MM

70009012000

$31.03

13

SHAFT SEAL RING 32X42X7 BSL

0760324271

$17.10

14

BALL BEARING 6905 J1LLUC3

0625069050

$37.20

55

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

60

BRAKE DISC FRONT D=219MM 09

47009060300

$118.74

70

RIM FRONT AL4 19X1,60-32 03

47009070100

Unavailable

72

SPOKE M4,5 FOR 19''

47009071100

Unavailable

73

Spoke nipple M4.5 AL

77109072000

$3.08

74

Tube protector 85 SX 19"

47009073100

$8.97

81

AXLE FRONT D=22 '12

70009081000

$78.91

83

AXLESCREW M20X1.5 SW17

70009082000

$9.44

86

PLUG BUSHING SW17 '12

70009081050

$9.34

89

PLUG FOR RIM

55003135000

Unavailable

90

NUT FOR WHEEL HOLDER

77110090050

Unavailable

91

RIM LOCK VM1 (1,60'')

51009100100

Unavailable
