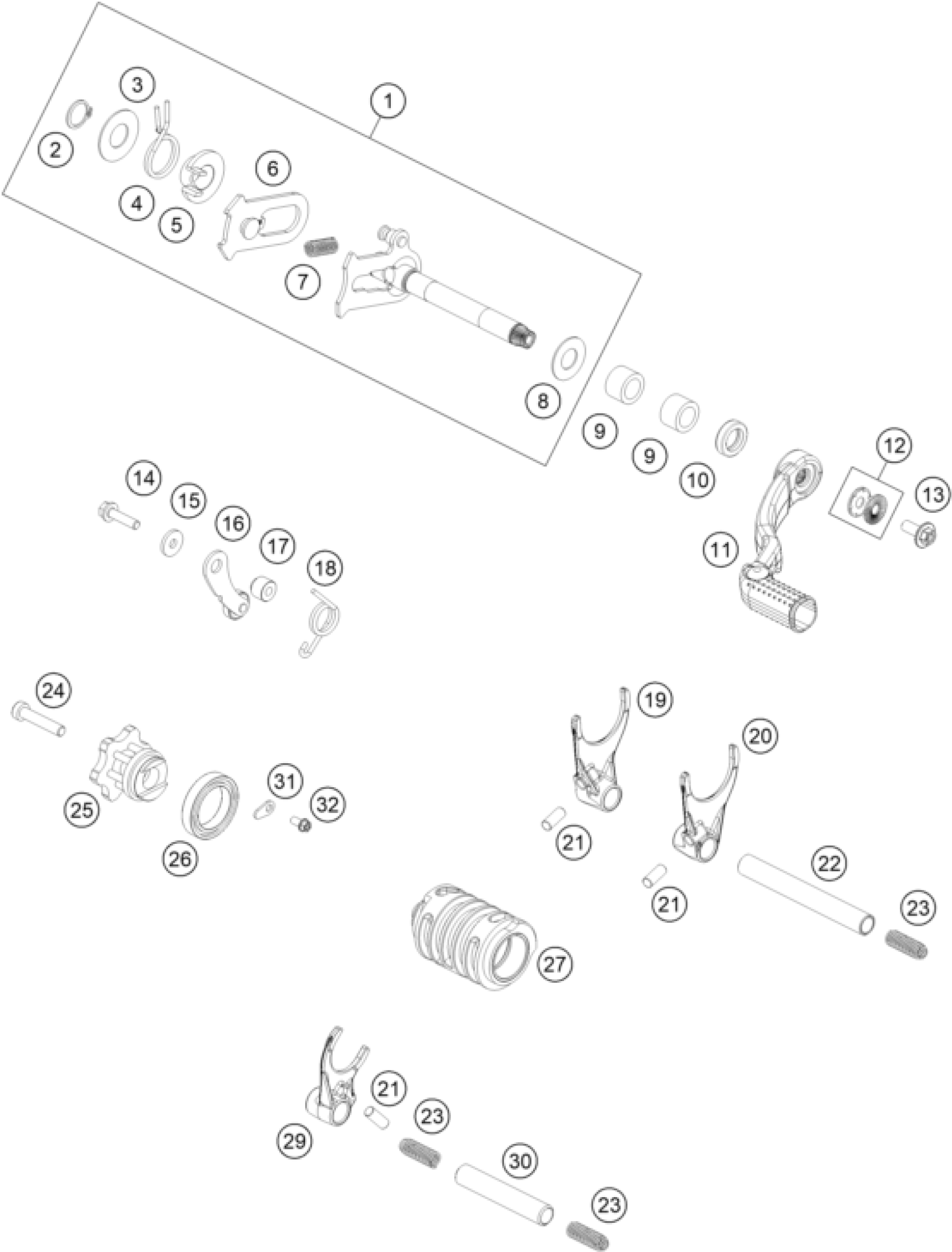

KTM 85 SX 17/14 2026 SHIFTING MECHANISM Diagram

#

Description
Price

1

Shift shaft cpl.

47234005044

$64.23

2

retaining ring DIN 471 14x1

0471140100

$1.49

3

STOP DISK 14X30X1

54634050000

$2.05

4

RETURN SPRING 03

54834014000

$4.11

5

SPRING GUIDE

54634020000

$6.44

6

SLIDING PLATE CPL.

79234008144

$35.52

7

TENSIONING SPRING 0,8MM

56534013100

$1.49

8

STOP DISK 12,1X25X1

49033013000

$4.11

9

NEEDLE BEARING 12X18X12 2002

46034027000

$8.03

10

SHAFT SEAL RING 12X20X5 B

0760122050

$8.03

11

SHIFT LEVER CPL.

50434031000

$92.65

12

PAIR NORDLOCK WASHER M6

50233041500

$4.11

13

HH collar screw M6x15 TX30

0024060156S

$2.05

14

Hex collar screw, M5x20 ISA30

0025050206S

$1.49

15

WASHER DIN7349-5X15X2

0349000050

$1.49

16

LOCKING LEVER CPL.

55434024000

$40.66

17

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

18

LOCATING LEVER SPRING 2,5MM'98

50334023000

$4.11

19

Shift fork 1.-4. gear

47234002000

$27.39

20

Shift fork 2.-3. gear

47234003000

$27.39

21

NEEDLE ROLLER DIN5402 6X14,8

0402061480

$4.11

22

Shift rail 11.8x80x8mm

47234019000

$8.13

23

Compression spring L=25mm D=0.

58038023400

$1.49

24

Cap head screw M6x30-8.8

0012060303S

$1.49

25

Shift star cmpl

79234015100

$25.80

26

BALL BEARING 61805 C3

0625618050

$43.94

27

shift drum cpl.

A41034012033

Unavailable

29

Shift fork 5.-6. gear

47234001000

$27.48

30

SHIFTING RAIL MAIN SHAFT

46234020000

$14.11

31

RETAINING PLATE

54634049000

$4.11

32

HH collar screw M6x12 TX30

0025060126

$3.08
