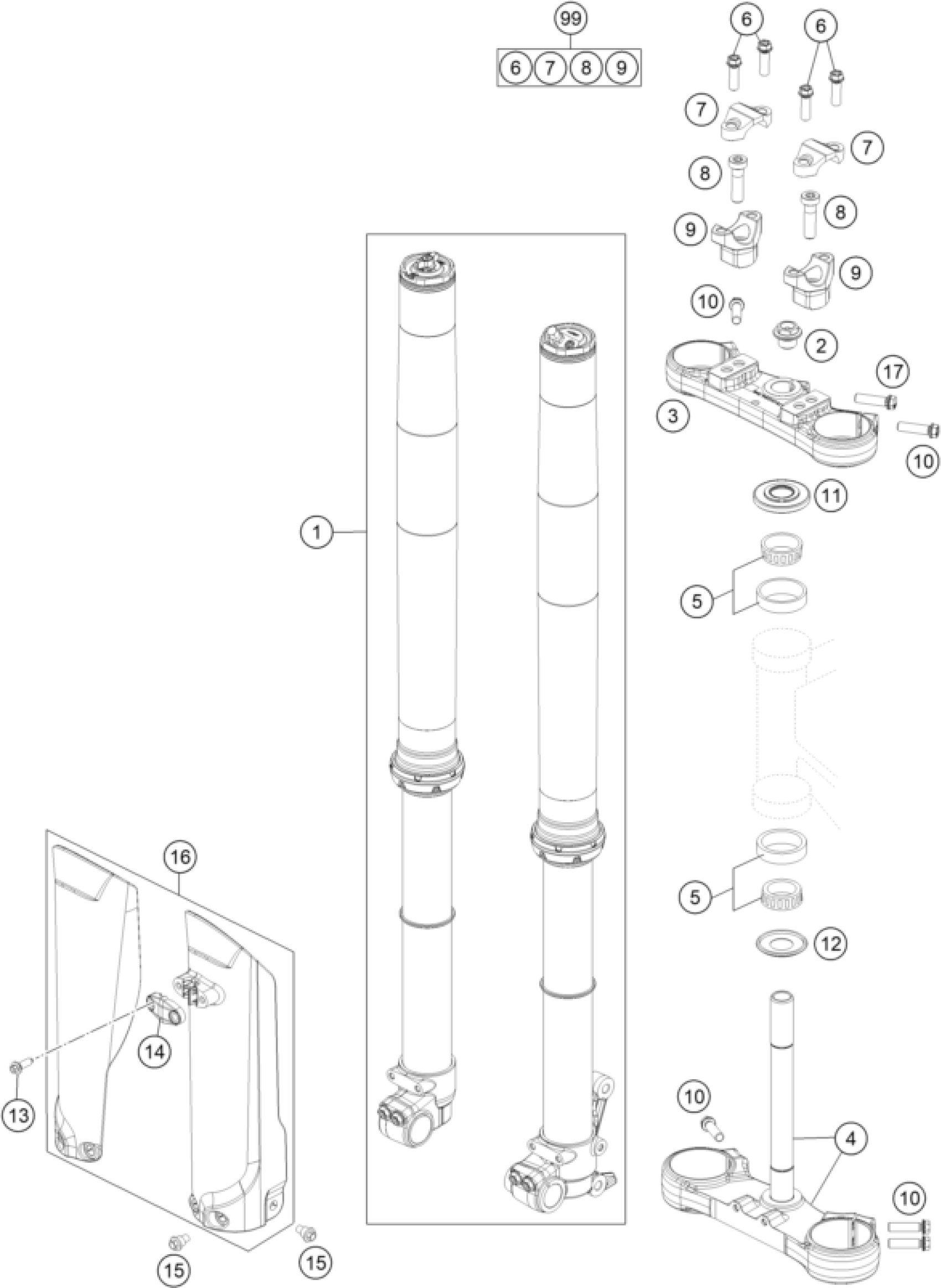

KTM 85 SX 17/14 2026 FRONT FORK, TRIPLE CLAMP Diagram

Non orderable part

SPNO

Unavailable

Collar screw M16x1,5 SW17 Al

0900001601200

Unavailable

Top triple clamp

47101034314

Unavailable

Bottom triple clamp cmpl. 14 m

A41001032014

Unavailable

TAPERED ROLLER BEARING 32004X

49001081000

$42.16

HH collar screw M8x25

0025080256

$2.05

HANDLEBAR CLAMP 28MM

77201038000

$25.05

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

Handlebar mount D28mm-H37mm

59401039037

$34.12

HH collar screw M8x30

0025080306

$3.08

Steering head seal

A53501084000

$25.14

Steering head seal

0780000304400

$8.50

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

Clamp for brake line

77701085100EB

$5.23

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

fork protector kit

47201094000EBC

Unavailable

Hex flng screw M8x30 WAF=10 SL

0015080306S

Unavailable

HANDLEBAR SUPPORT KIT D28/H37

00050000921

Unavailable
