Description

Price

1

spoiler kit 85 SX 2025

A41008054000EBA

Unavailable

2

Fuel tank

A41007013000

Unavailable

3

Fuel tank cap cmpl.

77707008144C1

$28.23

4

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

5

Fuel cock cmpl.

58507003200

$26.55

6

O-RING 1,78x10,82x14,38 2-013

0770020130

$2.05

7

Seat

A41007040000C1

Unavailable

8

Seat cover

A41007040050C1

Unavailable

10

Fuel tank role

A46007014000

$2.05

11

CLAMP YDNAC 10128 12MM

58031005000

$3.08

12

Fuel hose

A41007016000

Unavailable

13

HH collar screw M6x12 TX30

0025060126

$3.08

14

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

15

HH collar screw M6x12 TX30

0025060126

$3.08

16

PVC-HOSE 6X9

50335030001

$6.72

17

Seat holder screw

79107011000

$3.08

18

HH collar screw M6x25 TX30

0025060256

$3.08

19

Lock ring DIN471 12x1

0004711200100

$1.49

20

Isolation pad

77307040041

$2.05

21

Seat installation

A46007046000

$33.56

22

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

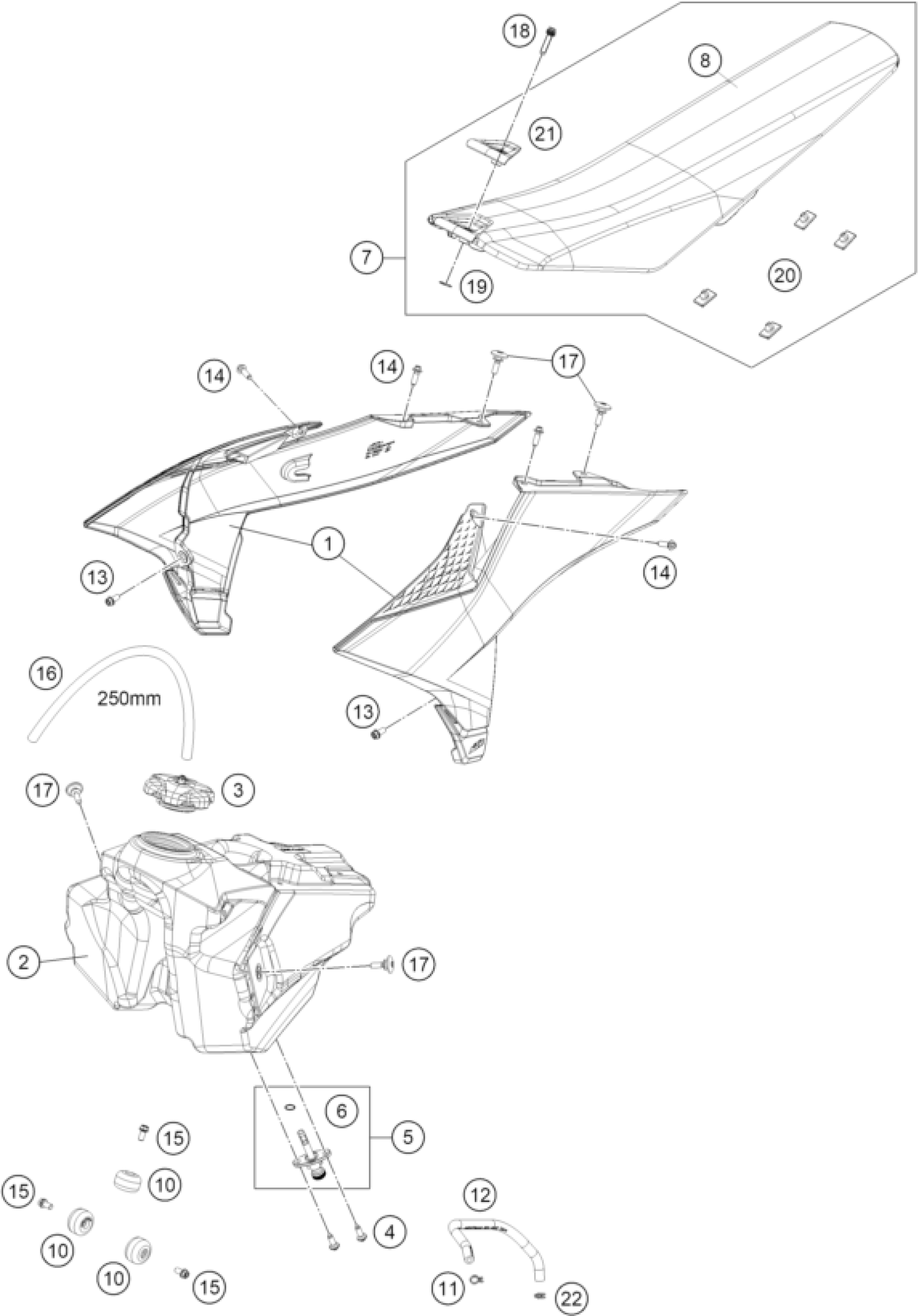

KTM 85 SX 17/14 2025 TANK, SEAT Diagram

spoiler kit 85 SX 2025

Fuel tank

Fuel tank cap cmpl.

SCREW FOR PLASTIC K60X20 SW6

Fuel cock cmpl.

O-RING 1,78x10,82x14,38 2-013

Seat

Seat cover

Fuel tank role

CLAMP YDNAC 10128 12MM

Fuel hose

HH collar screw M6x12 TX30

SCREW F. PLASTIC K60X20AL SW6

HH collar screw M6x12 TX30

PVC-HOSE 6X9

Seat holder screw

HH collar screw M6x25 TX30

Lock ring DIN471 12x1

Isolation pad

Seat installation

YDNAC-CLAMP 10107 10MM
