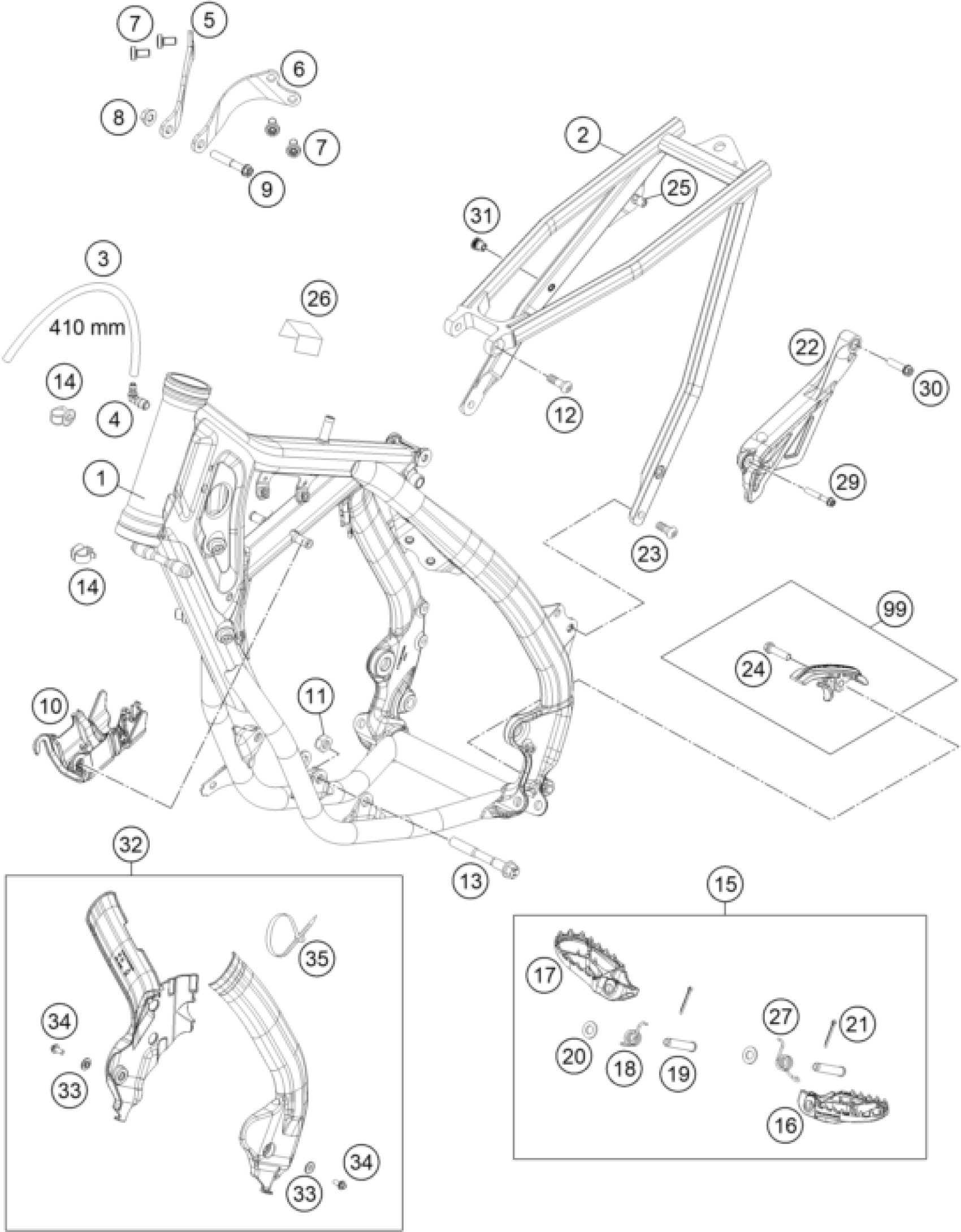

KTM 85 SX 17/14 2020 FRAME Diagram

#

Description
Price

1

Frame 472T3

47203001200EB

$1,763.68

2

Subframe

47203002000

$265.25

3

PVC-HOSE 6X9

50335030001

$6.72

4

ANGLE PIECE 90 DEGREE M10X1

51030022000

$5.23

5

MOTORSTREBE RECHTS

47203014000

$16.63

6

Motorbracket left

47203013000

$33.84

7

AH-COLLAR SCREW M8X15 TORX45

0035080156S

$2.05

8

Self locking nut M8 10.9

54310086200

$3.08

9

HH collar screw M8x50 TX40

0025080506

$3.08

10

Cable compartment

47211095000

$13.64

11

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

12

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

13

ENGINE BRACKET SCREW 85 SX

47003013000

$8.41

14

WIRING HOLDER 16MM

57013072100

$1.49

15

FOOT PEGS SET CPL. 2016

79003040033

$101.16

16

FOOTREST L/S 2016

79003040000

$41.51

17

FOOTREST R/S 2016

79003041000

$41.51

18

FOOTREST SPRING R/S 2016

79003044000

$2.05

19

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

20

washer DIN 125 A 10.5

0125100003

$2.05

21

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

22

Sprocket cover 85

47203096000

$27.11

23

Special screw M8X18 TORX45 SL

79003003000

$3.08

24

HH collar screw M8x30

0025080306

$3.08

25

BLIND RIVET NUT EM6-60LF/HX

77303139000

$4.11

26

ADH. FOIL TRANSP. 80X80 MM 04

50307012000

$2.05

27

FOOTREST SPRING L/S 2016

79003045000

$2.05

29

HH collar screw M6x40 TX30

0025060406

$3.08

30

HH collar screw M8x25

0025080256

$2.05

31

BLIND RIVET NUT M6 KNURLED

79003002080

$3.08

32

Frame protector set

47203094000EB

$23.37

33

Bush f. frame protection 03

54803092060

$4.11

34

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

35

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

99

CHAIN SLIDING KIT BELOW CPL.16

79003053010

$17.85
