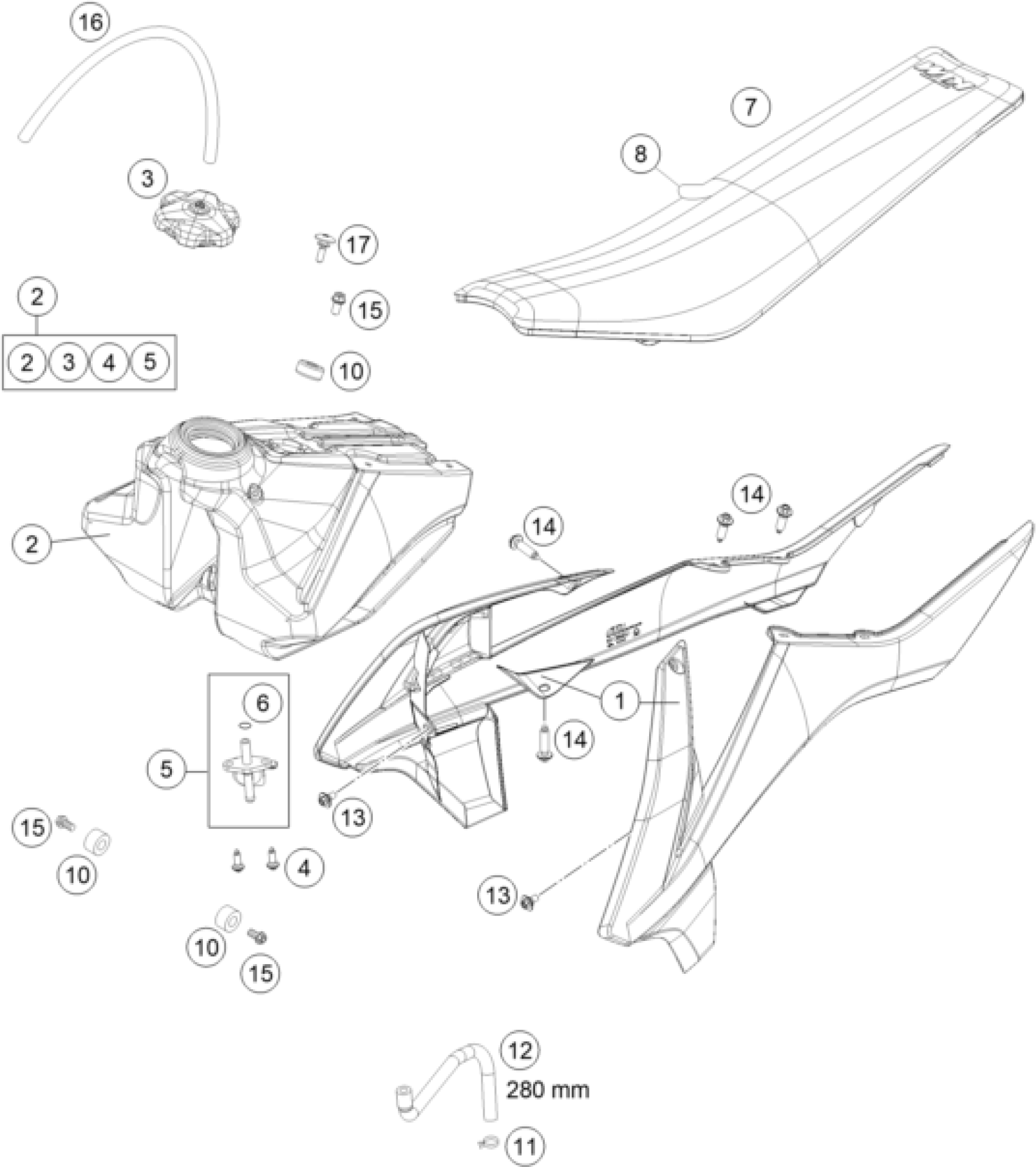

KTM 85 SX 17/14 2019 TANK, SEAT Diagram

Spoilerset 85SX 2019

4720805400028A

$110.13

Fueltank asm.

47207013033

$260.48

TANK PLUG CPL. 2014

77707008144

$27.76

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

GAS COCK MIKUNI ON/OFF 2001

50307005000

$96.39

O-RING 13,00X2,30

0770130023

$4.11

Seat

47207040100

$126.68

Seat cover SX 85 2019

47207040050

$59.64

TANK ROLLER 12X26X12 '98

50307014000

$11.02

YDNAC-CLAMP FUEL HOSE (8MM)

45031005000

$1.49

FUEL HOSE VITON 6X1,5 PER/M

58307016001

$36.64

special screw M6x12x3

83008000012

$3.08

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

COLLAR SCREW M6X13 ISA30

0026060136

$3.08

PVC-hose 5.6X10X270MM

78007000270

$2.61

SCREW SEAT FASTENING D=6X23/18

50307011000

$3.08
