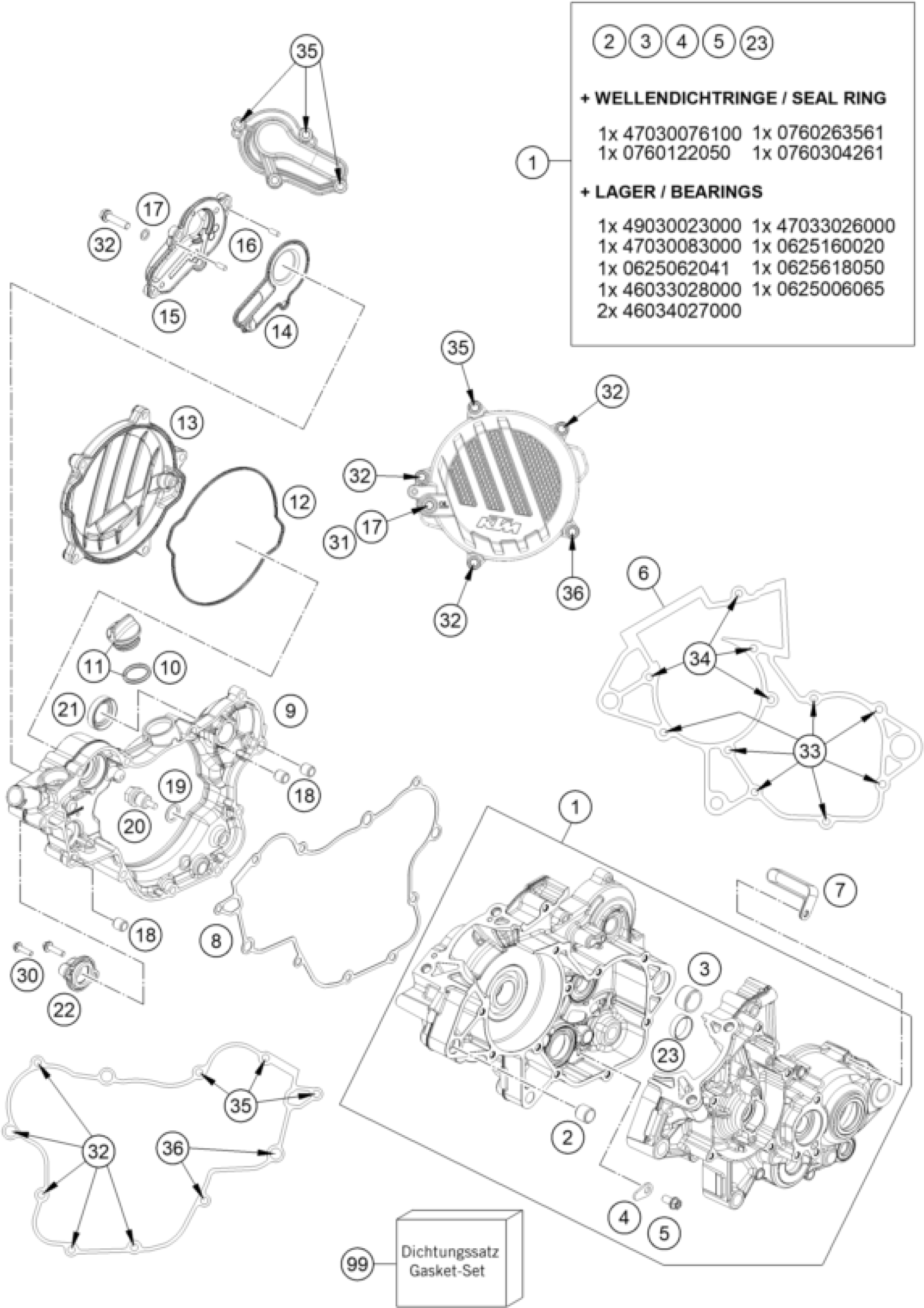

KTM 85 SX 17/14 2019 ENGINE CASE Diagram

#

Description
Price

1

Engine case cpl.

47230000144

$633.92

2

DOWEL BUSHING 13,8X11X12

54630027000

$6.91

3

DOWEL 21X12 03

54830027000

$5.23

4

RETAINING PLATE

54634049000

$4.11

5

HH collar screw M6x12 TX30

0025060126

$3.08

6

Crankcase cover gasket

47230039000

$21.31

7

Bracket for bleeding tube

55430090000

$8.87

8

Gasket inner clutch cover

47230025000

$23.55

9

Inner clutch cover

47230001100

$145.57

10

O-RING 19,00X3,00 NBR

0770191015

$2.05

11

Oil filler cap cmpl. M24x3

79430020033

$8.03

12

Clutchcover gasket

47230027000

$12.33

13

Clutch cover cpl.

4723002600015

$60.86

14

Gasket with supportheet

47235053000

$25.42

15

Waterpump cover

47235052000

$16.73

16

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

17

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

18

DOWEL 9,8 X7X10

49030090100

$2.05

19

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

20

oildrain plug with magnet

58030021100

$11.30

21

SHAFT SEAL RING 19X30X7 B

0760193070

$5.60

22

COVER LID 250-380'98

54637070100

$18.69

23

BUSHING IDLER GEAR

50433024050

$26.17

30

HH COLLAR SCREW M 5X20 WS=6

0014050203

$3.08

31

HH collar screw M6x10 TX30

0025060106

$3.08

32

HH collar screw M6x25 TX30

0025060256

$3.08

33

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

34

HH collar screw M6x50 TX30

0025060506

$3.08

35

HH collar screw M6x60 TX30

0025060606

$3.08

36

HH collar screw M6x55 TX30

0025060556

$3.08

99

Gasket set 85 SX 2018

47230099000

$283.48
