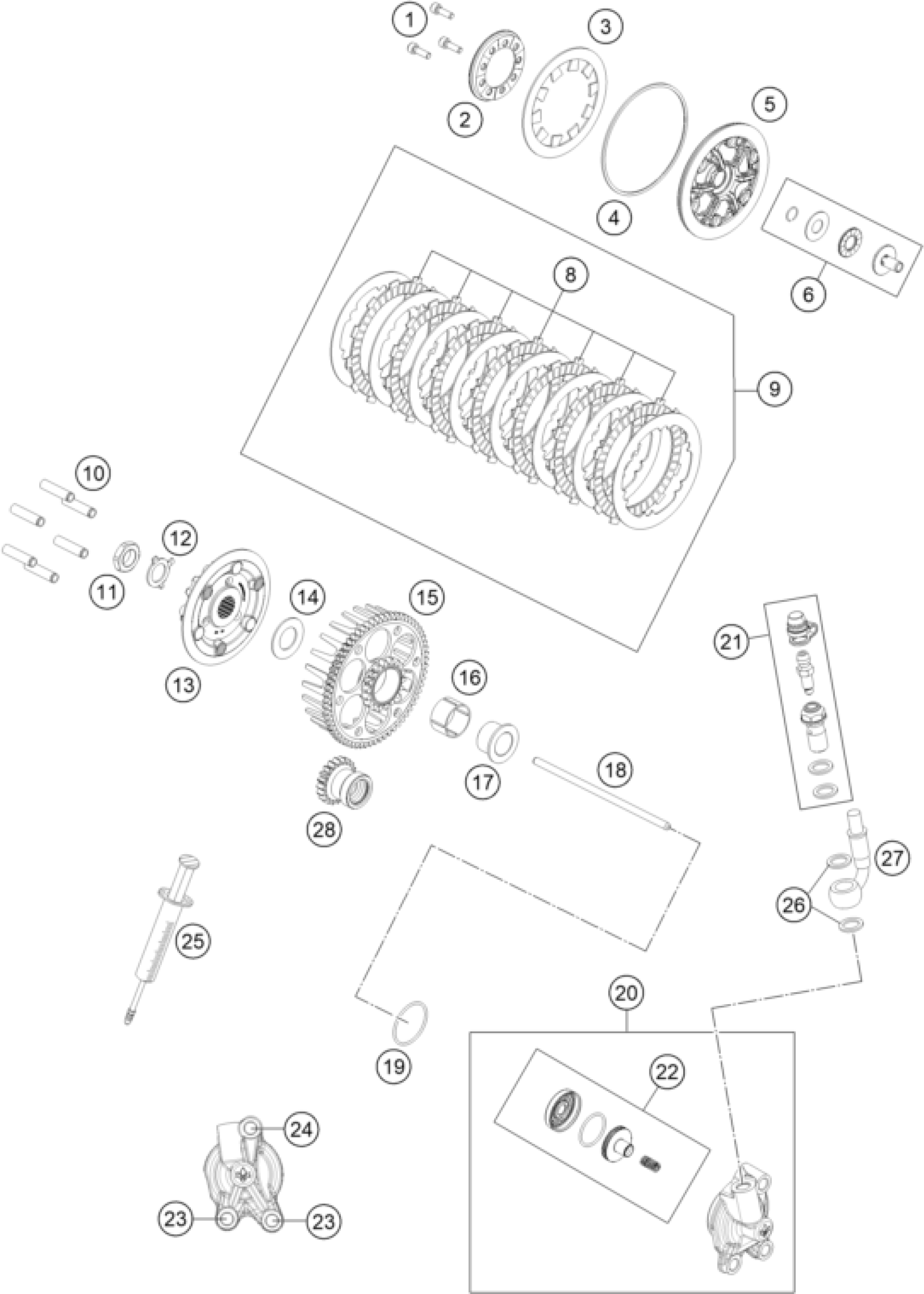

KTM 85 SX 17/14 2019 CLUTCH Diagram

#

Description
Price

1

AH collar screw DIN 912 M5x16

0912050163

$1.49

2

Spring disk

47232006000

$35.24

3

Clutch spring 58x97.1x1.5

47232005000

$32.06

4

Inner ring 94x99x1.5

47232013000

$28.70

5

coupling pressure plate

47232003000

$19.87

6

PRESSURE PIECE CPL.

78132057144

$30.75

8

lining disc 1,95mm

47232011000

$20.66

9

disc pack

47232010033

$157.07

10

Sleeve 7.95x32.2

47232004000

$3.08

11

Hexagon nut M16x1,5

47232019000

$7.56

12

Lock washer

47232018000

$5.60

13

Inner clutch hub

47232002000

$51.66

14

Support disk

47232017000

$10.56

15

clutch basket

47232001164

$235.52

16

Needle cage K263017

0405263017

$10.93

17

Collar 20x26x19

47232015000

$9.90

18

Rod

47232054000

$11.68

19

O-ring 30x1.5 NBR 70

0770300015

$2.05

20

Output cylinder cpl.

72132061044

$187.65

21

BLEEDER SCREW CPL.

72032064000

$31.97

22

Piston cmpl.

47132066000

$61.14

23

HH collar screw M6x16 TX30

0025060166

$3.08

24

HH collar screw M6x25 TX30

0025060256

$3.08

25

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

26

SEAL RING CU DIN7603- 8X12X1

0603082121

$3.08

27

CLUTCH PIPE

72032063000

$113.69

28

Gear primary drive

47232023020

$94.33
