Partiron

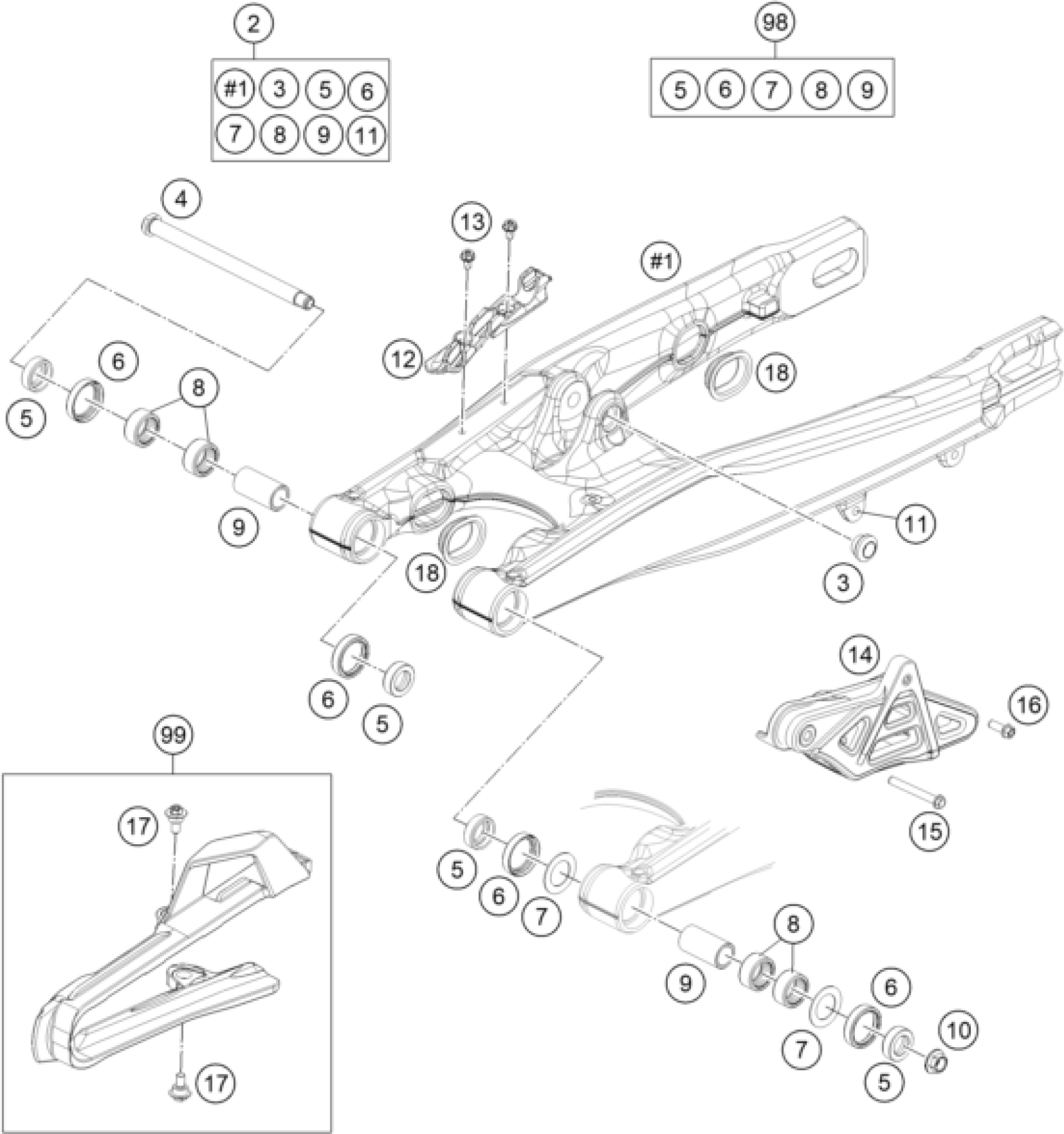

KTM 85 SX 17/14 2018 SWING ARM Diagram

#

Description
Price

2

Swing arm cpl. 85 SX/TC 18

47104030144

$661.22

3

Threaded bush M12 d20

50180105

$15.51

4

Swing arm bold 85 SX

47104037000

$72.83

5

BUCKET F.SHAFTSEALRING 15X25X9

54603090000

$12.43

6

radial shaft seal 25x32x7

0760253270

$6.63

7

Shim 20x31.9x1

59033080000

$2.05

8

NEEDLE BUSH HK 2012

50203097000

$15.51

9

BUSHING SLEEVE 15X20X38,75

50203081700

$17.20

10

hex nut M14x1.5 WS17

77204087000

$2.05

11

PRESS IN NUT M6 STEEL ZINC

54603055051

$2.05

12

BRAKE HOSE GUIDE

47113047000

$6.07

13

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

14

Chain cuide EXC

78104070100

$54.97

15

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

16

HH collar screw M6x20 TX30

0025060206

$3.08

17

SPECIAL SCREW M6X15X3

83008000015

$3.08

99

CHAIN GUARD KIT 85 SX 15

47104066010

$23.55

18

Locking cap swingarm

77204041000

$4.11

98

Swing arm bearing repair kit

47004230110

Unavailable
