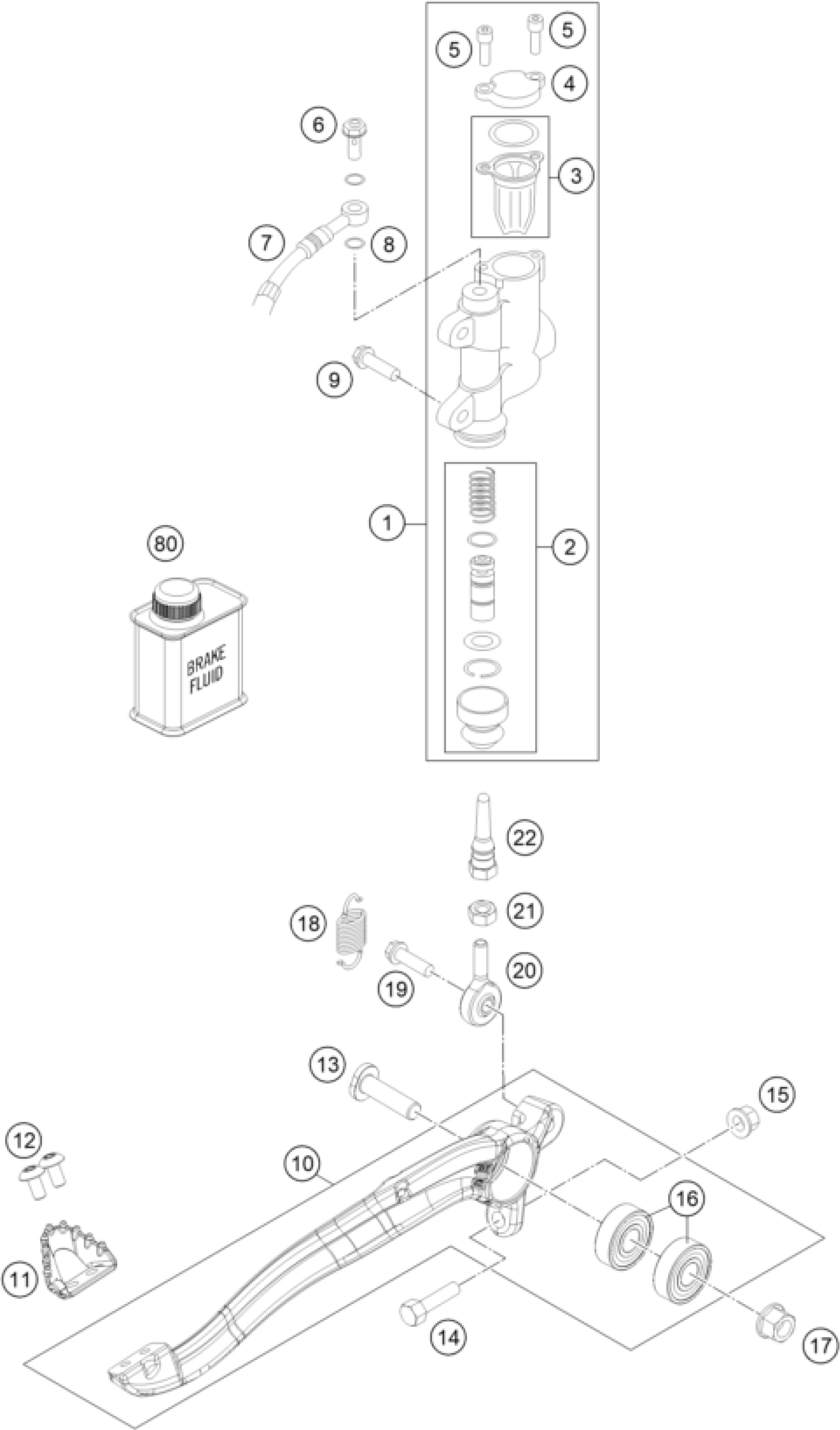

KTM 85 SX 17/14 2018 REAR BRAKE CONTROL Diagram

#

Description
Price

1

FOOTBRAKECYL.R. CPL. D=12 05

47013060300

$189.14

2

Rep.set piston, rear D=12 2004

47013061100

$75.45

3

GASKET CYLINDER COVER REAR 03

47013063000

$10.74

4

CYLINDER COVER REAR 85 SX 03

47013062000

$8.87

5

AH.SCREW DIN0912-M 4X10

0912040103

$2.05

6

Hollow screw, brake cylinder 0

47013025000

$10.84

7

BRAKE HOSE REAR 85 SX 03

47013070000

$92.28

8

O-RING 8,00X1,00 FORMULA

0770080019

$2.05

9

HH collar screw M6x16 TX30

0025060166

$3.08

10

Foot brake lever kpl.

47213050044

$85.36

11

STEP PLATE FOOT BRAKE LEVER

55413051000

$27.67

12

SCREW TORX M5X10 05

58605083010

$2.05

13

Screw foot brake lever

47213054000

$4.11

14

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

15

flanged nut M8 WS10

46030045000

$7.85

16

deep groove ball bearing SKF 6

0625060002

$12.33

17

COLLAR NUT M10 WS=13

54630044000

$1.49

18

RETURN SPRING F. BRAKE LEVER

79003062000

$5.23

19

HH collar screw M6x20 TX30

0025060206S

$2.05

20

Joint head CMP6

54813055100

$19.91

21

Hex. nut DIN 934 M6

0934060003

$1.49

22

PRESSURE ROD 85 SX 06

47013056100

$13.08

80

Brake fluid DOT5.1 0,25L

00062030000

$12.52
