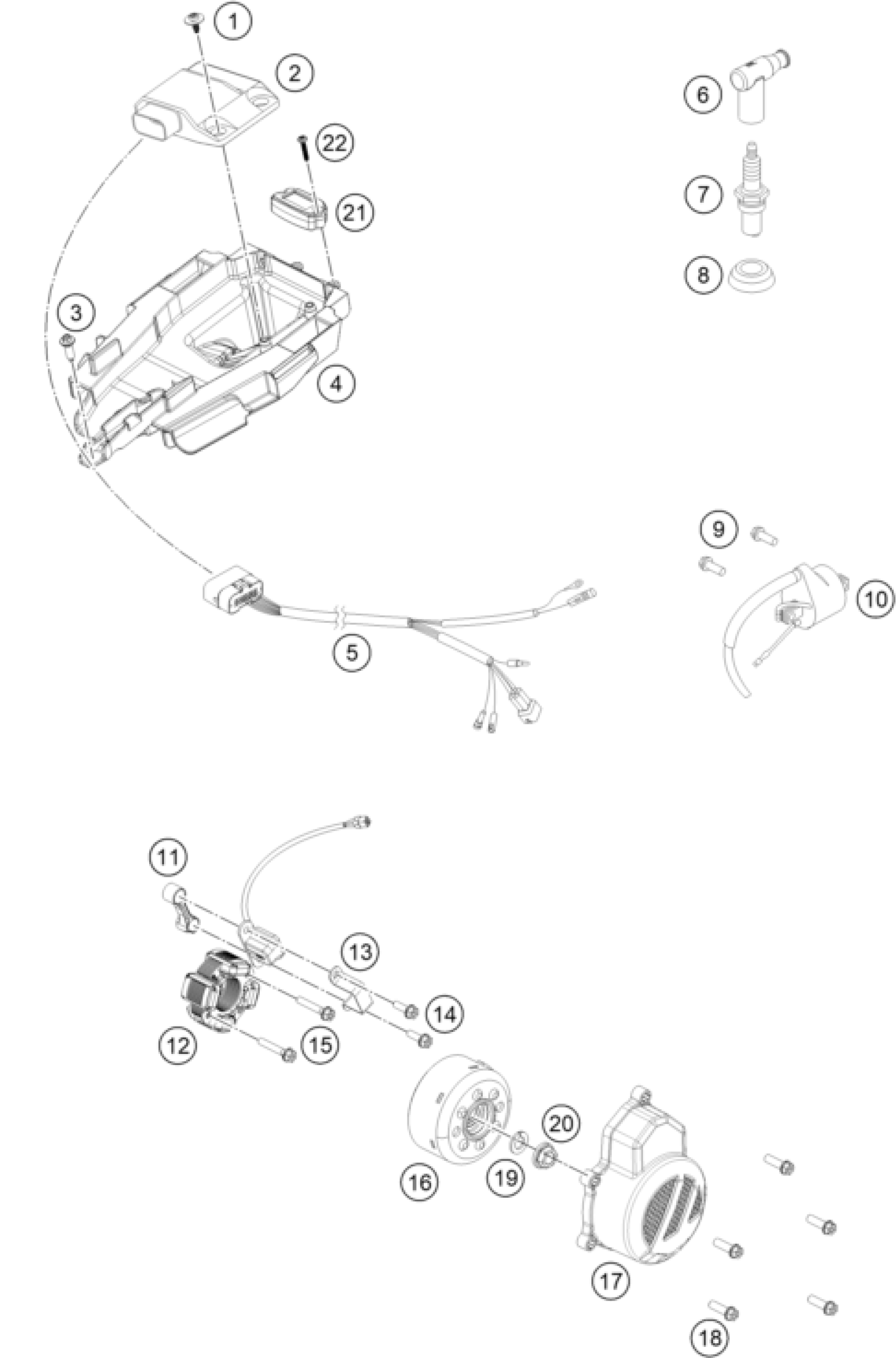

KTM 85 SX 17/14 2018 IGNITION SYSTEM Diagram

#

Description
Price

1

EJOT DELTA PT SCREW 45X12-Z

0081645121

$1.49

2

Dash board box 85 SX

47239031000

$281.99

3

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

4

Electric compartment

47211094000

$14.58

5

WIRING HARNESS FOR CDI 2-ST.07

54839032200

$78.53

6

SPARK PLUG CAP NGK REINFORC.04

47039090000

$31.44

7

SPARK PLUG

51539093000

$17.57

8

SEALING SLEEVE

50439091000

$7.38

9

COLLAR SCREW M6X18 ISA30

0026060186

$1.49

10

IGNITIONCOIL ''IG5128''

59039006000

$66.19

11

DISTANCE UNIT

50439013000

$6.07

12

STATOR

50439004000

$225.33

13

PICKUP BRACKET

50439004010

$5.23

14

HH COLLAR SCREW M 5X16 WS=6

0014050163

$2.05

15

AH SCREW DIN0912-M 5X25

0912050253

$1.49

16

ROTOR

50439005000

$202.61

17

Ignitioncover

47230002000

$32.25

18

HH collar screw M6x20 TX30

0025060206

$3.08

19

LOCKING RING VSK 12

50230029012

$2.05

20

COLLAR NUT M12X1 R/S

49030021000

$2.05

21

HOUR METER

78112020050

$56.09

22

Ejot delta PT screw 35X18

0081035183

$1.49
