Description

Price

1

Silencer 85 SX

47205079000

$371.37

2

SCREW TORX M5X10

78105081010

$2.05

3

DUMMY RIVET 4,8X 8 NIRO

0011480800

$3.08

4

O-RING 74,00X1,50 FKM 75SH

0770740015

$4.11

6

stuffingyarn package 165g

47205078165

$58.06

7

DAMP. COMPON. BLACK

77205068000

$6.54

8

Hose spring

47205058000

$5.23

9

Exhaust rubber

47205057000

$11.49

10

Manifold

47205007000

$402.51

11

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

12

O-ring 38x3 VITON

0770380030

$5.23

13

Silent block for exhaust pipe

50305012000

$19.91

14

HH collar screw M6x15 TX30

0024060156

$3.08

15

HH collar screw M6x35 TX30

0025060356

$3.08

17

Pair of washers M6 NORDLOCK

50233041000

$4.11

18

BUSHING 7.5x12x28x8.3 11

77205169000

$6.07

19

clip nut M6

54603048100

$4.11

99

EXHAUST HARDWARE KIT MINI

00050000812

$86.48

5

Endcap cpl.

47205079060

$95.74

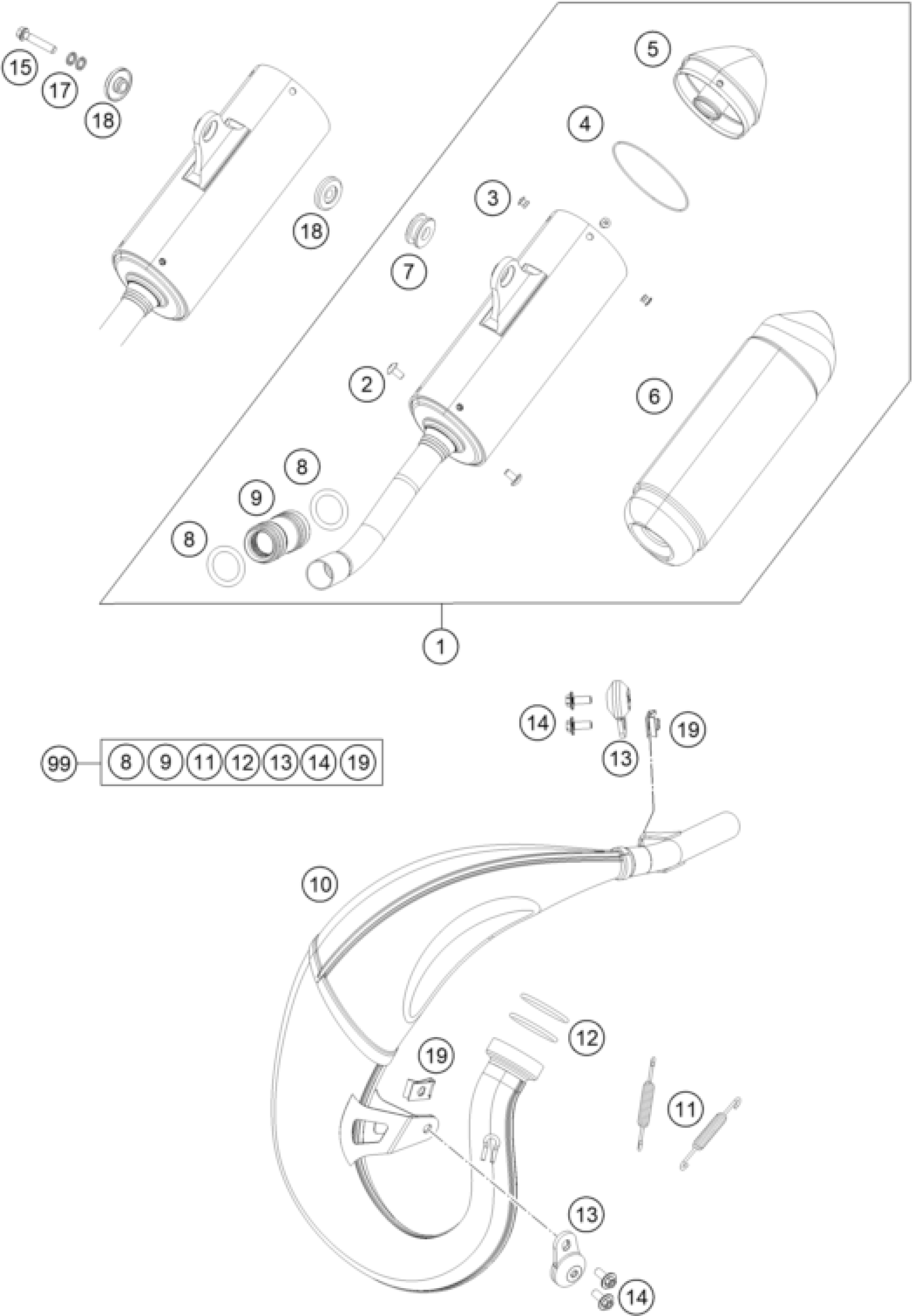

KTM 85 SX 17/14 2018 EXHAUST SYSTEM Diagram

Silencer 85 SX

SCREW TORX M5X10

DUMMY RIVET 4,8X 8 NIRO

O-RING 74,00X1,50 FKM 75SH

stuffingyarn package 165g

DAMP. COMPON. BLACK

Hose spring

Exhaust rubber

Manifold

TEN.SPRING L=62MM EY.MOVEABLE

O-ring 38x3 VITON

Silent block for exhaust pipe

HH collar screw M6x15 TX30

HH collar screw M6x35 TX30

Pair of washers M6 NORDLOCK

BUSHING 7.5x12x28x8.3 11

clip nut M6

EXHAUST HARDWARE KIT MINI

Endcap cpl.
