EXHAUST CONTROL

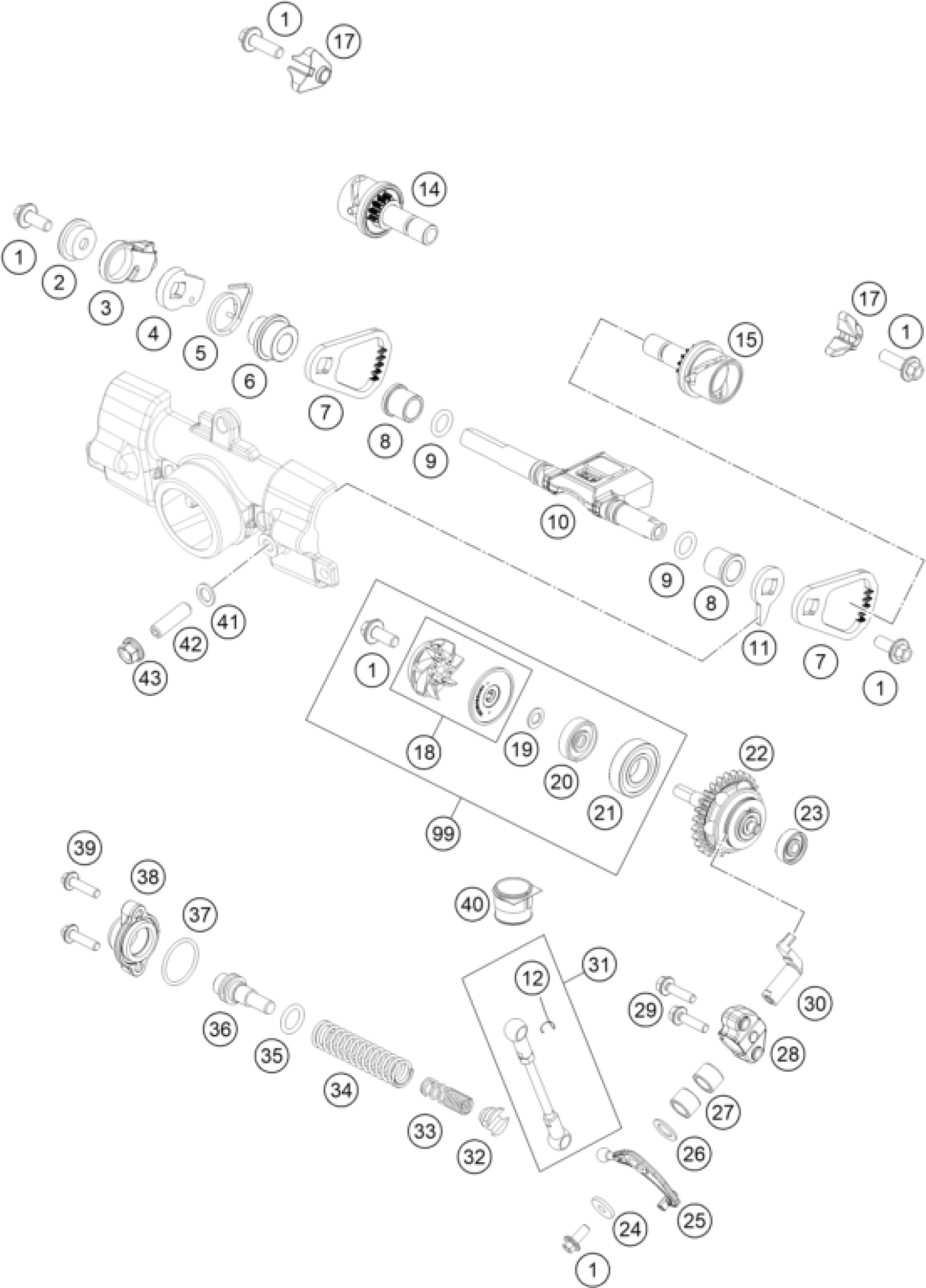

KTM 85 SX 17/14 2018 EXHAUST CONTROL Diagram
#
1
HH COLLAR SCREW M 5X12 WS=6
0014050123
$2.05
2
Bearing bush
47237068000
$5.23
3
adjusting lever
47237077000
$36.83
4
Attachment plate
47237036000
$4.11
5
Overload spring
47237066000
$2.05
6
Distance bush
47237076000
$6.63
7
Gear segment
47237067000
$5.23
8
Eshaust flap bushing
47237023000
$3.08
9
O-RING 8,00X2,0 VITON
0770080201
$1.49
10
Exhaust valve
47237020000
$76.94
11
Limit plate
47237085000
$15.61
14
Control valve, right cmpl.
47237065033
$58.62
15
Control valve, left cmpl.
47237064033
$58.24
17
guide piece
47237079000
$19.72
18
WATER PUMP WHEEL CPL.
79235055044
$15.42
19
PREFORMED WASHER
50435049000
$4.11
20
SHAFT SEAL RING 8X24X7 A DUO
0760082472
$7.66
21
BALL BEARING 16002 C3
0625160020
$19.07
22
Centrifugal governor cpl.
47237050044
$157.16
23
Ball bearing 696 DDM1 C3
0625006065
$8.50
24
WASHER DIN7349-5X15X2
0349000050
$1.49
25
angle lever
47237056000
$31.69
26
SHIM WASHER DIN988 10x16x0,5
0988101605
$1.49
27
needle sleeve HK 1010 10x14x10
0618101410
$5.98
28
BEARING SUPPORT
55437058000
$15.51
29
HH collar screw M5x25 TX30
0025050256S
$1.49
30
Adjusting lever 85/105
47237057000
$34.68
31
Linkage cpl.
47237095044
$25.05
32
SPRING INSERT
54637071200
$9.06
33
SUPPORT SPRING
50437069050
$3.08
34
Setting spring
47237072000
$7.00
35
O-RING 12,37X2,62 NBR70
0770021120
$3.08
36
SPRING GUIDE 250/300
54837075000
$14.95
37
O-RING 24,00X2,00 NBR70
0770240020
$2.05
38
COVER LID 250-380'98
54637070100
$18.69
39
HH COLLAR SCREW M 5X20 WS=6
0014050203
$3.08
99
WATER PUMP REP. KIT
50435055015
$41.13
40
Sealing element
47237091000
$7.28
41
CU-SEAL RING DIN7603-6X10X1
0603061001
$2.05
42
THREAD PIN DIN0913-M 6X20
0913060203
$1.49
43
COLLAR NUT M6X1 SW8
77336088106
$12.61
12
SECURING DIN-71805-S-8
50237195055
$2.05
