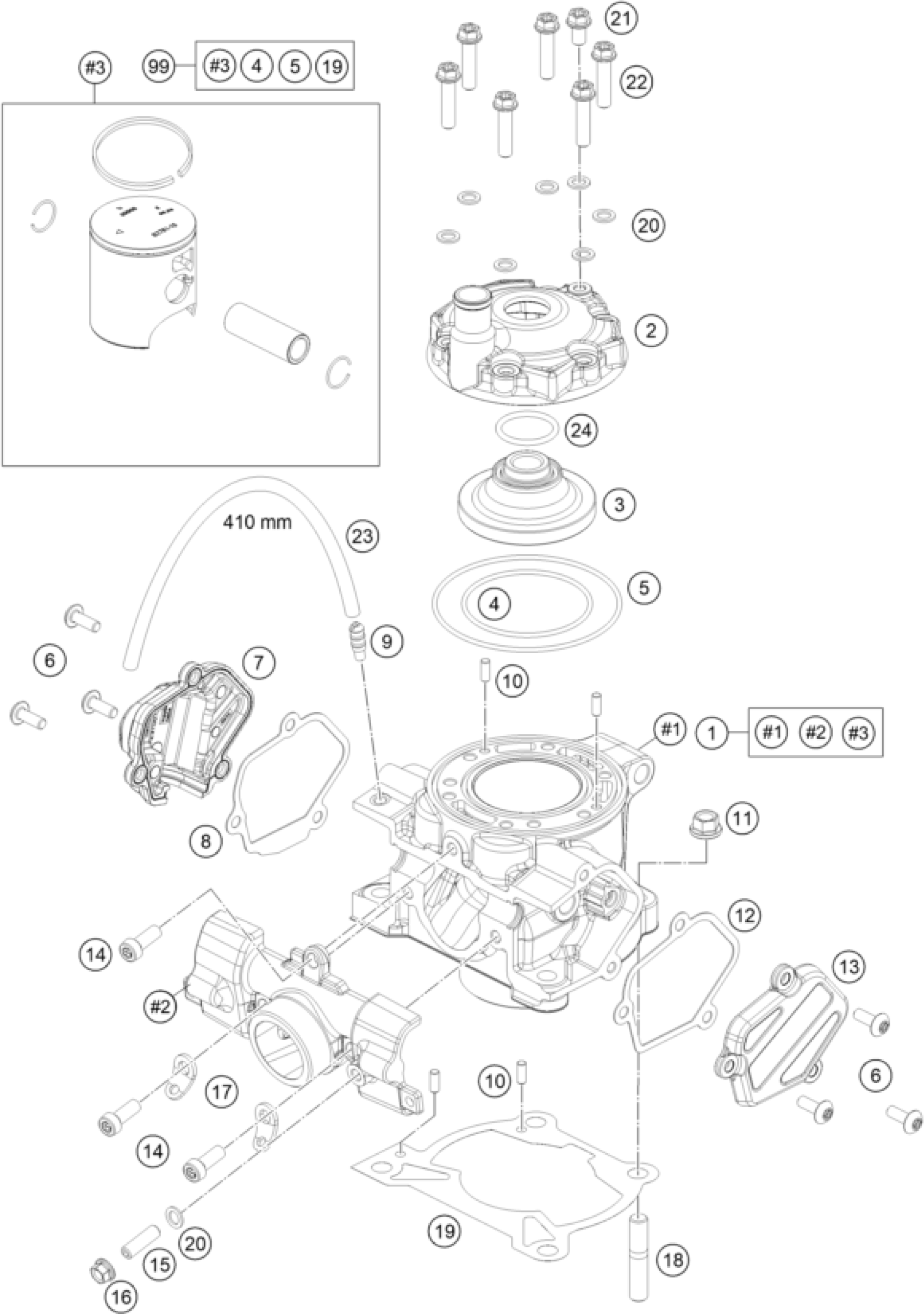

KTM 85 SX 17/14 2018 CYLINDER Diagram

#

Description
Price

1

Cylinder + piston 85SX/TC85

47230038000

$787.07

2

Cylinder head

47230006000

$39.82

3

Combustion chamber inlay

47230060000

$28.14

4

O-RING 54X2 VITON

0770540020

$10.37

5

O-RING 80,00X2,00 VITON

0770800021

$6.91

6

Oval head screw M5x14 TX25

58605083014

$3.08

7

Exhaust regulation cover rh

4723700700033

$17.38

8

Exhaust ctrl cover gasket rhs

47237008000

$4.11

9

VACUUM CONNECTION M 6X1

58336020090

$6.63

10

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

11

flanged nut M8 WS10

46030045000

$7.85

12

Exhaust ctrl cover gasket lhs

47237006000

$10.18

13

Exhaust regulation vover lh

4723700500033

$16.35

14

Cap head bold ISO 14580 M6x16

014580060166

$2.05

15

THREAD PIN DIN0913-M 6X20

0913060203

$1.49

16

COLLAR NUT M6X1 SW8

77336088106

$12.61

17

RETAINING PLATE

51005074000

$3.08

18

STUD DIN0835-M 8X25 10.9

0835080256

$3.08

19

Cylinder gasket

47230035020

Unavailable

19

Cylinder gasket

47230035075

Unavailable

19

Cylinder gasket

47230035050

Unavailable

19

Cylinder gasket

47230035040

Unavailable

19

Cylinder gasket

47230035025

Unavailable

20

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

21

HH collar screw M6x10 TX30

0025060106

$3.08

22

HH collar screw M6x25 TX30

0025060256

$3.08

99

PISTON KIT GR.I 85 SX/TC

00050000247

Unavailable

99

PISTON KIT GR.II 85 SX/TC

00050000248

Unavailable

23

PVC-HOSE 6X9

50335030001

$6.72

24

O-ring 23.00X2.5 NBR 70 SH

07702300251

$2.05
