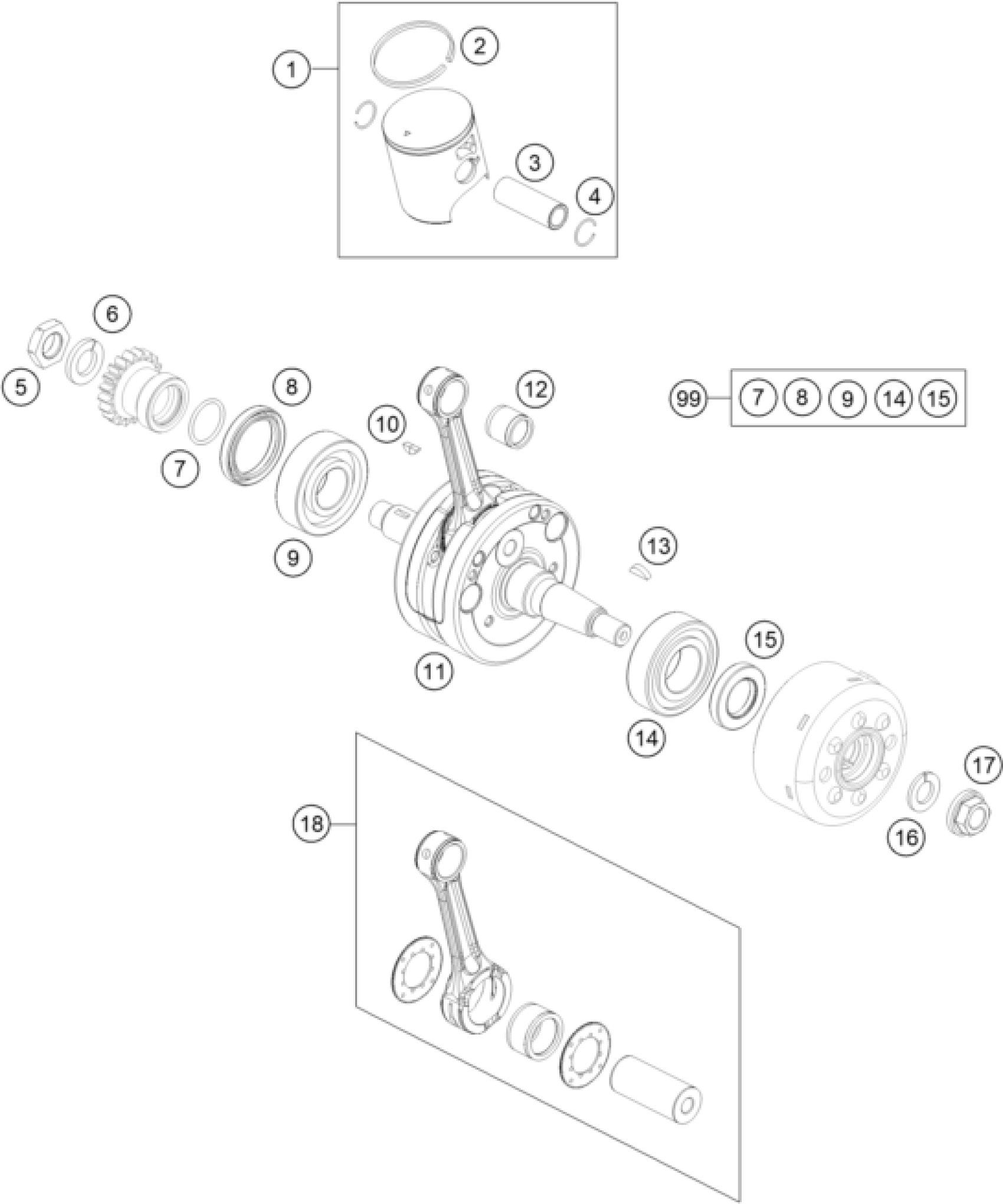

KTM 85 SX 17/14 2018 CRANKSHAFT, PISTON Diagram

Piston Cpl. Size 1

47230007000 I

$124.81

Piston Cpl. Size 2

47230007000 II

$124.81

PISTON RING 85 SX 2003

47030030000

$40.66

PISTON PIN 85 SX 2003

47030033000

$16.73

WIRE LOCK RING 85 SX 2003

47030074000

$2.05

Nut primary drive gear

47230029000

$6.44

Detent edged ring M14

47230029014

$1.49

O-RING 21X2

0770210020

$2.05

OIL SEAL

0760304261

$16.45

BALL BEARING 22X52X15

47030083000

$28.70

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

Crankshaft cpl.

47230018000

$555.48

NEEDLE BEARING KBK 14X18X17 03

47030034000

$33.65

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

cylindrical roller bearing NJ2

49030023000

$74.42

SEAL SHAFT RING 20X35X6 BTSL

47030076100

$21.50

LOCKING RING VSK 12

50230029012

$2.05

COLLAR NUT M12X1 R/S

49030021000

$2.05

CONNECTING ROD REPAIR SET

47030015300

$277.41

Crankshaft rep. kit 85

00050002318

$90.97
