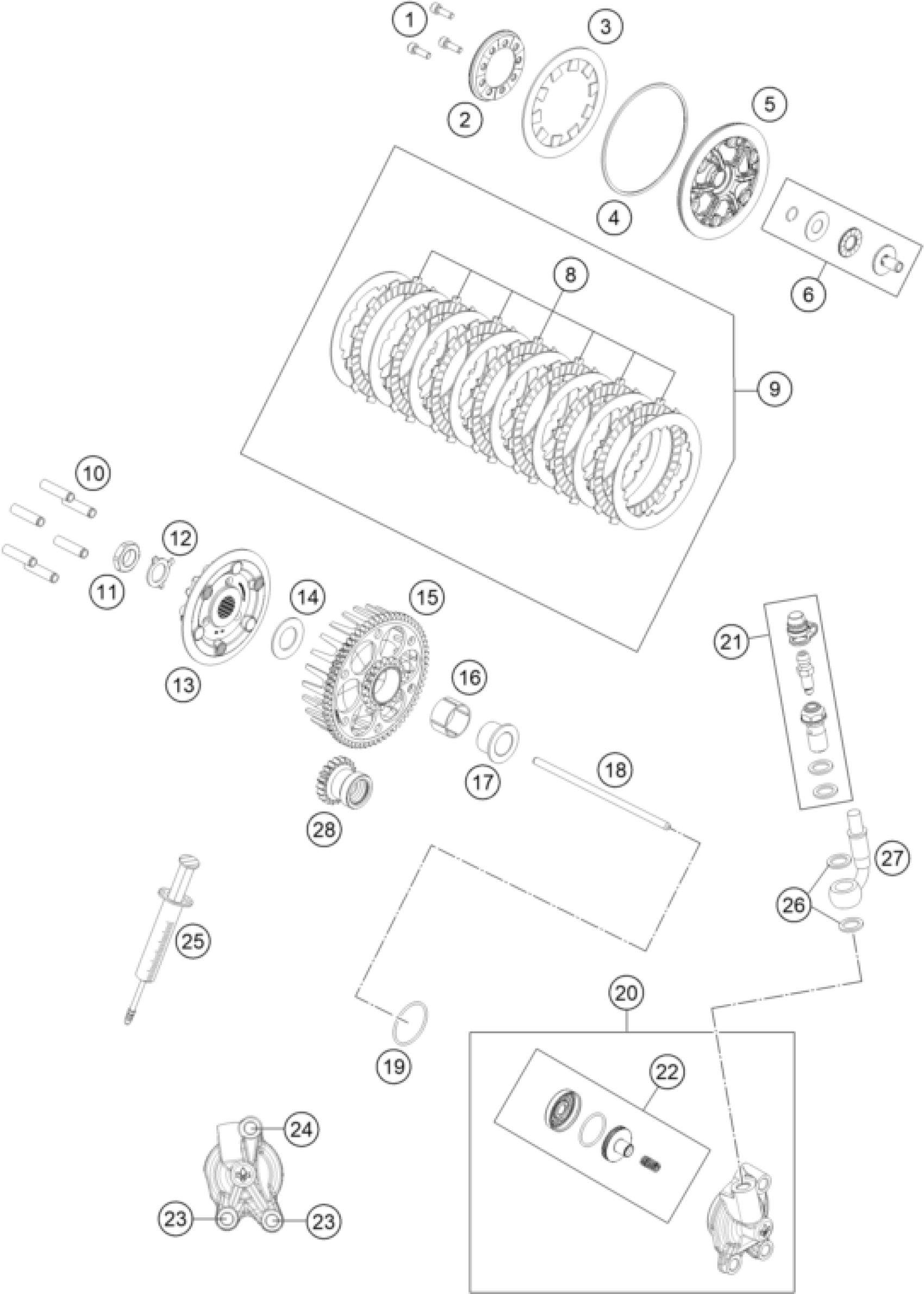

KTM 85 SX 17/14 2018 CLUTCH Diagram
#
Description
Price
1
AH collar screw DIN 912 M5x16
0912050163
$1.49
2
Spring disk
47232006000
$35.24
3
Clutch spring 58x97.1x1.5
47232005000
$32.06
4
Inner ring 94x99x1.5
47232013000
$28.70
5
coupling pressure plate
47232003000
$19.87
6
PRESSURE PIECE CPL.
78132057144
$30.75
10
Sleeve 7.95x32.2
47232004000
$3.08
11
Hexagon nut M16x1,5
47232019000
$7.56
12
Lock washer
47232018000
$5.60
13
Inner clutch hub
47232002000
$51.66
14
Support disk
47232017000
$10.56
15
Clutch basket
47232001064
$235.52
16
Needle cage K263017
0405263017
$10.93
17
Collar 20x26x19
47232015000
$9.90
18
Rod
47232054000
$11.68
8
lining disc 1,95mm
47232011000
$20.66
9
disc pack
47232010033
$157.07
19
O-ring 30x1.5 NBR 70
0770300015
$2.05
20
Output cylinder cpl.
72132061044
$187.65
21
BLEEDER SCREW CPL.
72032064000
$31.97
22
Piston cmpl.
47132066000
$61.14
23
HH collar screw M6x16 TX30
0025060166
$3.08
24
HH collar screw M6x25 TX30
0025060256
$3.08
25
VENT INJEKTION HYDR. CLUTCH
50329050000
$75.26
27
CLUTCH PIPE
72032063000
$113.69
28
Gear primary drive
47232023020
$94.33
26
SEAL RING CU DIN7603- 8X12X1
0603082121
$3.08
