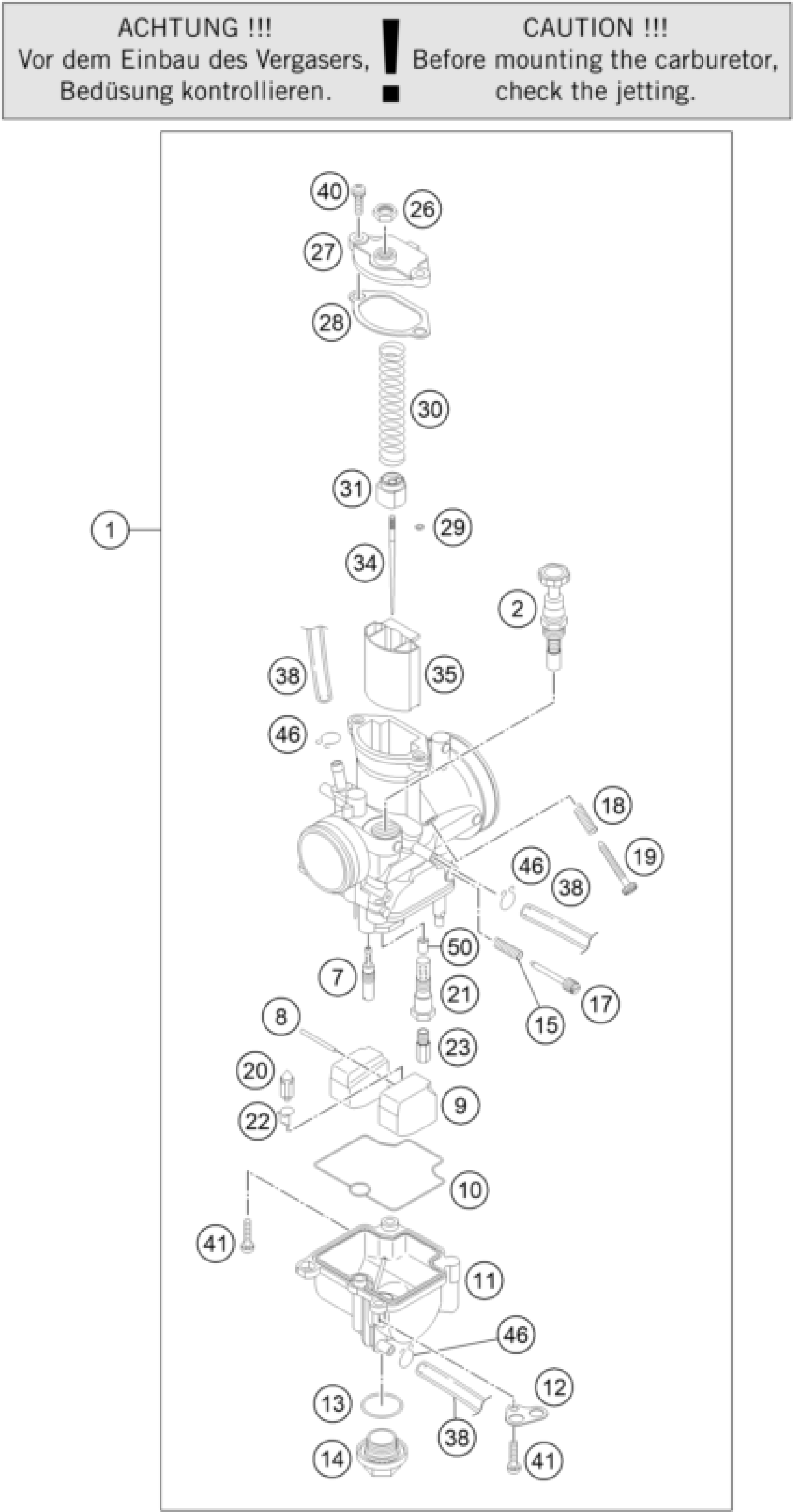

KTM 85 SX 17/14 2018 CARBURETOR Diagram

#

Description
Price

1

Carburetor Keihin PWK 28 18

47231001044

$364.55

2

STARTER PISTON CPL.

54631245000

$89.94

7

IDLE JET 40 KEIHIN

54531607040

Unavailable

7

IDLE JET 42 KEIHIN

54531607042

Unavailable

7

IDLE JET 45 KEIHIN

54531607045

Unavailable

7

IDLE JET 48 KEIHIN

54531607048

$12.61

7

IDLE JET 50 KEIHIN

54531607050

Unavailable

7

IDLE JET 52 KEIHIN

54531607052

Unavailable

8

ARM PIN FLOAT

57331008000

$2.05

9

FLOAT CPL. PWK28 03

47031009000

$46.84

10

FLOAT CHAMBER GASKET

47031010000

$8.13

11

FLOAT CHAMBER COMP. ASSY

72531011000

$89.10

12

RETAINING PLATE FOR BLEEDER

54531612100

$3.08

13

O-RING 18,00X2,30 NBR 70

0770180230

$3.08

14

PLUG M 18X1

54531699000

$20.09

15

SPRING FOR ADJUSTMENT SCREW

54531615000

$3.08

17

ADJUSTMENT SCREW

54531617000

$8.50

18

SPRING

54631118000

$9.81

19

ADJUSTMENT SCREW M 5

54631219100

$17.01

20

FLOAT NEEDLE CPL.

47031020000

$27.67

21

NEEDLE JET HOLDER 14

72531022000

$22.71

22

CLAMP

54531621000

$4.11

23

Main Jet 138 Keihin

54531623138

Unavailable

23

MAIN JET GR 140

54531623140

Unavailable

23

MAIN JET 142 KEIHIN

54531623142

$12.52

23

Main jet 145

54531623145

Unavailable

23

MAIN JET 148 KEIHIN

54531623148

Unavailable

23

MAIN JET 150 KEIHIN

54531623150

Unavailable

23

MAIN JET 152 KEIHIN

54531623152

Unavailable

26

HEXAGON NUT M 6X0,75 DIN0439

52031126000

$8.41

27

CARBURETOR COVER PWK28 03

47031027000

$29.82

28

CARBURETOR COVER GASKET PWK28

47031028000

$6.26

29

CLIP FOR JET NEEDLE

54531629000

$3.08

30

THROTTLE VALVE SPRING

47031030000

$10.18

31

SPRING CAP

47031031000

$7.56

34

Jet needle Keihin NRKA

47231034000

Unavailable

34

Jet needle Keihin NRKB

47231034100

Unavailable

34

Jet Needle Keihin NRKC

47231034200

$10.84

34

Jet needle Keihin NRKD

47231034300

Unavailable

34

Jet needle Keihin NRKE

47231034400

Unavailable

34

Jet needle Keihin NRJA

47231134000

Unavailable

34

Jet needle Keihin NRJB

47231134100

Unavailable

34

Jet needle Keihin NRJC

47231134200

Unavailable

34

Jet needle Keihin NRJD

47231134300

Unavailable

34

Jet needle Keihin NRJE

47231134400

Unavailable

34

Jet needle Keihin "NRJC"

54531636012

Unavailable

35

Throttle valve "3.0" Keihin

47231035000

$171.66

38

PVC-HOSE 4X6MM

31007007101

$4.11

40

HH COLLAR SCREW M 4X16 WS=6

0016040163

$2.05

41

FLAT HEAD SCREW DIN7985-M 4X16

0985040163

$2.05

46

Clamp 6mm

54531696000

$3.08

50

Needle Jet

47231021000

$10.56
