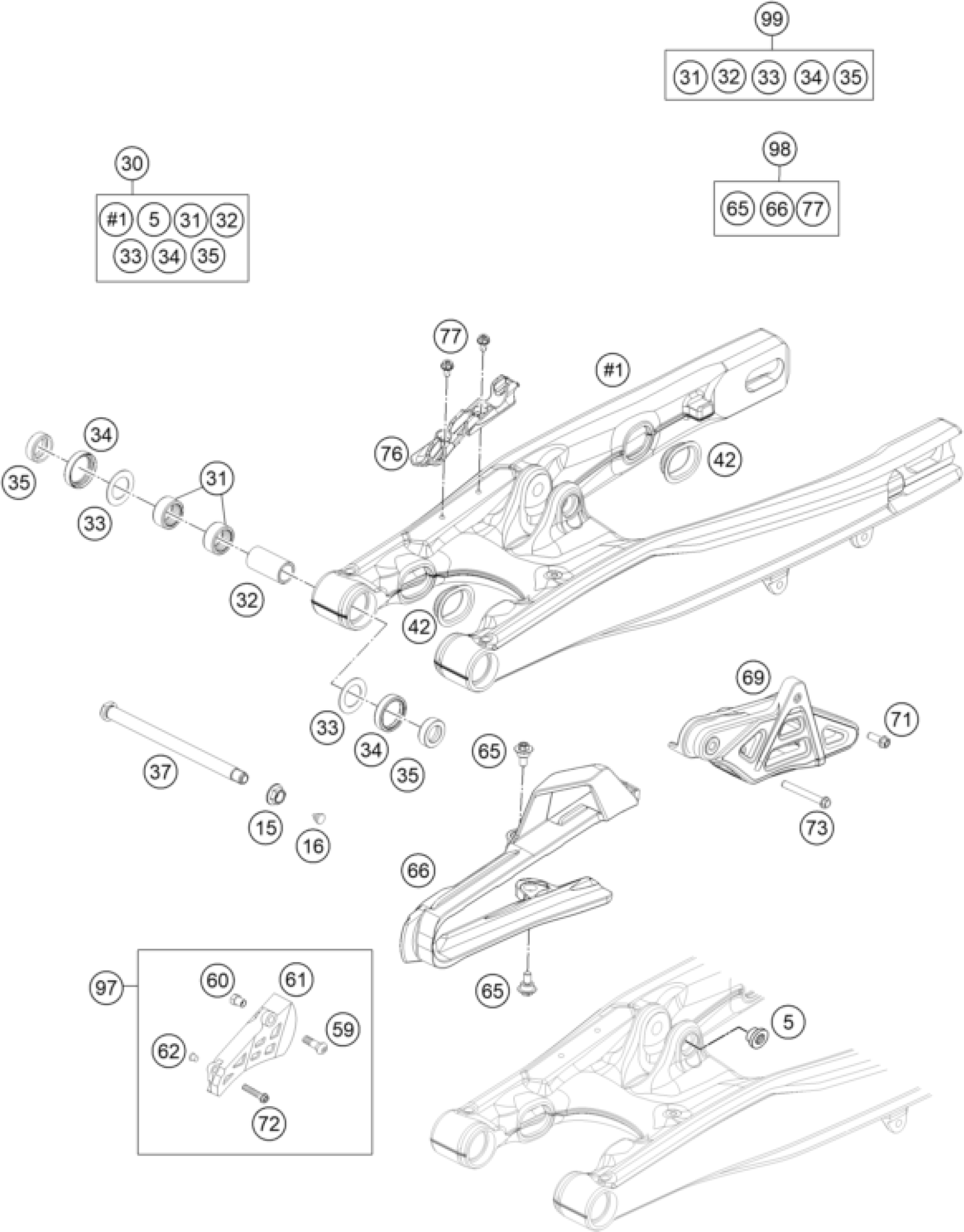

KTM 85 SX 17/14 2015 SWING ARM Diagram

#

Description
Price

5

Threaded bush M12 d20

50180105

$15.51

15

hex nut M14x1.5 WS17

77204087000

$2.05

16

PLASTIC CAP SFL10

54403135000

$2.05

30

SWINGARM 85SX CPL. 2015

47104030044

$661.22

31

NEEDLE BUSH HK2012V

59004031000

$15.51

32

BUSHING SLEEVE 15X20X38,75

50203081700

$17.20

34

radial shaft seal 25x32x7

0760253270

$6.63

35

BUCKET F.SHAFTSEALRING 15X25X9

54603090000

$12.43

37

Swing arm bold 85 SX

47104037000

$72.83

33

Shim 20x31.9x1

59033080000

$2.05

65

Special screw M6x15x5.5

83008100015

$3.08

42

Locking cap swingarm

77204041000

$4.11

59

COUNTER-SUNK SCREW ISA45 M8X20

0019080206

$2.05

60

THREADED BUSH FOR CHAIN GUARD

47030060051

$5.23

61

CHAIN GUARD 85 SX 2003

47007061000

$13.92

62

spacer bushing for speedometer

58314060050

$5.23

66

Chain sliding guard

47104066000

$19.81

69

Chain cuide EXC

78104070100

$54.97

71

HH collar screw M6x20 TX30

0025060206

$3.08

72

HH collar screw M6x30 TX30

0025060306

$3.08

73

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

76

BRAKE HOSE GUIDE

47113047000

$6.07

77

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

97

SPROCKET COVER KIT

47007061010

Unavailable

98

CHAIN GUARD KIT 85 SX 15

47104066010

$23.55

99

Swing arm bearing repair kit

47004230110

Unavailable
