ENGINE CASE

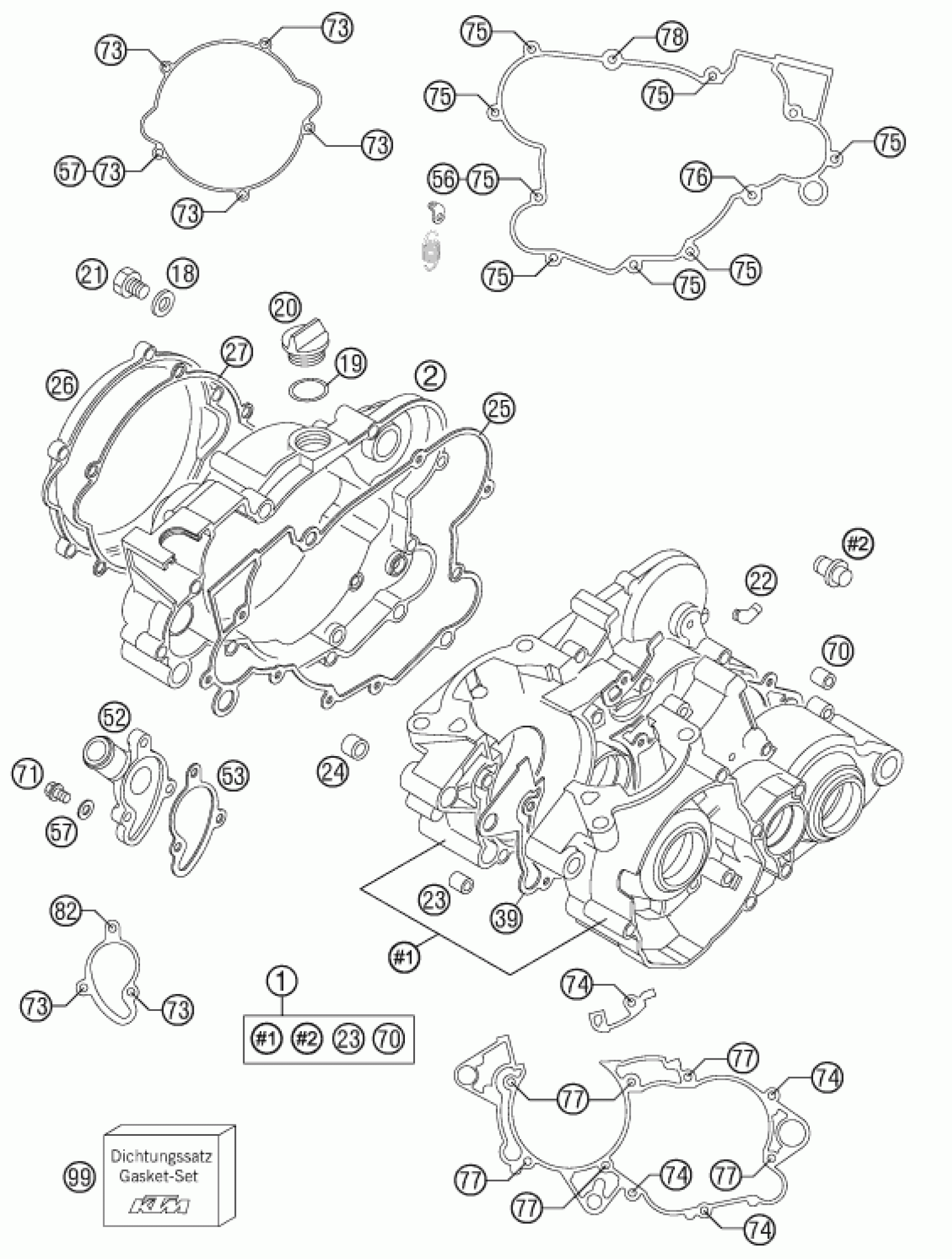

KTM 85 SX 17/14 2014 ENGINE CASE Diagram
#
Description
Price
1
ENGINE CASE CPL. 85 SX 2008
47030000144
$391.85
2
CLUTCH COVER 85 SX 06
47030001100
$170.35
18
COPPER GASKET 10,2X14X2 MM 01
0603101420
$3.08
19
O-RING 16,00X3,00 NBR 70
0770160030
$2.05
20
OIL FILLER CAP M24x3 W. O-R
58030120000
$8.03
21
OIL DRAIN PLUG M10 WS=13
46030021100
$13.46
22
ANGLE PIECE 50CCM LC 2001
45130022000
$5.88
23
DOWEL 13X13
47030023100
$5.10
24
DOWEL 7X9X10
45130023000
$5.23
25
INNER CLUTCH COVER GASKET
47030025000
$17.48
26
CLUTCH COVER OUTSIDE
47030026000
$87.69
27
GASKET FOR OUTER CLUTCH COVER
47030027100
$11.96
39
GASKET F. ENGINE CASE 85 SX 03
47030039000
$17.57
52
WATER PUMP COVER 85 SX 2003
47035052000
$41.04
53
GASKET FOR WATER PUMP COVER 03
47035053000
$10.84
56
SPRINGHOLDER
47003071000
$9.06
57
CU-SEAL RING DIN7603-6X10X1
0603061001
$2.05
70
DOWEL 14,5X19
47030023000
$7.00
71
HH collar screw M6x10 TX30
0025060106
$3.08
73
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
74
HH collar screw M6x25 TX30
0025060256
$3.08
75
HH COLLAR SCREW M 6X30 SW=8
0015060303
$3.08
76
HH collar screw M6x35 TX30
0025060356
$3.08
77
HH collar screw M6x40 TX30
0025060406
$3.08
78
HH COLLAR SCREW M6X45 TX30
0025060456
$2.05
82
HH COLLAR SCREW M 6X65 WS=8
0015060653
$2.05
99
GASKET SET CPL. 85/105SX 04
47030099100
$191.67
