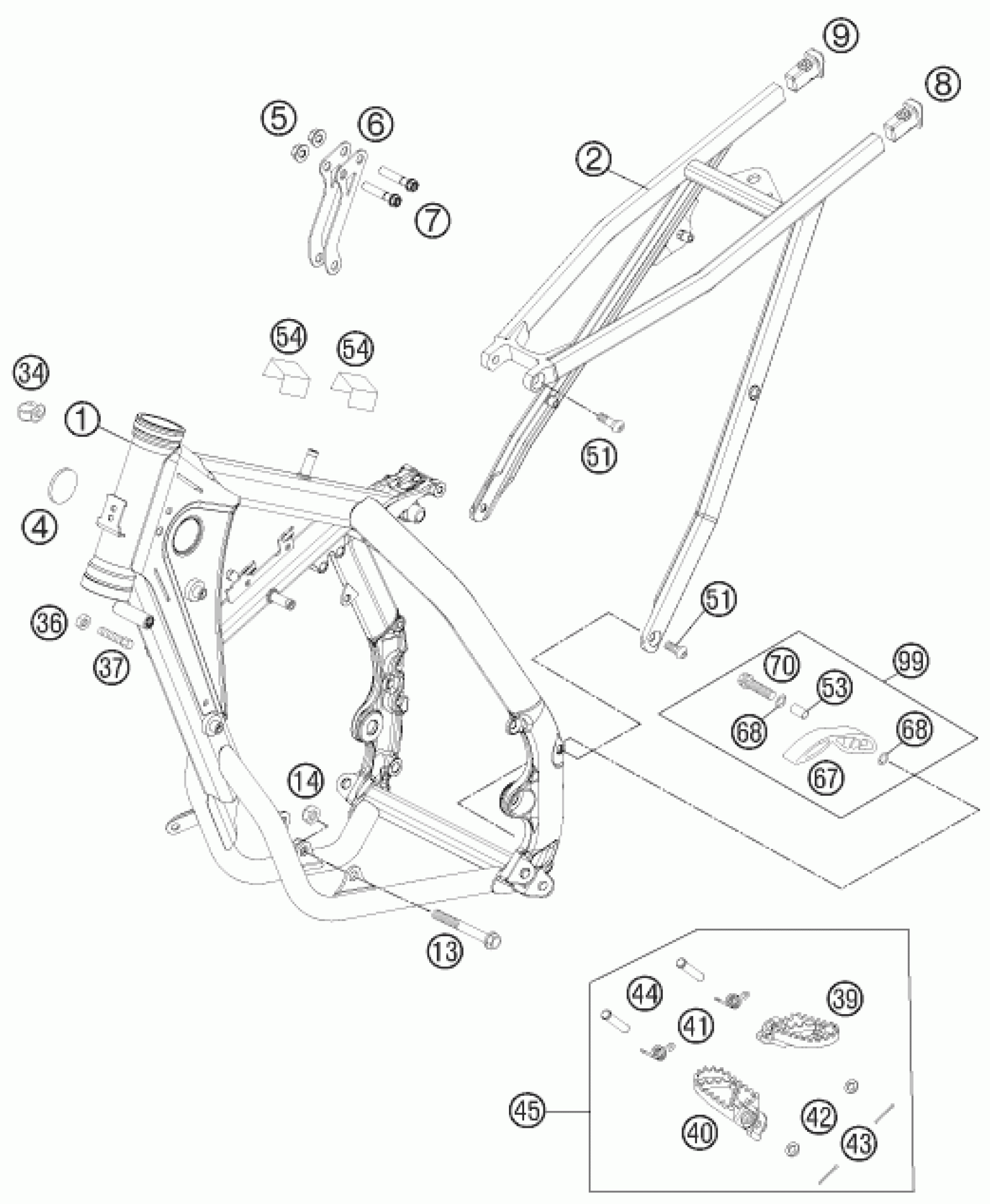

KTM 85 SX 17/14 2013 FRAME Diagram

#

Description
Price

2

SUB FRAME

47103002000

$305.55

4

PLUG 37MM

54606004000

$2.05

13

ENGINE BRACKET SCREW 85 SX

47003013000

$8.41

14

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

34

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

36

Hexagon nut DIN934 M8

0934080003

$2.05

37

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

39

FOOT PED L/S EXC SILVER 00

59003040050

$43.84

40

FOOT PED R/S EXC SILVER 2000

59003041050

$42.72

41

FOOTREST SPRING L/S & R/S

54603041000

$5.23

42

washer DIN 125 A 10.5

0125100003

$2.05

43

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

44

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

51

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

45

FOOTPEG L.+R. CPL. 85 SX 03

4700304003390

$110.13

53

BUSHING 8,2X10X20

51103053051

$4.11

54

ADH. FOIL TRANSP. 80X80 MM 04

50307012000

$2.05

67

CHAIN SLIDING PIECE BELOW '97

51103053000

$9.15

68

LOCK WASHER 8MM

36003014000

$2.05

70

HH collar screw M8x30

0025080306

$3.08

99

CHAIN SLIDING KIT BELOW MINI

51103053110

$19.53

7

HH collar screw M8x35 TX40

0025080356

$4.11

5

Self locking nut M8 10.9

54310086200

$3.08

6

REINFORCING

47103013000

$7.56

8

SUB FRAME APPLICAT. LEFT 08

78003002010

Unavailable

9

SUB FRAME APPLICATION R/S 08

78003002020

Unavailable

1

FRAME ''471M3'' ANTHR.-MET.

47103001000BE

$1,144.10
