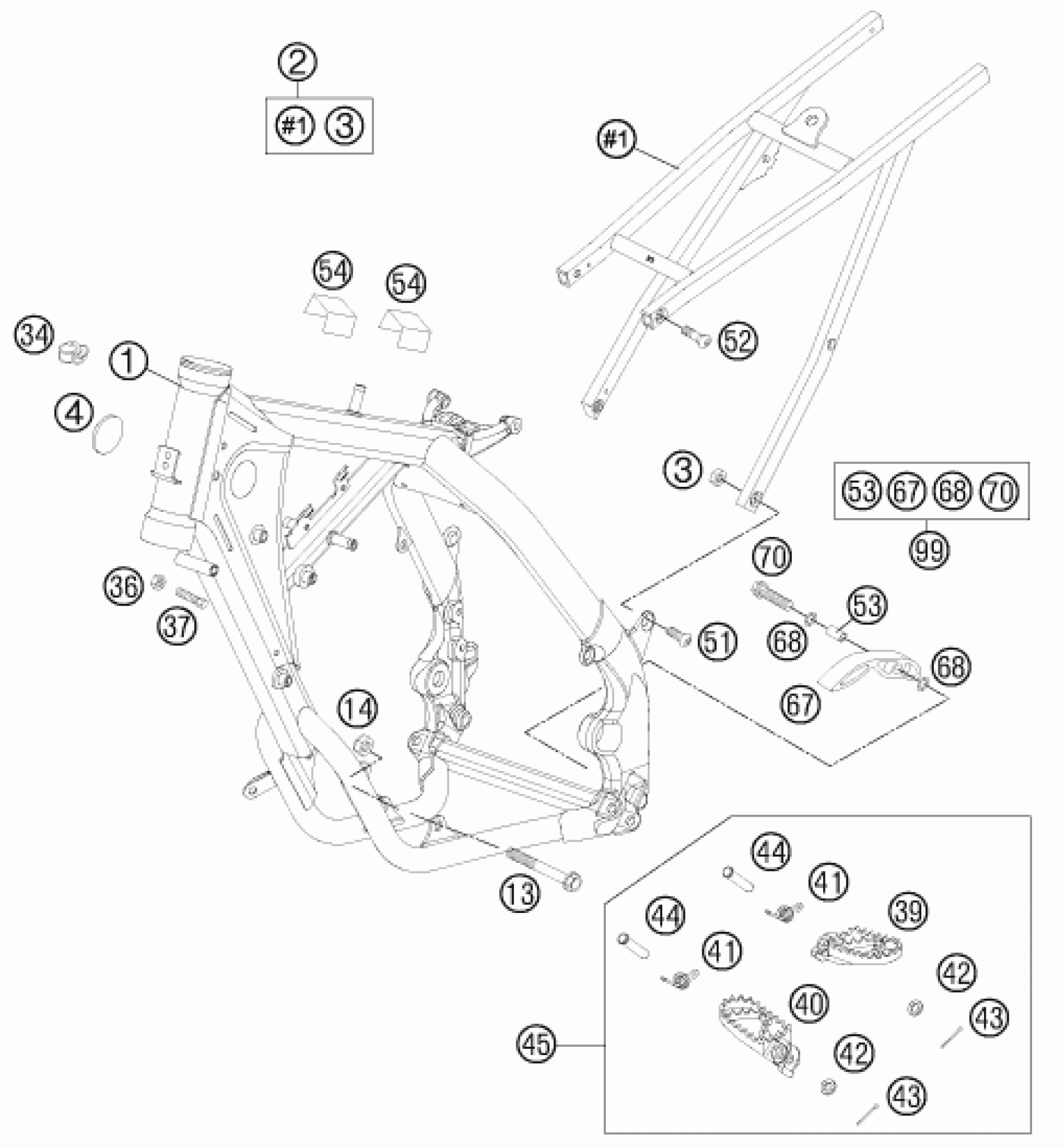

KTM 85 SX 17/14 2012 FRAME Diagram
#
Description
Price
2
SUB FRAME 85 SX 06
47003002144
$258.20
1
FRAME CPL. 85 SX ''AA06''
4700300120030
$700.01
3
HEXAGON NUT DIN 934 M8
0934080006
$1.73
4
PLUG 37MM
54606004000
$2.05
13
ENGINE BRACKET SCREW 85 SX
47003013000
$8.41
14
SELF LOCKING NUT M10 CU WS=14
54310086100
$2.05
34
CABLE SUPPORT KHS NR.150-47610
58111076000
$4.11
36
Hexagon nut DIN934 M8
0934080003
$2.05
37
SPECIAL SCREW M8X26 WS=10
59001037000
$3.08
39
FOOT PED L/S EXC SILVER 00
59003040050
$43.84
40
FOOT PED R/S EXC SILVER 2000
59003041050
$42.72
41
FOOTREST SPRING L/S & R/S
54603041000
$5.23
42
washer DIN 125 A 10.5
0125100003
$2.05
43
PIN DIN0094-3,2X25 STEEL
0094032253
$1.49
44
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
$12.43
45
FOOTPEG L.+R. CPL. 85 SX 03
4700304003390
$110.13
51
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
$2.05
52
COUNTER-SUNK SCREW ISA45 M8X26
0019080266S
$3.08
53
BUSHING 8,2X10X20
51103053051
$4.11
54
METAMOLL FOR BATTERY BRACKET
58711054050
$2.05
67
CHAIN SLIDING PIECE BELOW '97
51103053000
$9.15
68
LOCK WASHER 8MM
36003014000
$2.05
70
HH collar screw M8x30
0025080306
$3.08
99
CHAIN SLIDING KIT BELOW MINI
51103053110
$19.53
