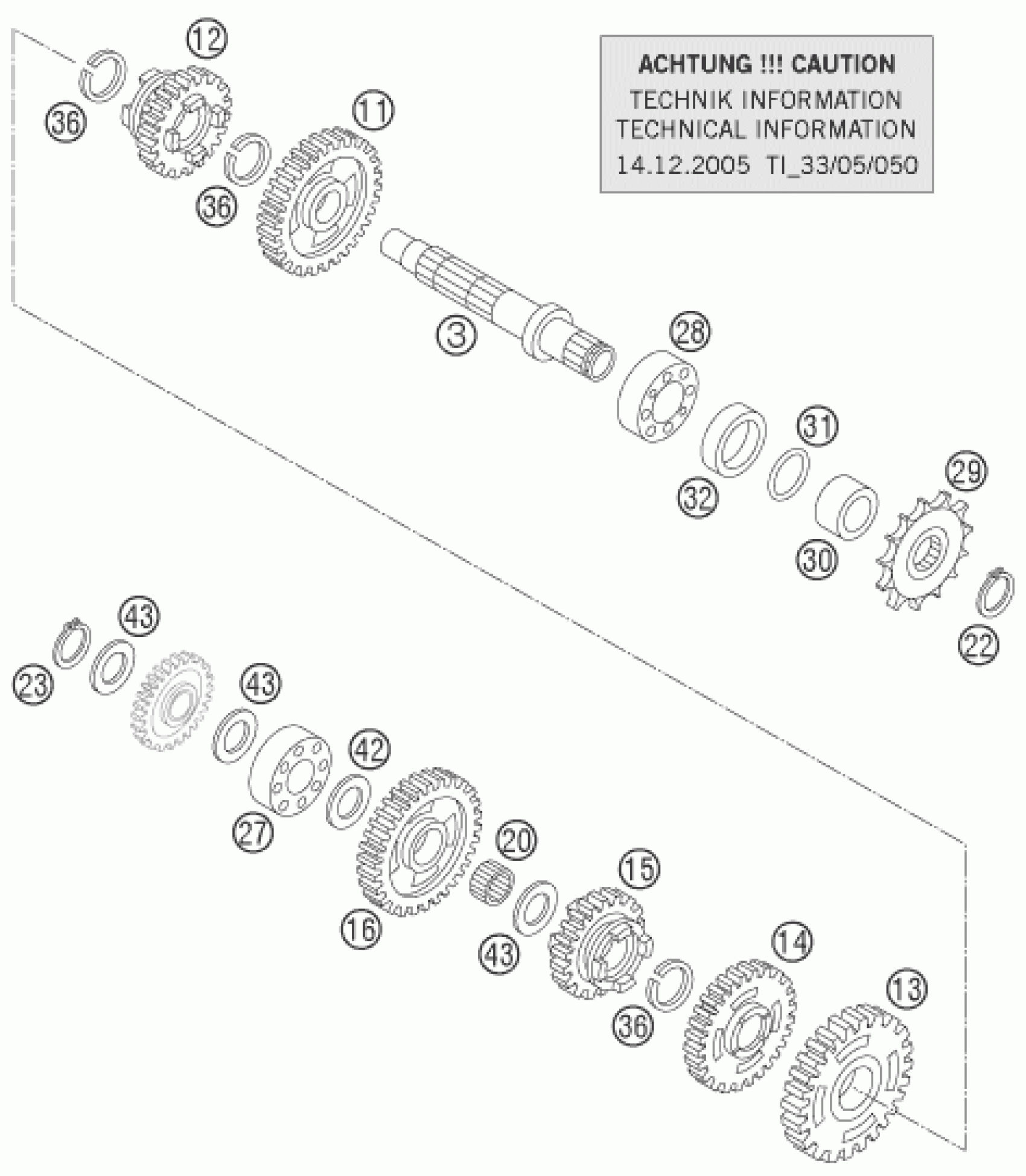

KTM 85 SX 17/14 2006 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

3

COUNTERSHAFT 85 SX 2003

47033003000

Unavailable

11

IDLER GEAR 2ND G. 28-T 03

47033011000

Unavailable

12

SLIDING GEAR 6TH G. 21-T 03

47033012000

Unavailable

13

IDLER GEAR 3ND G. 26-T 03

47033013000

Unavailable

14

IDLER GEAR 4TH G. 26-T 03

47033014000

Unavailable

15

SLIDING GEAR 5TH G. 25-T 03

47033015000

Unavailable

16

IDLER GEAR 1ST G. 29-T 03

47033016000

Unavailable

20

NEEDLE BEARING K15X19X10S

47033099000

Unavailable

22

CIRCLIP AS20X1,75

49033091000

Unavailable

23

CIRCLIP DIN0471-15X1

0471150010

Unavailable

27

BALL BEARING 16002

0625160026

Unavailable

28

Grooved ball bearing 6204 JR2

0625062041

Unavailable

29

ENGINE SPROCKET 13-T 85 SX 03

47033029013

Unavailable

29

ENGINE SPROCKET 14-T 85 SX 03

47033029014

Unavailable

30

SPACER FOR SPROCKET

47033030000

Unavailable

31

O-RING 18,77X1,78

46033031000

Unavailable

32

SHAFT SEAL RING 26X35X6

0760263560

Unavailable

36

CIRCLIP SW21

0417210120

Unavailable

42

STOP DISC 15X25X1

47033040000

Unavailable

43

STOP DISC 15X25X0,5

47033043000

Unavailable
