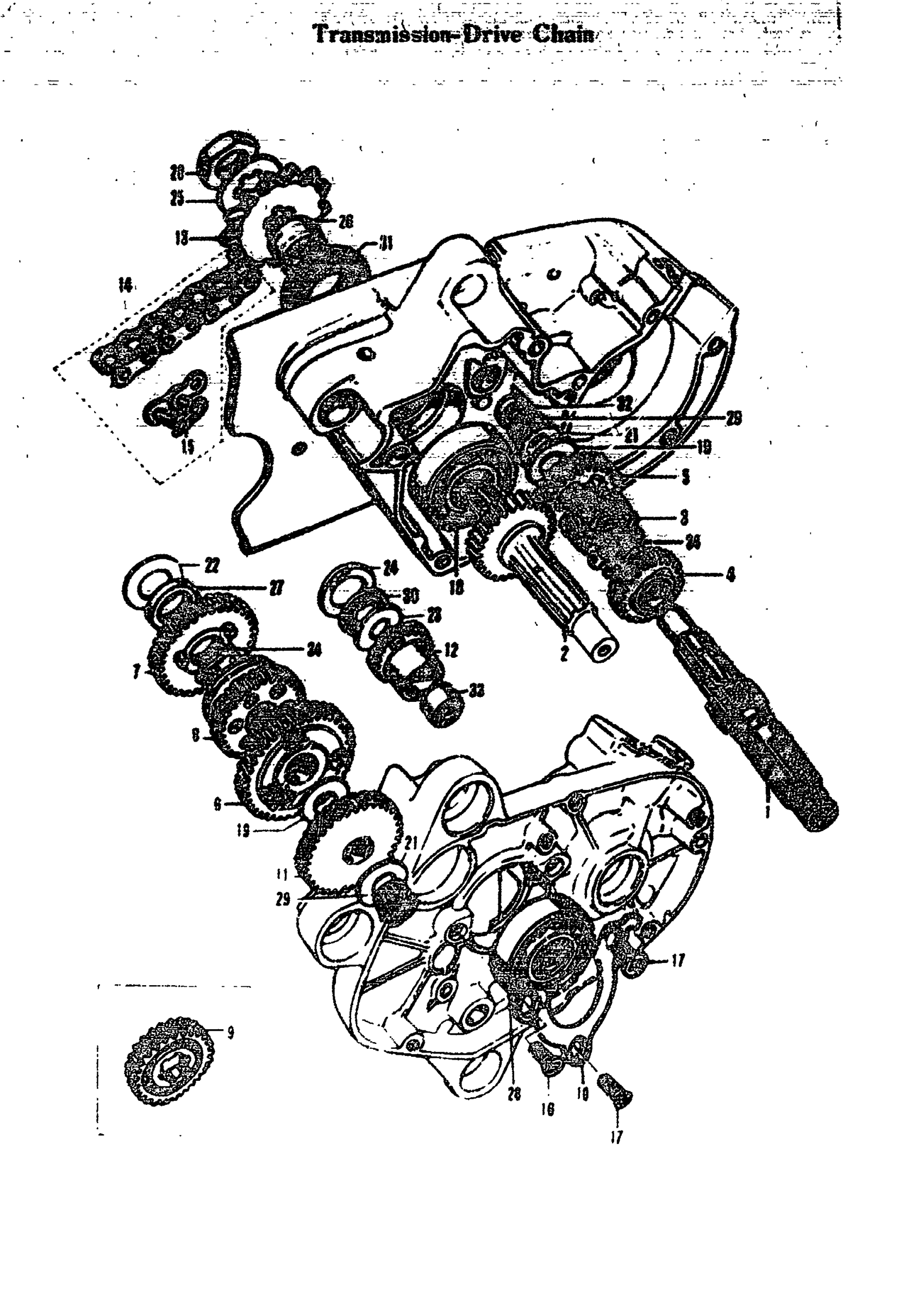

Suzuki 80K10P (1968) TRANSMISSION-DRIVE CHAIN Diagram

#

Description
Price

1

SHAFT,COUNTER | P; N.T.=13 This part replaces 24121-03100.

24121-03101

Unavailable

2

DRIVER SHAFT | P; N.T.=30

24131-03101

Unavailable

3

SECOND PINION | P; N.T.=19

24221-03001

Unavailable

4

NO DESCRIPTION AVAILABLE | P; N.T.=23 This part replaces 24231-03001.

24231-03002

Unavailable

5

TEP PINION | P; N.T.=28

24241-03001

Unavailable

6

GEAR,1ST DRIVEN | P; N.T.=43 This part replaces 24310-03002.

24310-03003

Unavailable

7

NO DESCRIPTION AVAILABLE | P; N.T.=29 This part replaces 24320-03000.

24320-26300

Unavailable

8

GEAR, 3RD DRIVEN | P; N.T.=38 This part replaces 24331-03000.

24331-03001

Unavailable

9

TOP GEAR | P; N.T.=20 UP TO E.NO.K10-

24341-03000

Unavailable

10

NO DESCRIPTION AVAILABLE | PP This part replaces 24741-03000.

24741-03001

Unavailable

11

KICK STARTER IDLE GEAR COMP | P; N.T.=25

26260-03002

Unavailable

12

NO DESCRIPTION AVAILABLE | P; N.T.=17 This part replaces 26280-03002.

26280-03003

Unavailable

13

ENGINE SPROCKET | P; N.T.=11

27511-01720

Unavailable

13

ENGINE SPROCKET | P; N.T.=13

27511-01000

Unavailable

13

SPROCKET, ENGINE (NT:12)* | P; N.T.=12 This part replaces 27511-01710.

27511-04000

Unavailable

14

DRIVE CHAIN ASS'Y | P; #420

278600-01010

Unavailable

15

JOINT (DID) | P; #420 This part replaces 27620-01011.

27620-01012

$6.87

16

SCREW This part replaces 02121-06108.

02122-0610A

$1.68

17

CROSS HEAD SCRE

02121-06128

Unavailable

18

BELL BEARING

08113-63030

$23.65

19

TUP PINION/LOW GEAR THRUST WA

08211-12241

$2.06

20

ENGINE SPROCKET NUT | P

09140-16002

$3.16

21

TOP PINION/LOW GEAR OUTER THR | PP

09160-12015

Unavailable

22

THRUST WASHER | P This part replaces 09160-17002.

08211-17241

$2.54

23

THRUST BEARING SPACER | PP This part replaces 09160-20006.

09160-20007

Unavailable

24

THRUST GEARING SPACER | P

09160-20007

Unavailable

25

ENGINE SPROCKET LOCK WASHER | P

09167-16001

$1.87

26

ENGINE SPROCKET SPACER | P

09180-17002

Unavailable

27

SECOND GEAR SPACER | P

09180-17022

Unavailable

28

BEARING | P This part replaces 09262-30002.

09262-30003

Unavailable

29

TRANSMISSION NEEDLE BEARING | P

09263-12001

Unavailable

30

KICK STARTER GEAR THRUST WASH | PP

09283-20002

Unavailable

31

DRIVE SHAFT OIL SEAL | P

09283-21001

$12.70

32

SEAL OIL(5.5X16 | P This part replaces 09285-05004.

09285-05007

$4.47

33

KICK STARTER GEAR BUSTING | P

09304-20001

Unavailable
