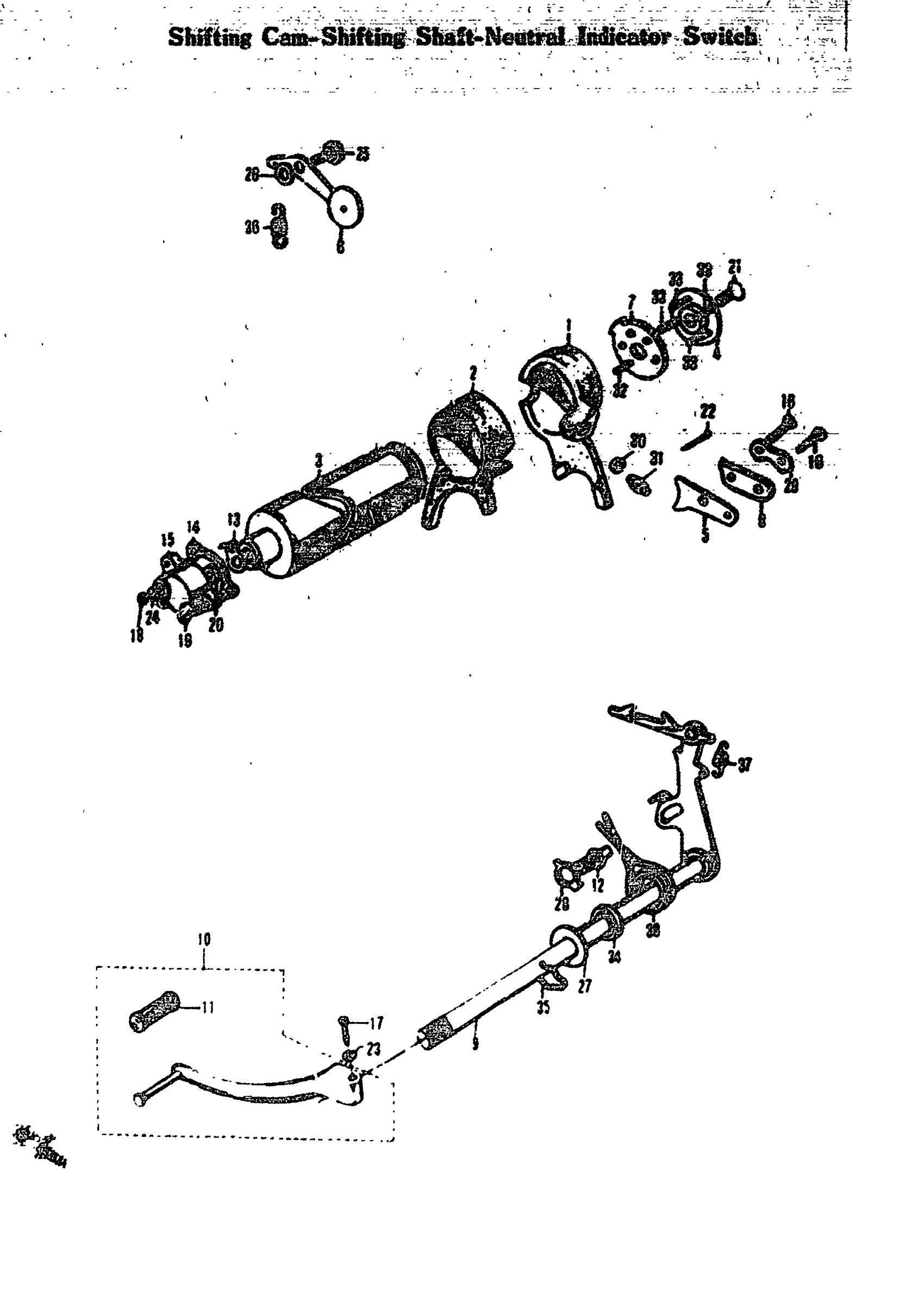

Suzuki 80K10P (1968) SHIFTING CAM-SHIFTING SHAFT-NEUTRAL INDICATOR SWITCH Diagram

#

Description
Price

1

LOW SPEED GEAR SHIFTING FORK

25211-03000

Unavailable

2

HIGH SPEED GEAR SHIFTING FORK

23221-03600

Unavailable

3

SHIFTING CAM

25311-03600

Unavailable

4

RETAINER, DRIVE PIN This part replaces 25322-03000.

25322-46000

$7.77

5

SHIFTING CAM GUIDE

25341-03000

Unavailable

6

SHIFTING CAM STOPPER

25350-03600

Unavailable

7

SHIFTING CAM SIDE PLATE

25361-03600

Unavailable

8

SHIFTING CAM STOPPER PLATE

25362-03600

Unavailable

9

SHIFTING SHAFT COMP

25510-03002

Unavailable

10

GEAR SHIFTING LEVER ASS'Y | CHROME-PLATED

25600-01602

Unavailable

11

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-03201.

25652-16510

$3.74

12

SHIFTING ARM STOPPER

25671-03000

Unavailable

13

CONTACT, SWITCH This part replaces 37711-01000.

37711-05101

$4.21

14

NEUTRAL INDICATOR SWITCH GASK

37712-01000

$2.22

15

BODY,CHANGE SWI | P; ISO This part replaces 37721-05100.

37721-05101

$10.34

16

HEXAGON BOLT

01111-06168

Unavailable

17

BOLT This part replaces 01112-06208.

01500-06207

$2.28

18

CROSS HEAD SCREW

02111-03068

Unavailable

18

CROSS HEAD SCREW

02111-03061

Unavailable

19

SCREW This part replaces 02111-04168.

02112-0416A

$1.49

19

CROSS HEAD SCREW

02111-04161

Unavailable

20

CROSS HEAD SCREW

02121-06128

Unavailable

21

CROSS HEAD SCREW

02121-06208

Unavailable

22

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

WASHER This part replaces 08322-21038.

08322-01037

$1.93

25

SHIFTING CASN STOPPER BOLT

09111-06003

Unavailable

26

WASHER (12.5X26X1.6) | O.D.=13(0.51),I.D-6.5(0.26)04) This part replaces 09160-12020.

09160-12089

$1.97

27

SHIFTING CASN STOPPER WASHER | O.D.=27(1.096)I.D.=-12.5(0.49)06)

09160-06008

Unavailable

28

SHIFTING ARM STOPPER FOLDING

09167-10001

Unavailable

29

SHIFTING CAM GUIDE WASHER

09169-06003

$1.78

30

ROLLER | O.D=9.8(0.39),I.D.=6(0.24); W.=6(0.24) This part replaces 09180-06004.

09180-06086

$2.50

31

GEAR SHIFTING FORK GUIDE

09209-10003

Unavailable

32

ROLLER (4X13.8) | O.D.=4(0.16)L.=13.8(0.54)

09261-04002

$1.72

33

SHIFTING CAM PIN | O.D.=4(0.16)L.=13.8(0.54

09261-04003

Unavailable

34

OIL SEAL (12X22X9) | O.D.=4(0.16)L.=20(0.79) This part replaces 09285-12001.

09285-12006

$6.32

35

CIRCLIP This part replaces 09384-12001.

08331-3112A

$1.78

36

SHIFTING CAM STOPPER SPRING | O.D.=7.8(0.31),I.D.=6.0(0.23)

09443-07005

Unavailable

37

SHIFTING PAWL RETURN SPRING | O.D.=7.8(0.31),I.D.=6.0(0.23)

09443-07006

Unavailable
