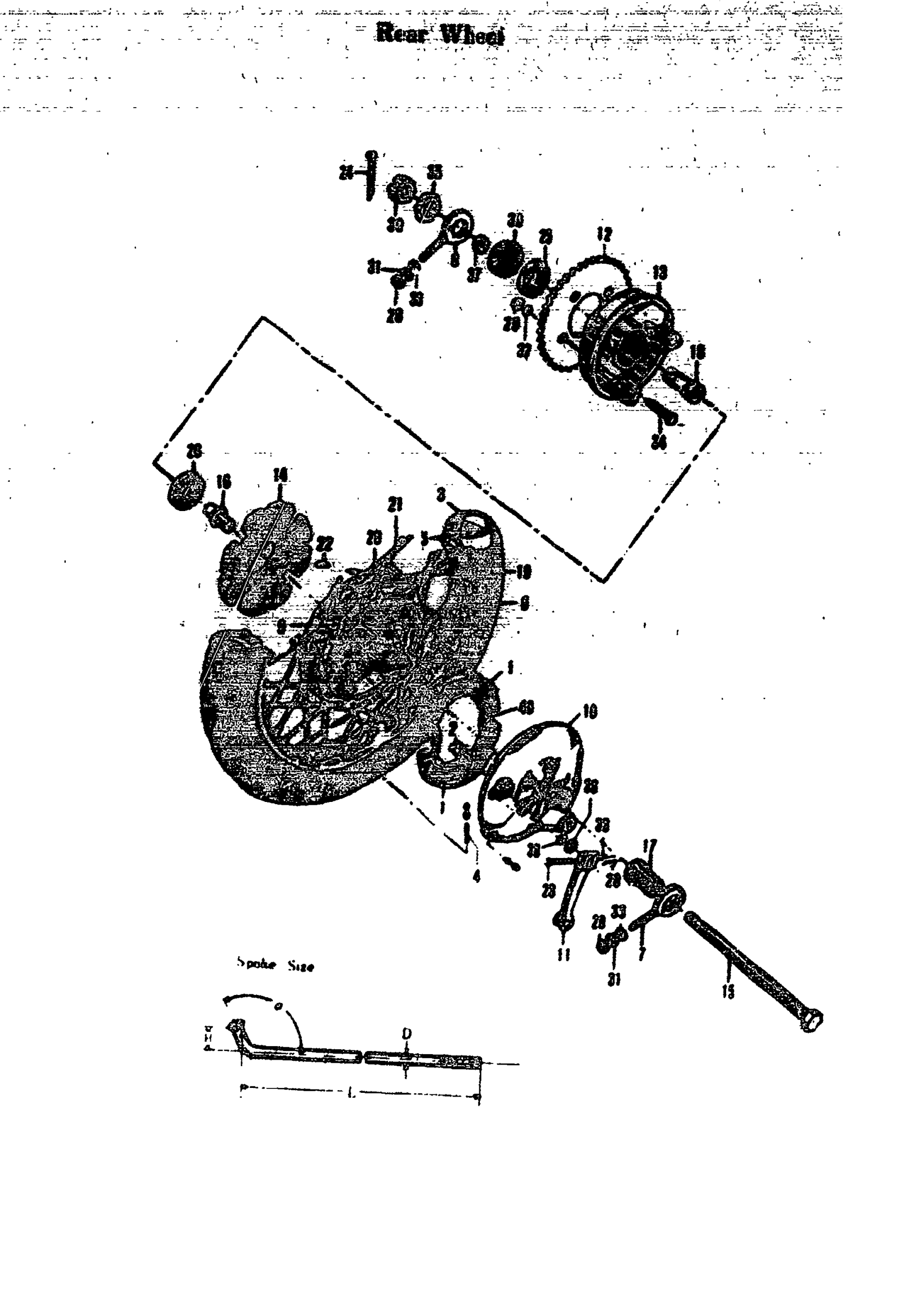

Suzuki 80K10P (1968) REAR WHEEL Diagram

#

Description
Price

0

REAR HUB ASS'Y | INCLUDES REF NOS 1,2,9,23~28,30,35,& 36~40

64000-01857

Unavailable

1

BRAKE SHOE

54410-01002

Unavailable

2

BRAKE CAM SHAFT

54441-01000

Unavailable

3

INNER TUBE | E=2.50"-17" INCLUDES RE

55200-03600

Unavailable

4

INNER TUBE VALVE

55250-01000

Unavailable

5

PROTECTOR, INNER TUBE | SIZE=17" This part replaces 55261-01010.

55261-02B40

$6.88

6

WHEEL RIM | SIZE=1.40"x17"

55311-07020

$89.05

7

ADJUSTER, CHAIN This part replaces 61411-01001.

61411-01002

$7.37

8

CHAIN LEFT ADJUSTER

61421-01001

Unavailable

9

REAR HUB DRIVE

64110-01600

Unavailable

10

REAR HUB PANEL

64210-01603

Unavailable

11

REAR BRAKE CAM LEVER

64451-01602

Unavailable

12

REAR SPROCKET | NDARD N.T.=30

64511-01770

Unavailable

12

REAR SPROCKET | IONAL N.T.=28

64511-01711

Unavailable

12

SPROCKET, REAR | IONAL N.T.=32 This part replaces 64511-01780.

64511-27750

Unavailable

12

REAR SPROCKET | IONAL N.T.=34

64511-01751

Unavailable

13

SPROCKET MOUNTING DRUM

64611-01000

Unavailable

14

ABSORBER,RR WHL This part replaces 64651-01000.

64651-010B1

$21.50

15

REAR AXLE | L. =217(8.54)

64710-01601

Unavailable

16

REAR HUB BEARING SPACER | OD=17.3(6.98) ID=12.758(2.28)

64730-01000

Unavailable

17

REAR AXLE SPACER | ID=12.2(0.48) L=30.5(

64741-01601

Unavailable

18

SPROCKET MOUNTING DRUM SHAFT

64761-01000

Unavailable

19

REAR TIRE | E=2.50"-17" 4PR

65100-03010

Unavailable

19

SPOKE ASSY REAR | INCLUDES REF NOS.20-22 This part replaces 65300-03817.

65320-46730

Unavailable

20

REAR INNER SPOKE | D=3.2(0.13) L=161(6.34=6.7(0.26)

65321-03020

Unavailable

21

REAR OUTER SPOKE | D=3.2(0.13) L=160.3(6.0 H=8.3(0.32)

65322-03020

Unavailable

22

REAR SPOKE NIPPLE

65325-03020

Unavailable

23

HEXAGON BOLT

01111-06308

Unavailable

24

COTTER PIN

04111-20258

Unavailable

25

BEARING, DRIVE SHAFT RH This part replaces 08113-62030.

09262-17023

$16.75

26

BEARING This part replaces 08143-62010.

08143-6201B

$10.80

27

B1 12X37X12 BEA This part replaces 08143-63010.

08143-6301B

$19.20

28

.NUT This part replaces 08311-11068.

08310-00067

$2.13

29

NUT This part replaces 08312-31088.

08310-00087

$2.13

30

NUT This part replaces 08314-11107.

08314-3110A

$1.99

31

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

32

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

33

WASHER This part replaces 08322-21068.

08322-01067

$2.13

34

REAR SPROCKET BOLT

09105-08001

$2.06

35

REAR SPROCKET MOUNTING DRUM S

09140-16005

$3.75

36

BRAKE CAM SHAFT DUST SEAL WAS | OD=20(0.79) ID=12.5(0.(0.04)

09160-12011

$1.54

37

SPROCKET MOUNTING DRUM SHAFT | OD=25(0.98) ID=17(0.5(0.41)

09180-17004

$6.63

38

BRAKE CAM SHIFT DUST SEAL | OD=16.2(0.64) ID=11.42.4(0.09)

09280-12001

$2.90

39

SPROCKET MOUNTING DRUM OIL SE | OD=40(1.57) ID=25(0.924)

09283-25001

Unavailable
