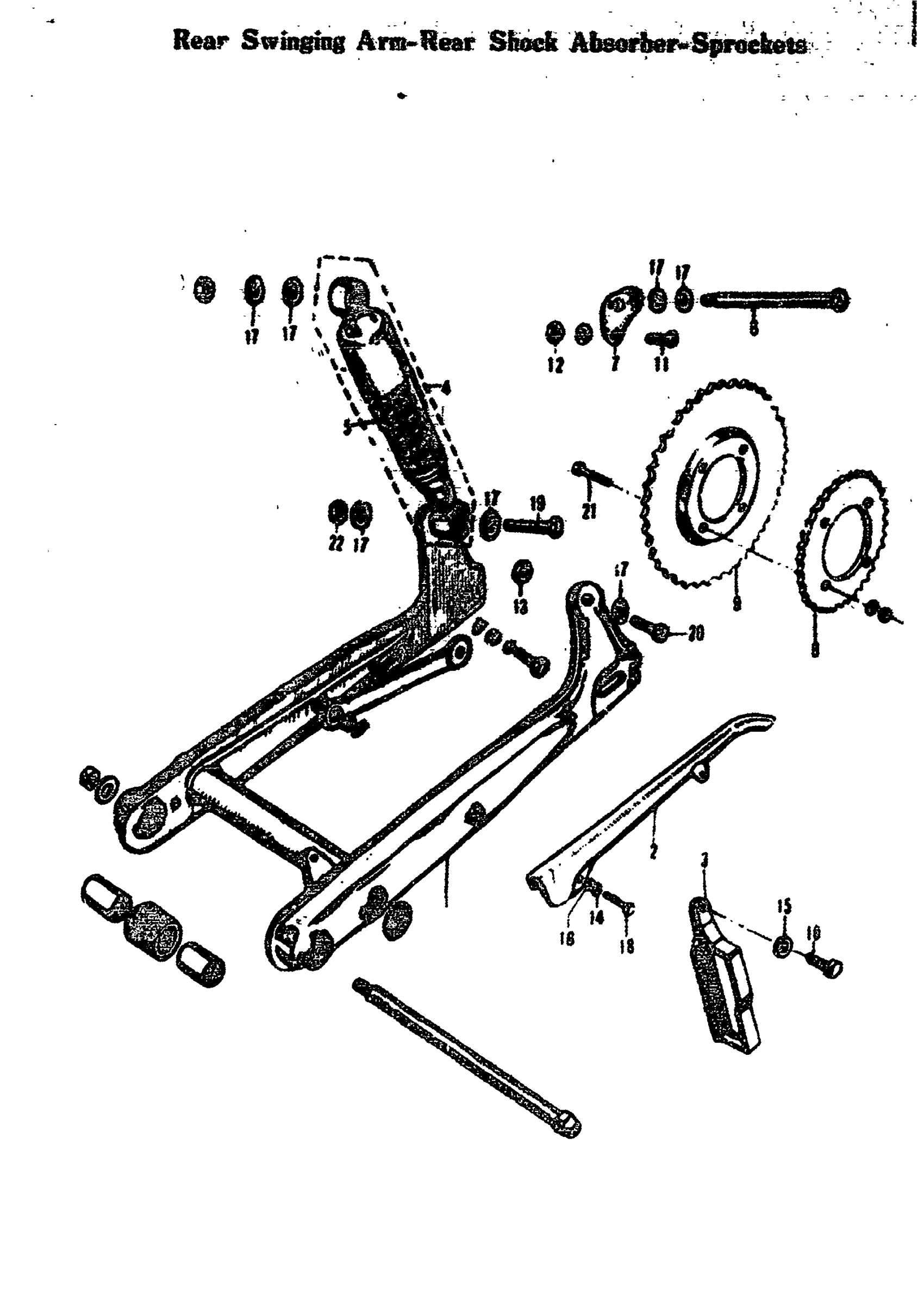

Suzuki 80K10P (1968) REAR SWINGING ARM-REAR SHOCK ABSORBER-SPROCKETS Diagram

#

Description
Price

1

REAR SWINGING ARM COMP.

61101-03843

Unavailable

2

DRIVE CHAIN GUARD | ATED

61310-03601

Unavailable

3

DRIVE CHAIN GUIDE

61340-03611

Unavailable

4

REAR SHOCK ABSORBER ASS'Y

62100-03610

Unavailable

5

REAR SHOCK ABSORBER SPRING | .39) ID=24.5(0.96) L=19

62211-07601

Unavailable

6

REAR SHOCK ABSORBER UPPER SHA | 9) L=225(8.86)

62311-03601

Unavailable

7

REAR SHOCK ABSORBER LEFT FITT

62421-01600

Unavailable

8

SPROCKET, REAR This part replaces 64511-03601.

64511-27750

Unavailable

9

POWER SPROCKET

64521-03631

Unavailable

10

BOLT This part replaces 01111-10168.

01500-10167

$3.85

11

CROSS HEAT SCREW

02131-06187

Unavailable

12

HEXAGON NUT

08311-31063

Unavailable

13

NUT This part replaces 08311-31108.

08310-00107

$2.19

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

15

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

16

WASHER This part replaces 08322-21068.

08322-01067

$2.13

17

WASHER This part replaces 08322-21108.

08322-01107

$2.15

18

DRIVE CHAIN GUARD FITTING HOL | P; OD=6 SCREW L=6(0.24)

09100-06005

Unavailable

19

REAR SHOCK ABSORBER RIGHT LOW | P; OD=10(0.39) L=40(1.5

09100-10019

Unavailable

20

REAR SHOCK ABSORBER LEFT LOWE | .39) L.=36(1.42)

09104-10002

$3.55

21

REAR SPROCKET BOLT | 32) L=36.5(1.44)

09105-08002

Unavailable

22

REAR SHOCK ABSORBER RIGHT LOW | P

09148-10001

Unavailable
