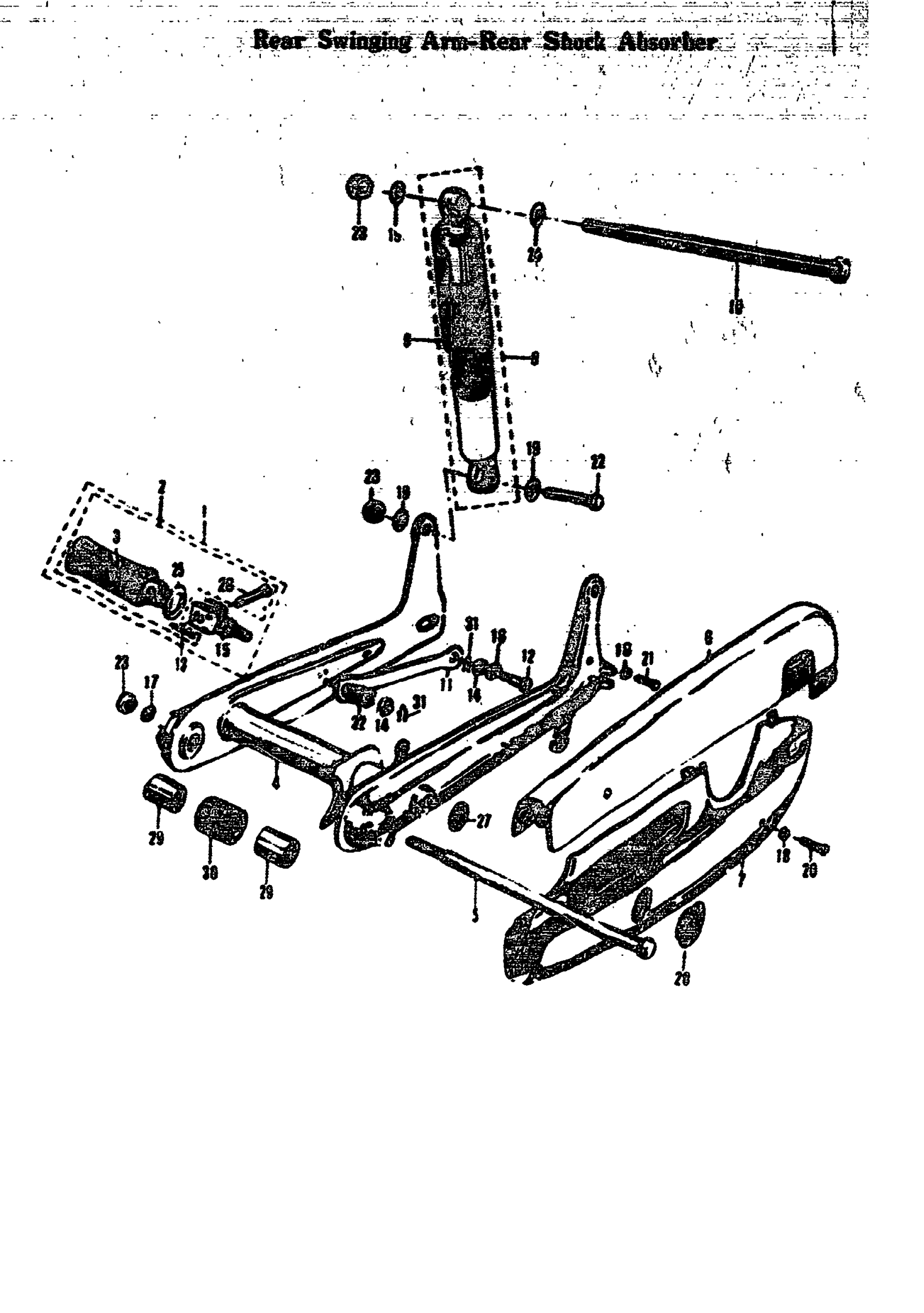

Suzuki 80K10P (1968) REAR SWINGING ARM-REAR SHOCK ABSORBER Diagram

#

Description
Price

1

REAR FOOTREST ASS'Y

43600-03000

Unavailable

2

FOLDING FOOTREST RUBBER ASS'Y

43600-03805

Unavailable

3

FOLDING FOOTREST RUBBER

43610-03000

Unavailable

4

REAR SWINGING ARM COMP.

61102-03315

Unavailable

5

REAR SWINGING ARM PIVOT SHAFT | P; O.D=10(0.39)

61211-01002

Unavailable

6

CHAIN CASE UPPER HALF

61310-01002

Unavailable

7

CHAIN CASE UPPER HALF

61320-01001

Unavailable

8

REAR SHOCK ABSORBAR ASS'Y

62100-01603

Unavailable

9

REAR SHOCK ABSORBER SPRING

62211-01701

Unavailable

10

REAR SHOCK ABSORBER UPPER SHA

62311-03001

Unavailable

11

REAR TORQUE LINK

64310-01000

Unavailable

12

REAR TORQUE LINK BOLT

64331-01000

Unavailable

13

COTTER PIN

04111-20188

Unavailable

14

NUT This part replaces 08311-31088.

08310-00087

$2.13

15

NUT This part replaces 08312-31108.

08310-00107

$2.19

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

18

WASHER This part replaces 08322-21068.

08322-01067

$2.13

19

WASHER, KNUCKLE END This part replaces 08322-21103.

08322-0110A

$1.84

20

CHAIN CASE FITTING BOLT (S) | O.D. =6 SCREW L.

09100-06005

Unavailable

21

BOLT | . =6 SCREW L. =15(0.24) This part replaces 09100-06007.

09100-06067

Unavailable

22

REAR STOCK ABSORBER LOWER BOL | P; O.D. =10(0.30) L.=40(1

09100-10019

Unavailable

23

REAR SHOCK ABSORBER NUT

09140-10001

Unavailable

24

REAR SHOCK ABSORBER UPPER WAS | . =20(0.79),I.D. =10.5(0.4. =20(0.79),I.D. =10.5(0.42(0.13)

09160-10005

$1.87

25

WASHER | P; O.D. =20(1.18),I.D. =19P; O.D. =20(1.18),I.D. =19T. =2.3(0.09) This part replaces 09160-19004.

09160-19024

$2.65

26

FOLDING FOOTREST RUBBER FITTI | P; O.D. =6(0.24),I =31(1.2P; O.D. =6(0.24),I =31(1.2

09200-06010

$1.72

27

SWINGING ARM JOINT CAP

09250-22002

$1.99

28

CAP(OD:40) This part replaces 09250-30001.

09250-30024

$1.78

29

REAR SWINGHING ARM SHOCK DAMP

09319-10003

Unavailable

30

REAR PIVOT SHAFT HOUSEING BUF

09320-22001

Unavailable

31

SPRING CLIP

09384-06001

$1.49
