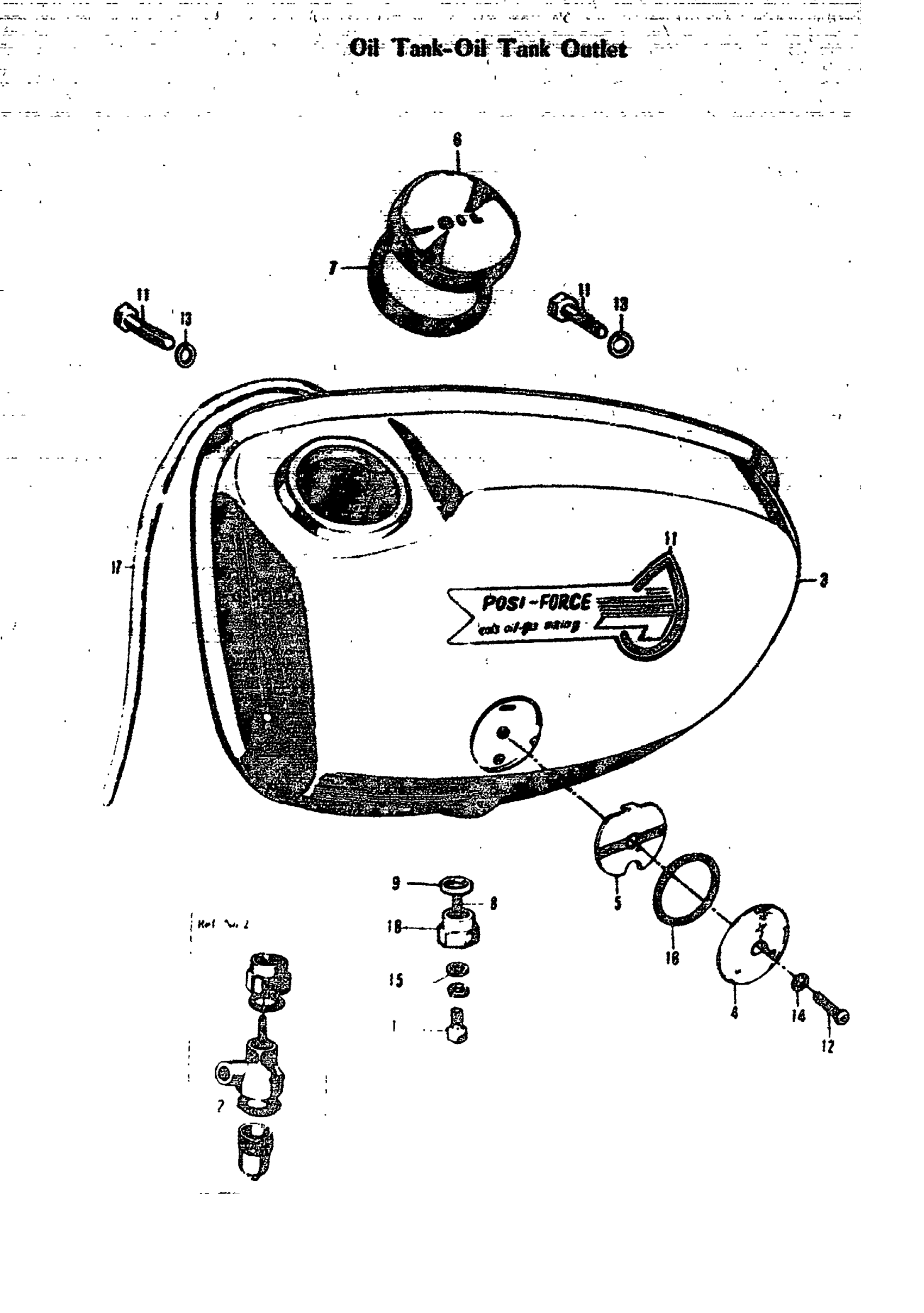

Suzuki 80K10P (1968) OIL TANK-OIL TANK OUTLET Diagram

#

Description
Price

1

OIL TANK OUTLET UNION HOLT

16293-11010

Unavailable

2

STRAINER CUP GASKET | O.D.=19 0.75 I.D.=13.5 3.5 0.06

44346-02030

Unavailable

3

OIL TANK | ISO UP TO E.NOI.K10-501316

44610-07201-064

Unavailable

4

OIL LEVEL INSPECTION LENS

44641-11000

Unavailable

5

LENS SET, OIL INSPECTION This part replaces 44642-11000.

44640-11843

Unavailable

6

OIL TANK CAP

44651-11040

$15.05

7

GASKET,OIL TANK | O.D.=46(1.81).I.D.=35 (1.3 0.14 This part replaces 44661-11000.

44661-11001

$3.66

8

OIL TANK GASKET STRAINER NET

44720-11030

$5.38

9

OIL TANK OUTLET GASKET | O.D.=13.5 0.53 I.D.=8.2=2.5 0.30

44733-11030

$2.28

10

OIL TANK CAP GASKET

68171-11601

Unavailable

11

HEXAGON BOLT

01111-06108

Unavailable

12

CROSS HEAD SCREW

02111-05167

Unavailable

12

CROSS HEAD SCREW

02111-05162

Unavailable

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

OIL LEVEL INSPECTION LENS GAS | P; O.D.=9.5 0.37 I.D.= 5.0P; O.D.=9.5 0.37 I.D.= 5.00 0 04

09168-05001

$1.98

15

GASKET | P; O.D.=12 0.47 .I.D.=6.25 0.06 This part replaces 09168-06002.

09168-06004

$1.49

16

OIL LEVEL INSPECTION LENS "O" | P; O.D.=29 1 14.I.D.=23 0P; O.D.=29 1 14.I.D.=23 00 12

09280-23001

Unavailable

17

HOSE (5X8X2000) This part replaces 09344-05005.

09351-50803-00B

$9.10
