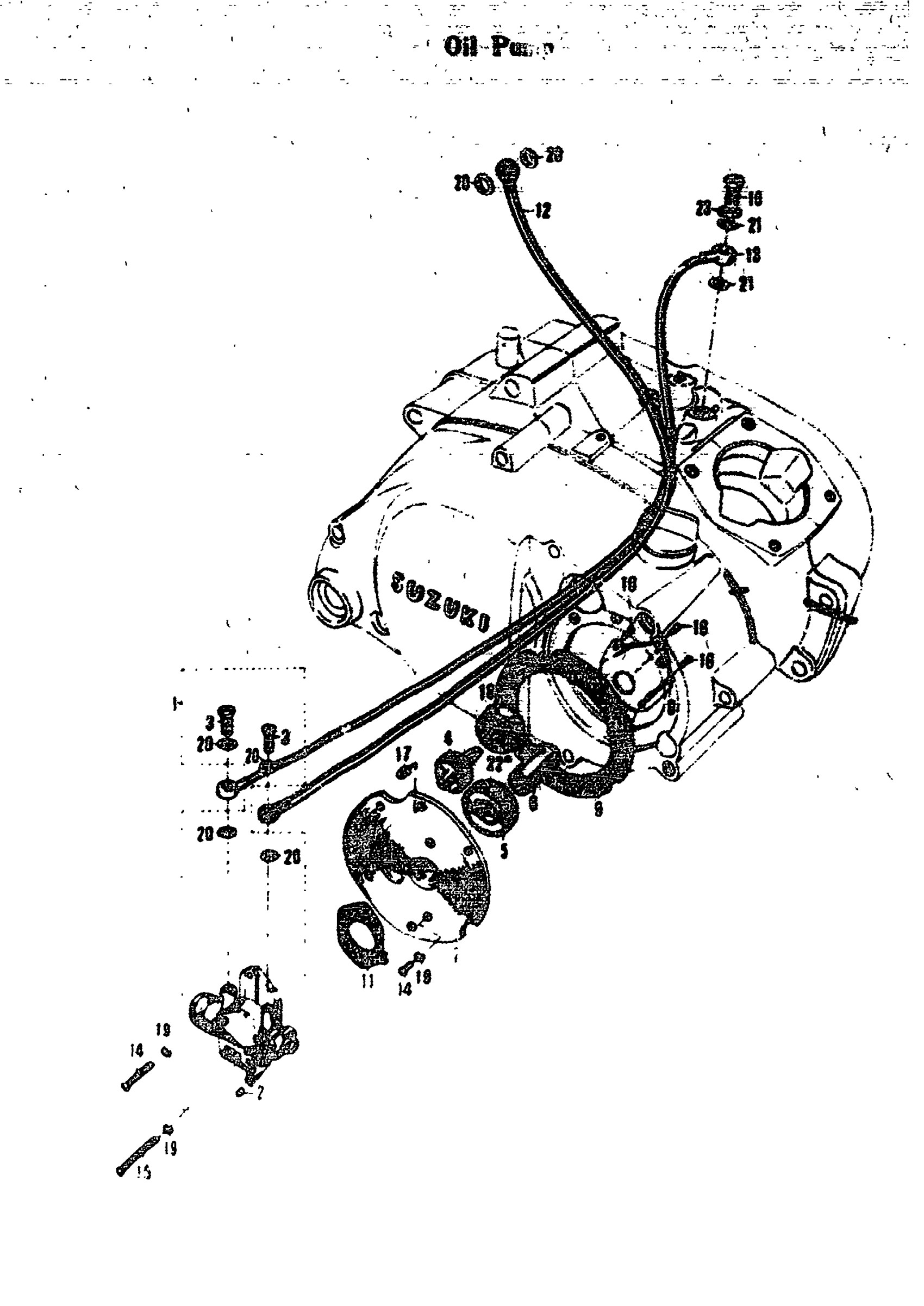

Suzuki 80K10P (1968) OIL PUMP Diagram

#

Description
Price

0

OIL PUMP DRIVE GEAR BOX ASS'Y | P; ISO INDCLUDES REF.NO.4~2

16300-03301

Unavailable

1

OIL PUMP ASS'Y | P

16002-03832

Unavailable

2

TERMINAL, CABLE | P This part replaces 16292-03110.

16292-03112

$5.05

3

OIL PUMP UNION BOLT | P

16293-11010

Unavailable

4

OIL PUMP PINION | P; N.T.=12

16311-03300

Unavailable

5

OIL PUMP GEAR | N.T.=23

16321-03300

Unavailable

6

OIL PUMP GEAR SHAFT | INCL. REF.NO.22

16320-03808

Unavailable

7

OIL PUMP DRIVE GEAR BOX COMP. | P; ISO

16341-03837

Unavailable

8

OIL PUMP DRIVE GEAR BOX LID | P

16351-03301

Unavailable

9

GASKET,OIL PMP | P This part replaces 16381-03300.

16381-03301

Unavailable

10

CHEEK VALVE COMP. | P

16710-11011

Unavailable

11

GASKET, OIL PUMP | P This part replaces 16731-03100.

16731-03101

$2.81

12

OIL TANK SIDE OIL LINE | P; O.D.=8.0(0.31)I.D=4.0(0.16)

16810-03130

Unavailable

13

CYLINDER SIDE OIL LINE | P; O.D.=3.0(0.32),I.D.=2(0

16820-03130

Unavailable

14

CROSS HEAD SCREW

02111-05128

Unavailable

14

CROSS HEAD SCREW

02111-05121

Unavailable

15

CROSS HEAD SCREW

02111-05258

Unavailable

15

CROSS HEAD SCREW

02111-05251

Unavailable

16

SCREW This part replaces 02121-03088.

02122-0308A

Unavailable

16

CROSS HEAD SCREW

02121-03081

Unavailable

17

PIN (4X13.8)

04221-04089

$1.49

18

BOLT BEARING

08110-06080

Unavailable

19

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

20

GASKET | P; O.D.=120.47.ID =6.2(0.24).06) This part replaces 09168-06002.

09168-06004

$1.49

21

CHECK VALVE GASKET | P; O D=12(0.47),I.D.6.2

09168-10005

$2.06

22

OIL PUMP GEAR DOWEL PIN | P; O D O.D.=2.0(0.08)22)

09261-02002

Unavailable

23

CHECK VALVE "O" RING | P; O.D.=10.0(0.40),I.D.=7.6(0.30)

09280-08003

$1.49
