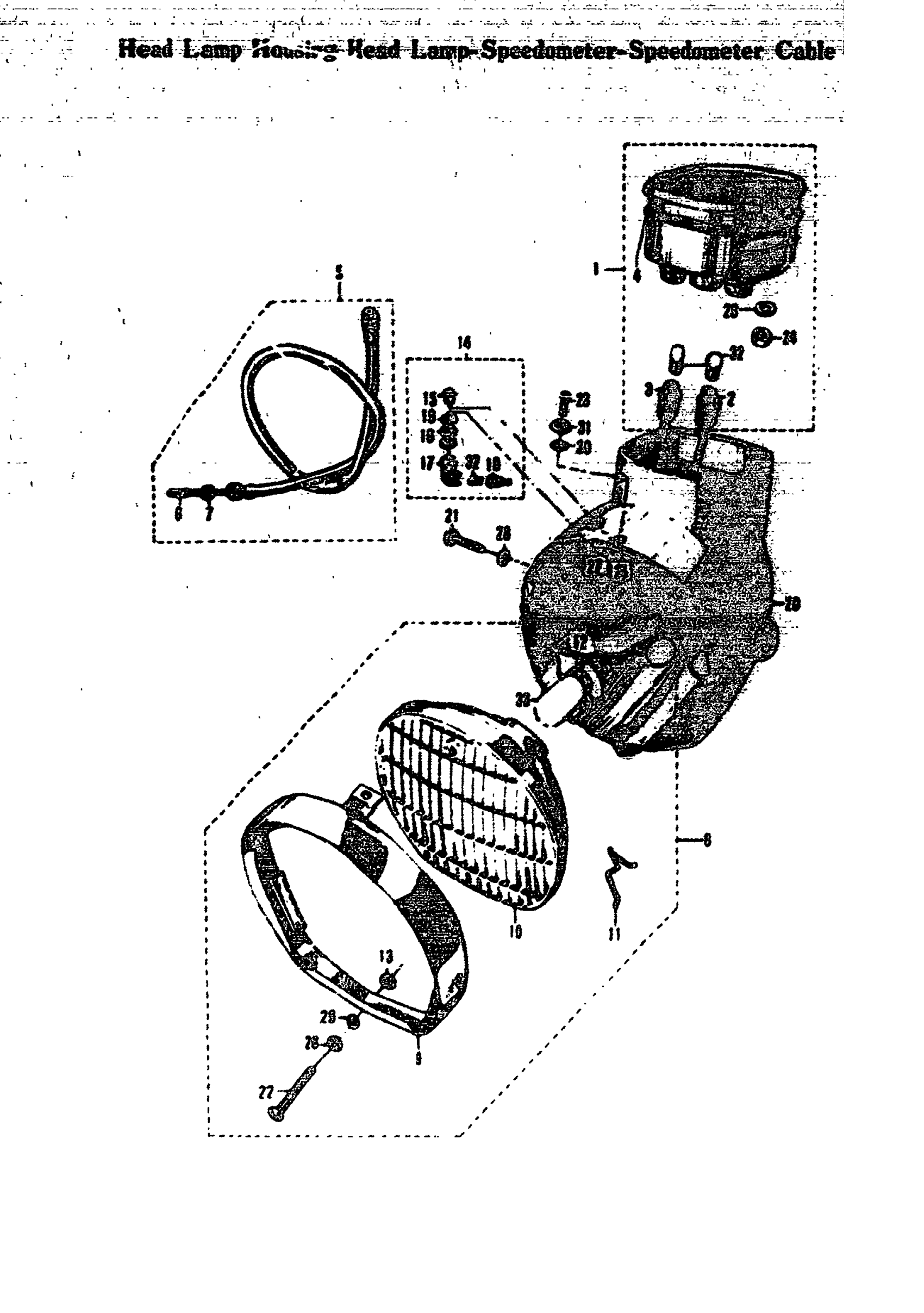

Suzuki 80K10P (1968) HEAD LAMP HOUSING-HEAD LAMP-SPEEDOMETER-SPEEDOMETER CABLE Diagram

#

Description
Price

1

SPEEDOMETER ASSY | P; ISO

34001-03846

Unavailable

2

SPEEDOMETER LAMP SOCKET | P

34173-01010

Unavailable

3

NEUTRAL INDICATER LAMP SOCKET | P

34179-01010

Unavailable

4

SPEEDOMETER GASKET | P

34181-01010

Unavailable

5

SPEEDOMETER CABLE ASSY | P

34910-05030

Unavailable

6

SPEEDOMETER INNER CABLE | P

34911-03032

Unavailable

7

SPEEDOMETER CABLE OIL SEAL | P

34928-01030

$2.92

8

HEAD LAMP ASSY | P; ISO

35100-03612

Unavailable

9

HEAD LAMP RIM | P; ISO

35111-03611

Unavailable

10

HEAD LAMP LENS UNIT | P

35121-03610

Unavailable

11

HEAD LAMP SPRING CLAMP | P

35128-03611

Unavailable

12

HEAD LAMP SOCKET | P

35171-03611

Unavailable

13

HEAD LAMP RUBBER WASHER | P

35189-03611

Unavailable

14

HIGH BEAM INDICATOR LAMP ASS' | P

36330-02610

Unavailable

15

HIGH BEAM INDICATOR LAMP LENS | P

36331-01610

Unavailable

16

HIGH BEAM INDICATOR LAMP LENS | PP

36332-01610

Unavailable

17

HIGH BEAM INDICATOR LAMP HOLD | PP

36334-01610

Unavailable

18

HIGH BEAM INDICATOR LAMP SOCK | PP

36335-01610

Unavailable

19

HIGH BEAM INDICATOR LAMP LENS | PP

36337-01610

Unavailable

20

HEAD LAMP HOUSING | P; ISO. BLACK

51810-03601-019

Unavailable

20

HEAD LAMP HOUSING | P; ISO PERMANENT RED

51810-03601-061

Unavailable

20

HEAD LAMP HOUSING | P; ISO. PURE WHITE

51810-03601-064

Unavailable

20

HEAD LAMP HOUSING | P; ISO. LIGHT PREMANENT

51810-03601-075

Unavailable

21

BOLT This part replaces 01221-08257.

01204-08257

$1.96

22

CROSS HEAD SCREW

02111-05208

Unavailable

22

SCREW This part replaces 02111-05201.

02112-05207

$1.97

23

.SCREW This part replaces 02131-04127.

02122-0412A

$1.93

23

CROSS HEAD SCREW

02131-04122

Unavailable

24

NUT This part replaces 08311-11058.

08310-00057

$1.84

24

HEXAGON NUT

08311-11051

Unavailable

25

NUT This part replaces 08312-11088.

08310-00087

$2.13

26

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

27

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

28

WASHER This part replaces 08322-11087.

08322-01087

$2.13

29

WASHER This part replaces 08322-21088.

08322-01087

$2.13

30

HEAD LAMP RIM FITTING SCREW G | PP

09161-04005

Unavailable

31

HEAD LAMP RIM FITTING WASHER | P

09165-04004

$1.93

32

SPEEDOMETER LAMP BULB | P; 6V,15W

09471-06001

$2.18
