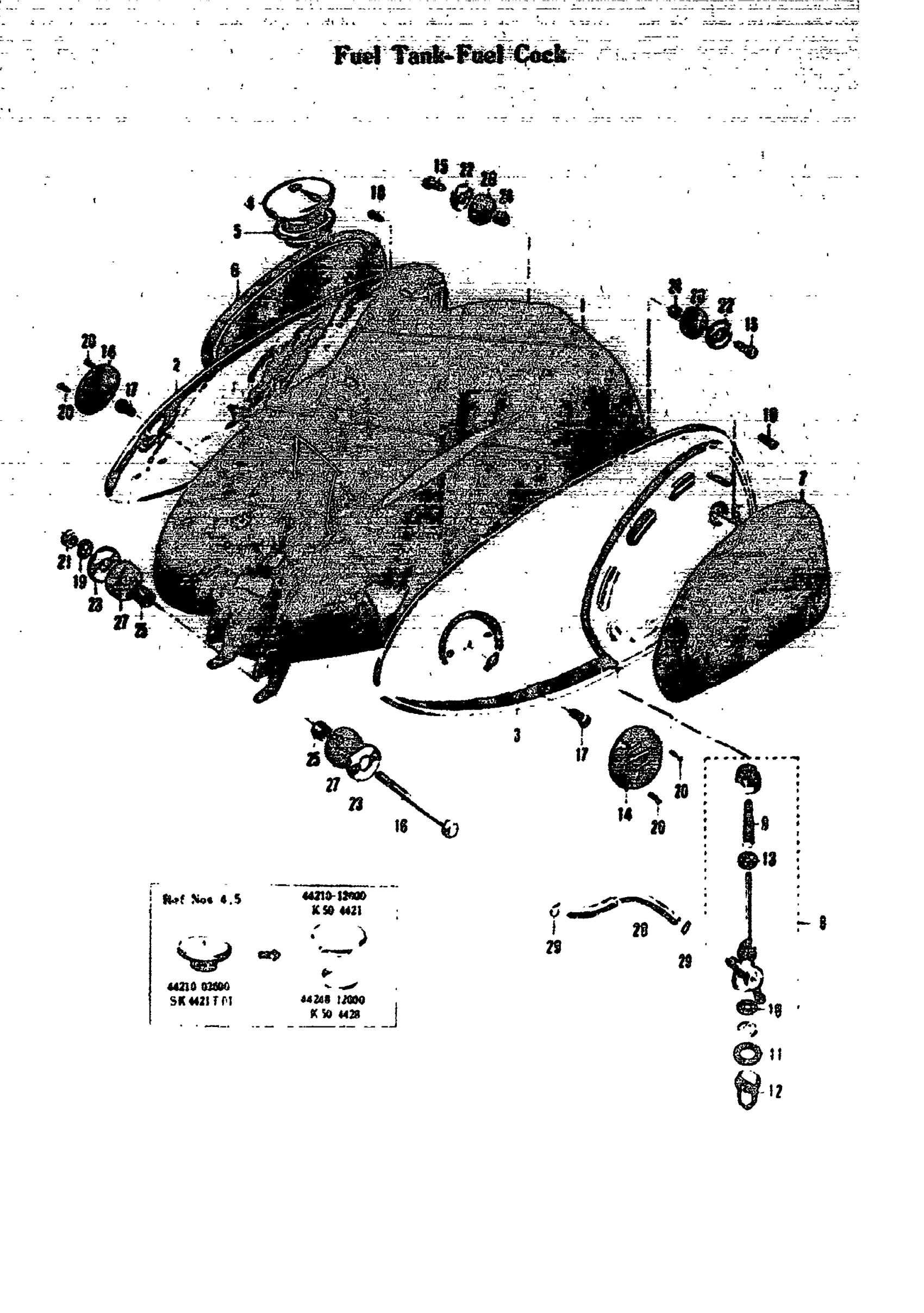

Suzuki 80K10P (1968) FUEL TANK-FUEL COCK Diagram

#

Description
Price

1

FUEL TANK | ISO

44110-03005

Unavailable

2

FUEL TANK RIGHT SIDE COVER | ISO

44170-01002

Unavailable

3

FUEL TANK LEFT SIDE COVER | ISO

44180-01002

Unavailable

4

CAP FUEL TANK This part replaces 44210-12000.

44200-23810

$49.39

4

NO DESCRIPTION AVAILABLE | UP TO E.NO. This part replaces 44210-03600.

44210-08001

Unavailable

5

FUEL TANK CAP GASKET | FROM E.NO.K10-483000

44248-12000

Unavailable

6

RIGHT KNEE GRIP

44251-01000

Unavailable

7

LEFT KNEE GRIP

44252-01000

Unavailable

8

COCK ASSY FUEL | ISO This part replaces 44300-01600.

44300-05115

Unavailable

9

INLES PIPE STRAINER NUT

44330-01021

Unavailable

10

STRAINER NUT

44344-01021

Unavailable

11

STRAINER CAP GASKET | O.D.=19.5(0.77).I.D.=14(1.6(0.05)

44346-01020

Unavailable

12

FUEL COCK STRAINER CAP

44347-01600

Unavailable

13

FUEL COCK GASKET | O.D.=13.5(0.53).I.D.=8.2=2.5(0.10)

44348-01020

Unavailable

14

FUEL TANK EMBLEM

68111-03000

Unavailable

15

HEXAGON BOLT

01111-06168

Unavailable

16

BOLT This part replaces 01221-08857.

01204-08857

Unavailable

17

CROSS HEAD SCREW

02111-06088

Unavailable

18

SCREW This part replaces 02141-05068.

09125-05117

$2.72

18

CROSS HEAD SCREW

02141-05061

Unavailable

19

LOCK WASHER

08321-21081

Unavailable

20

FUEL TANK EMBLEM FITTING SCRE | ISO

09125-03101

Unavailable

20

FUEL TANK EMBLEM FITTING SCRE

09125-03001

Unavailable

21

FUEL TANK FRONT MOUNTING BOLT

09140-08001

Unavailable

22

WASHER (8.5X26X1.6) | O.D.=24(0.55).I.D.=6.5(0.6(0.06) This part replaces 09160-08004.

09160-08134

$2.03

23

WASHER (8.5X26X1.6) | O.D.=25(1.02).I.D.=8.2(0.6(0.06) This part replaces 09160-08005.

09160-08134

$2.03

24

SPACER (6.5X10X7) | O.D.=10(0.39),I.D.6.8(0.27).31) This part replaces 09180-06002.

09180-06283

$1.91

25

SPACER (8.5X12X11) | O.D.=12 0 47 I D =8 8 0; O.D.=12 0 47 I D =8 8 00 43 This part replaces 09180-08001.

09180-08189

$2.58

26

FUEL TANK REAR MOUNTING SHOCK | O.D.=24(0.94),I.D.9.5(0.37))

09320-09002

$1.98

27

FUEL TANK FRONT MOUNTING SHOC | O.D.=25 1 02 .I.D 11 5 0; O.D.=25 1 02 .I.D 11 5 00 47

09320-11003

Unavailable

28

FUEL LANE | O.D.=7(0.,28),I.D.=4(0.16)65)

09343-05001

Unavailable
