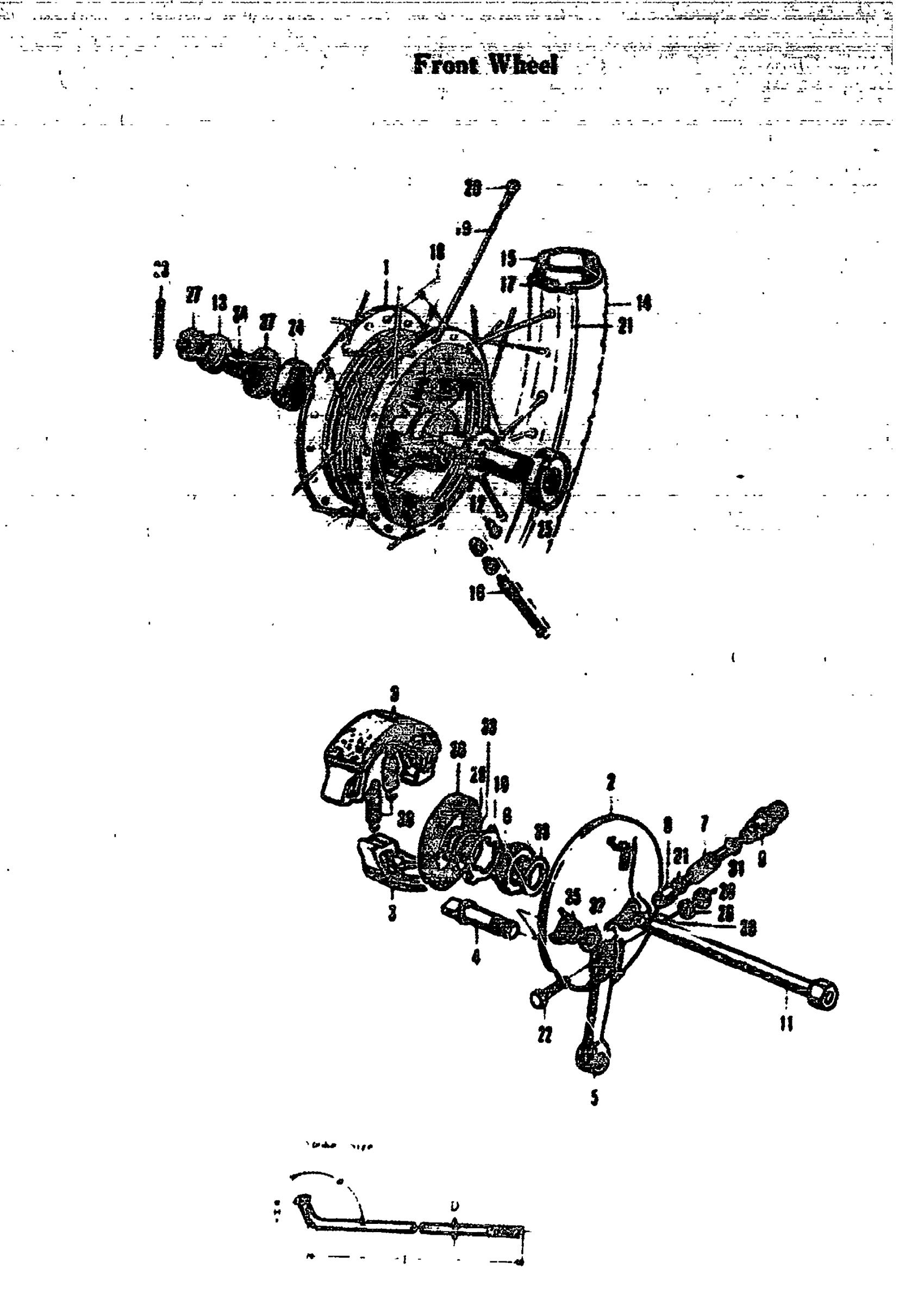

Suzuki 80K10P (1968) FRONT WHEEL Diagram

#

Description
Price

0

FRONT HUB ASS'Y | ISO, INCLUDES REF.NO.8

54100-03601

Unavailable

1

FRONT HUB DRUM

54110-01604

Unavailable

2

FRONT HUB PANEL | ISO

54210-03603

Unavailable

3

BRAKE SHOE

54410-01002

Unavailable

4

BRAKE CAMSHAFT

54441-01000

Unavailable

5

LEVER, BRAKE CAM This part replaces 54451-03601.

54451-03002

$16.87

6

NO DESCRIPTION AVAILABLE | N.T.=25 This part replaces 54611-03000.

54611-03002

Unavailable

7

NO DESCRIPTION AVAILABLE | P; N.T.=10 This part replaces 54621-03000.

54621-03001

Unavailable

8

SPEEDOMETER PINION INNER BUSH

54631-01000

Unavailable

9

SPEEDOMETER PINION OUTER BUSH

54632-01001

$12.80

10

SPEEDOMETER GEAR DRIVE

54661-03000

Unavailable

11

FRONT AXLE

54710-03600

Unavailable

12

FRONT HUB BEARING SPACER | OD=16(0.63),ID=10.2(1(2.00)

54730-01000

Unavailable

13

FRONT DRUM DUST SEAL

54892-01000

Unavailable

14

FRONT TIRE | E=2.50"-17" 4PR

55100-03010

Unavailable

15

INNER TUBE | E=2.50"-17" INCLUDES R

55200-03600

Unavailable

16

INNER TUBE VALVE

55250-01000

Unavailable

17

PROTECTOR, INNER TUBE This part replaces 55261-01010.

55261-02B40

$6.88

17

NO DESCRIPTION AVAILABLE | INCLUDES REF.NO.18~20 This part replaces 55301-03812.

55320-01021

Unavailable

18

FRONT INNER SPOKE | D=2.9(0.12) L=161(6.3H=6.5(0.26)

65321-01021

Unavailable

19

FRONT OUTER SPOKE | D=2.9(0.12) L=160.5(6.30 H=8.0(0.31)

65322-01021

Unavailable

20

FRONT SPOKE NIPPLE

55325-03020

Unavailable

21

WHEEL RIM | SIZE=1.40"x17"

55311-07020

$89.05

22

HEXAGON BOLT

01111-06308

Unavailable

23

COTTER PIN

04111-20258

Unavailable

24

BOIL BEARING

08113-62000

$13.63

25

BEARING This part replaces 08143-63000.

08143-6300B

$15.33

26

.NUT This part replaces 08311-11068.

08310-00067

$2.13

27

NUT This part replaces 08314-11107.

08314-3110A

$1.99

28

WASHER This part replaces 08322-21068.

08322-01067

$2.13

29

CIRCLIP This part replaces 08331-11159.

08331-3115A

$2.25

30

SCREW,3X4.3 | ISO; ISO This part replaces 09134-03101.

09134-03101-A05

$1.78

30

SPEEDOMETER GEAR OUTER BUSHIN

09134-03001

Unavailable

31

WASHER,5.1X9X0. | P; OD=9(0.35) ID=5.1(0.(0.02) This part replaces 09160-05001.

09160-05001-A05

$1.87

32

BRAKER CAM SHAFT DUST SEAL WA | OD=20(0.79) ID=12.5(00(0.04)

09160-12011

$1.54

33

SPEEDOMETER GEAR THRUST WASHE | OD=2(0.87) ID=16(0.634)

09160-16005

Unavailable

34

FRONT AXLE SPACER | OD=15(0.59) ID=10(0.3(0.49)

09180-10003

Unavailable

35

BRAKE CAM SHAFT DUST SEAL | OD=16.2(0.64) ID=11.42.4(0.09)

09280-12001

$2.90

36

FRONT HUB PANEL OIL SEAL | OD=58(2.3) ID=43(1.70

09283-43001

Unavailable

37

OIL SEAL (15X31X5) | OD=31(1.22) ID=15(0.5.39)

09284-15001

$4.73
