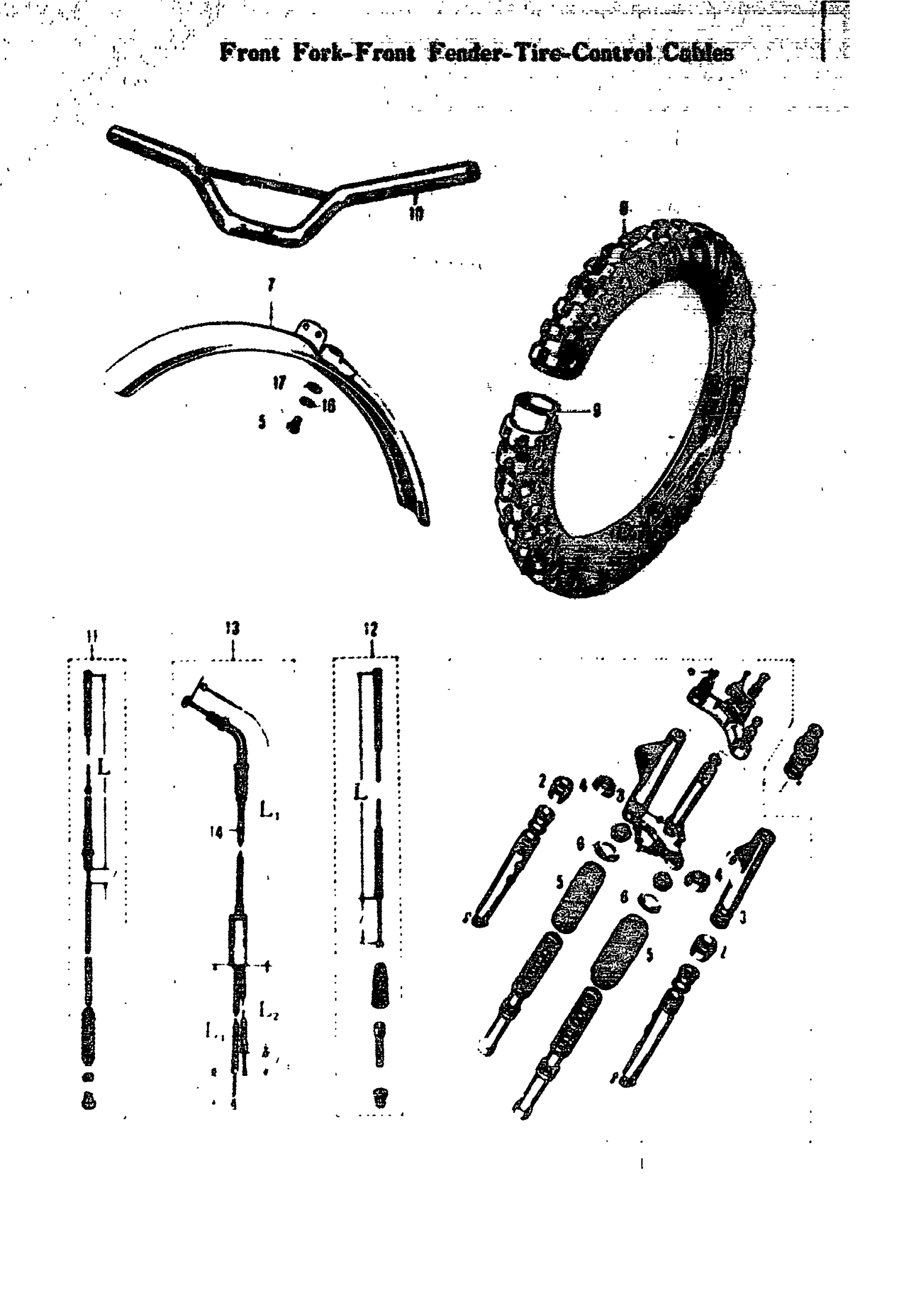

Suzuki 80K10P (1968) FRONT FORK-FRONT FENDER-TIRE-CONTROL CABLES Diagram

#

Description

Price

1

FRONT FORK ASS'Y

51100-03600

Unavailable

2

FORK INNER TUBE GUIDE HOUSING

51151-03110

Unavailable

3

HEAD LAMP BRACKET SEAT

51551-01210

Unavailable

4

HEAD LAMP BRACKET CHROME BAND

51552-03110

Unavailable

5

FORK SPRING COVER BEST

51571-03110

Unavailable

6

FORK SPRING GUIDE

51573-03110

Unavailable

7

FRONT FENDER | ATED

53110-03620

Unavailable

8

TIRE | RE SIZE=2.75"-17" 4PR

55100-03610

Unavailable

9

NO DESCRIPTION AVAILABLE | "-17" This part replaces 55200-09620.

65200-47C00

Unavailable

10

HANDLEBAR

56110-03601

Unavailable

11

BRAKE CABLE ASS'Y | 0(40.16) l=40(1.57)

58100-03731

Unavailable

12

CLUTCH CABLE ASS'Y | 22) l=84(3.31)

58200-01721

Unavailable

13

THROSTLE CABLE ASS'Y | 0(24.8) L2=185(7.28) L39) l1=58(2.28) l2=97(3.

58300-03710

Unavailable

14

HANDLEE SIDE THROTTLE CABLE

58310-03710

Unavailable

15

PLUG, DRAIN This part replaces 01121-08168.

01500-0816B

$2.50

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13
