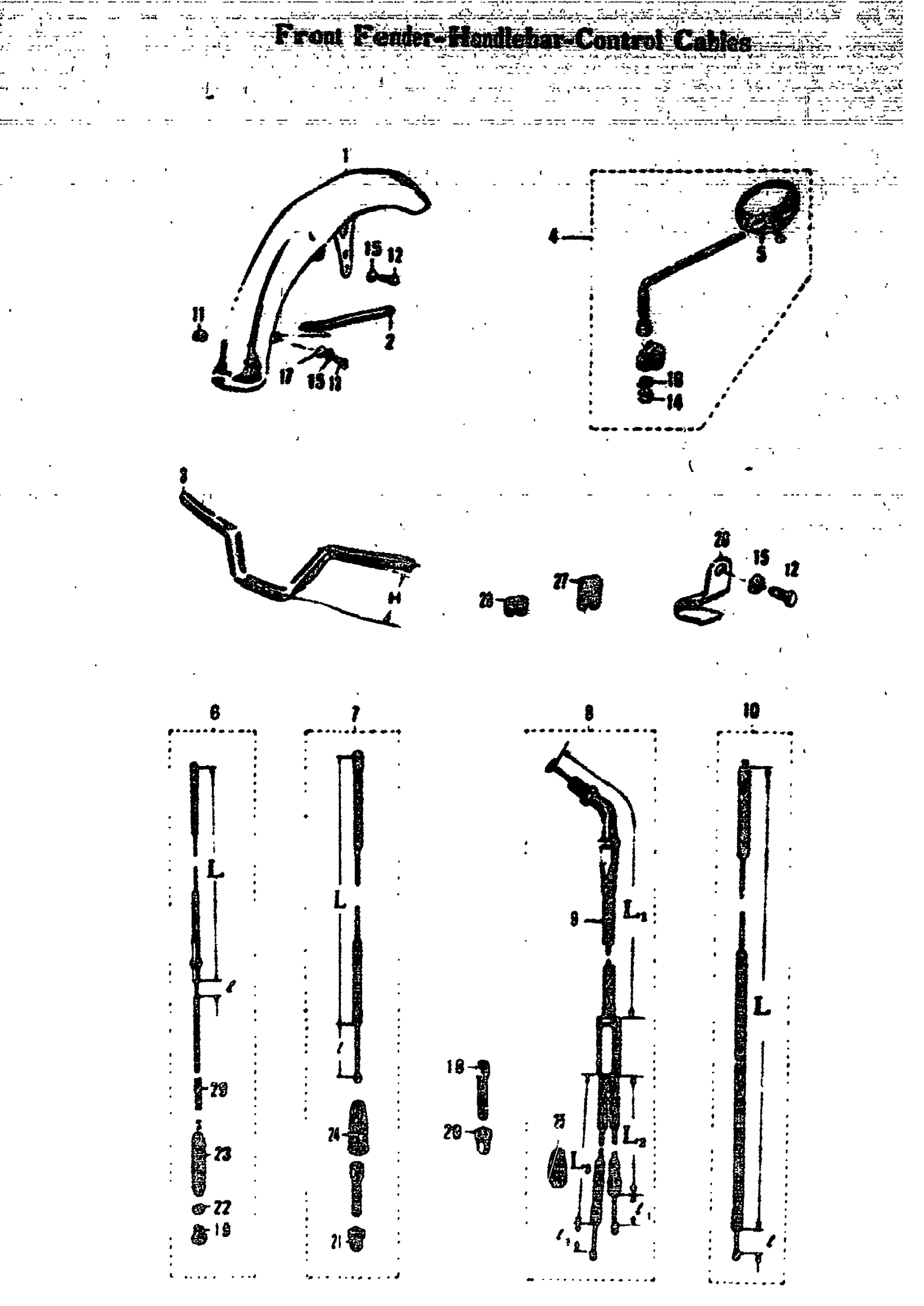

Suzuki 80K10P (1968) FRONT FENDER-HANDLEBAR-CONTROL CABLES Diagram

#

Description
Price

1

FRONT FENDER

53110-03000

Unavailable

2

FRONT FENDER BRACE

53210-01600

Unavailable

3

HANDLEBAR | 2(3.23)

56111-03000

Unavailable

4

REAR VIEW MIRROR ASS'Y

58500-03610

Unavailable

5

REAR VIEW MIRROR

56510-03611

Unavailable

6

CABLE,FR BRAKE | L.=960(37.80)l=40(1.57) This part replaces 58100-03751.

58100-03X01

Unavailable

7

CHATCH CABLE ASS'Y | 95(35.24)L.=84(3.31)

58200-03710

Unavailable

8

THROTTLE CABLE ASS'Y | L,=570(35.24),L=84(3.31)

58300-03300

Unavailable

9

HANDLEBAR SIDE THROTTLE CABLE

58310-03300

Unavailable

10

STARTER CABLE | L.=L=805(31.70) l.=66(2.60)

58410-03628

Unavailable

11

CABLE GUIDE

58621-08200

Unavailable

12

HEXAGON BOLT

01111-06108

Unavailable

13

CROWN HEAD BOLT

01211-06107

Unavailable

14

NUT This part replaces 08312-11088.

08310-00087

$2.13

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

SMALL FLAT WASHER

08322-11038

Unavailable

17

WASHER This part replaces 08322-21068.

08322-01067

$2.13

18

THROTTLE CABLE ADJUSTER

09119-08003

Unavailable

19

BRAKE CABLE ADJUSTING NUT | ISO

09150-05101

$3.04

19

BRAKE CABLE ADJUSTING NUT

09150-05001

Unavailable

20

THROTTLE CABLE ADJUSTER LOCK

09159-08003

Unavailable

21

NUT This part replaces 09159-08007.

08310-00087

$2.13

22

BRAKE CABLE LEVER PIN

09209-10001

$1.49

23

BRAKE CABLE BOOT

09287-07001

$2.00

24

CLUTCH CABLE BOOT

09287-10002

Unavailable

25

THROTTLE CABLE BOOT

09287-10003

Unavailable

26

THROTTLE CABLE CLIP HAND

09403-00019

Unavailable

27

CABLE HOLDING CLIP

09408-00001

Unavailable

28

SPEEDOMETER/BRAKE CABLE CLIP

09408-00002

$2.30
